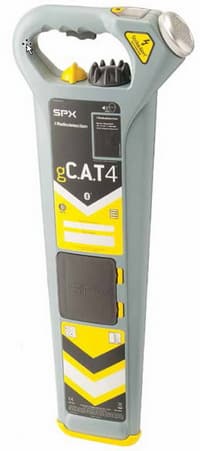

Radiodetection gCAT4+ Cable Avoidance Tool - With StrikeAlert + Depth - Datalogging - GPS - Bluetooth
The gCAT4+ with Depth and Strike Alert is a must for the following industries:
- Medium/Large Civil Engineering Contractors
- Building Contractors
- Utility Contractors
- National Companies with Multiple Outlets and/or Engineers
*Always use with a Genny - Signal Generator
Package Contents | 1 x gCAT4+ GPS, Data, SWING, StrikeAlert, CALSafe by Radiodetection |
---|
Unveil the next generation of utility location with Radiodetection's gCAT4+ GPS. This advanced digital platform is specifically engineered to offer operators the ability to locate multiple buried utilities more efficiently. With gCAT4+ GPS's unique Avoidance Mode™, users can examine an intended excavation zone for Power, Radio, and Genny signals, pinpointing and mapping the location of various utility types in one go. The device also comes equipped with advanced features like Data, SWING, StrikeAlert, and CALSafe, setting it apart in the field of utility detection.
gCAT4+ GPS's Multi-dimensional Avoidance Mode™
The gCAT4+ GPS transcends traditional utility detection methods with its groundbreaking Avoidance Mode™. This feature enables operators to scrutinize a planned excavation area for Power, Radio, and Genny signals in a single, seamless pass. The addition of a 'bargraph watermark' facilitates rapid and precise peak response identification, enabling you to focus on buried conductors effortlessly.
Advanced Features: Data, SWING, StrikeAlert, and CALSafe
The gCAT4+ GPS is not just a utility locator; it's a comprehensive solution for utility management. It comes with Data logging capabilities for detailed record-keeping, SWING Rate monitoring to encourage safer work habits, StrikeAlert to provide immediate warnings of shallow buried utilities, and CALSafe to ensure the device aligns with organizational calibration policies.
Possible Business Use Cases
- Medium/Large Civil Engineering Contractors: For large-scale infrastructure projects requiring precise utility location.
- Building Contractors: To ensure safety and compliance during the construction phase.
- Utility Contractors: For specialized utility detection and mapping.
- National Companies with Multiple Outlets and/or Engineers: To standardize utility detection methods across various locations.
gCAT4+ GPS StrikeAlert Application Scenario
Optional Accessories
While the gCAT4+ GPS is a dynamo by itself, its capabilities are substantially extended with separately available accessories. These accessories enhance the gCAT4+ GPS's features by offering additional functionalities, such as dual-frequency locate signals and power boost functions for challenging terrains.
Built-In Safety Protocols: StrikeAlert™
Radiodetection’s proprietary StrikeAlert™ warning mechanism offers an additional safety layer by delivering immediate warnings of shallow buried utilities. The gCAT4+ GPS is also designed to encourage safer and more effective work practices through its SWING™ Rate detector and Service Due date alerts.
C.A.T Manager Software Integration
gCAT4+ GPS devices are complemented by the specialized Locator Management Software suite for Windows® PCs. This software empowers facility, fleet, and project managers to minimize operational disruptions by executing software updates, initiating service requests, or generating calibration certificates. To tailor the device to specific needs or applications, the software allows for the customization of gCAT4+ GPS functionalities, such as depth prediction and alert settings. Editable fields within the software permit the storage of fleet or facility codes and additional data directly on the device, streamlining record-keeping and traceability.
Service Due Indicator and CALSafe™
Mitigate the risk of postponing a survey due to an expired calibration on a gCAT4+ GPS device. The optional CALSafe feature can be configured to restrict the device's operation beyond the calibration expiration date, thereby aligning with organizational policies. Additionally, the time span between required maintenance services can be individually adjusted up to a one-year period through the Locator Management Software.
Network Rail Approval
The gCAT4+ GPS, along with their accessories, has received Network Rail certification, making them suitable for use on the UK's national rail infrastructure.
Backward Compatibility
Consistent with Radiodetection’s commitment to enduring utility, the gCAT4+ GPS maintains backward compatibility with all C.A.T3 and Genny3 accessories, offering you more flexibility and investment safeguarding.
Enhance Safety While Excavating
The proprietary StrikeAlert™ technology from Radiodetection has been refined to minimize the occurrence of shallow cable strikes. The gCAT4+ GPS device encourages users to adopt safer and more efficient work habits through its optional SWING™ Rate monitoring feature and reminders for upcoming service dates.
Choose Radiodetection's gCAT4+ GPS
Choose Radiodetection's gCAT4+ GPS to ascend to new heights in utility detection. Whether used independently or enhanced with the separately available accessories, the gCAT4+ GPS is the pinnacle of precision, efficiency, and safety in utility locating. Upgrade your toolkit today.
Radiodetection Current CAT4 Series Comparison Chart
Cable Avoidance Tools | CAT4 | CAT4+ | gCAT4+ |
---|---|---|---|
Avoidance Mode(A) | |||
Genny signal locate (G) | |||
Power signal locate (P) | |||
Radio signal locate (R) | |||
Small Diameter Locate frequency | |||
eCert | |||
Dynamic Overload Protection | |||
Depth | |||
StrikeAlert | Option | Option | |
Data acquisition | |||
Service due indicator | |||
SWING warning | |||
CALSafe | |||
Bluetooth® Low Energy | |||
GPS/GNSS |
For a comprehensive overview of the Radiodetection range, check out our CAT4 Comparison page for more details
Locate Performance | |||
---|---|---|---|
Signal Type | Sensitivity @1M | Good Conditions | Poor Conditions |
Power Signals | 3mA | 3 | 2 |
Radio Signals | 25μA | 2 | 1 |
Genny4 Signals | 5μA | 4 | 2 |
Other Technical Specifications | |||
Dynamic Range | 120dB @ 10Hz | ||
Dynamic Overload Protection | 40dB @ 50Hz (automatic) | ||
Locate Accuracy | ±10% of depth | ||
Depth Accuracy (on an undistorted signal with no adjacent signals) | Line: 5% 0.1m to 3m (4in to 10ft) Sonde: 5% 0.1m to 7m (4in to 16ft) | ||
Operating Temperature Range | -20 to 50°C | ||
Environmental Protection | IP54 | ||
Batteries | 2 x LR20 (D) 1.5V alkaline | ||
Compatible with D-type NiMH rechargeable batteries | Yes | ||
Data Interface | USB 2.0 | ||
Recommended Service Interval | 1 Year | ||
Warranty | 12 months from purchase |
1 x gCAT4+ GPS, Data, SWING, StrikeAlert, CALSafe by Radiodetection
