Radiodetection Standard Sonde | 33 kHz Pipe Transmitter

SKU: 10/SONDE-STD-33
In Stock
New
Trace a point inside a suitable pipe or duct with a battery-powered 33 kHz sonde. The Standard Sonde has a 39 mm body diameter and M10 male end cap. Match it to the pipe, insertion rod and compatible receiver.

What's in the Box

Standard Sonde 33kHz, depth up to 5m by Radiodetection

More Info ↓

Secure checkout

Trace a point inside a suitable pipe or duct with a battery-powered 33 kHz sonde. The Standard Sonde has a 39 mm body diameter and M10 male end cap. Match it to the pipe, insertion rod and compatible receiver.

A point transmitter for pipes and ducts

The sonde is pushed or otherwise introduced into a suitable pipe, then located from the surface with a compatible receiver. It helps follow an accessible route or investigate the position of a blockage. It is not an inspection camera or a tool for clearing the blockage.

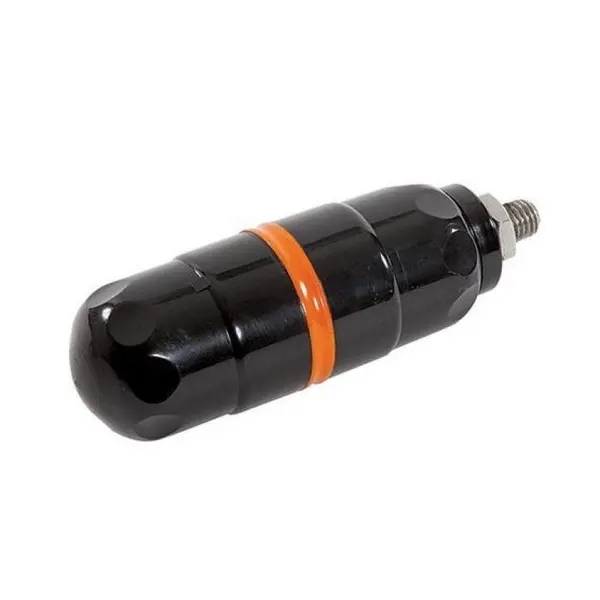

Standard 33 kHz sonde
Product listing image. Supplied items depend on the base offer and selected options.

Select the correct Standard Sonde version

This listing is the 33 kHz version. Other frequencies in the manufacturer’s Standard Sonde range must not be treated as interchangeable with the CAT4 workflow. Check clearance for the 39 mm body and the complete rod/coupling arrangement. Manufacturer locate-depth figures depend on the receiver and conditions.

Choose the compatible CAT4 locator

Use a receiver that supports this 33 kHz sonde signal. For core route tracing, compare the new CAT4 or refurbished CAT4. For estimated depth in Genny mode, compare the new CAT4+ and refurbished CAT4+. If your team also needs usage and location records, compare the new gCAT4+ and refurbished gCAT4+. New or refurbished condition does not add a feature that the locator model lacks.

Build a compatible locating system

Match the transmitter, receiver, signal frequency and mechanical connection to the application. Use compatible equipment together and follow the manufacturer instructions and your site’s safe system of work.

Buying the locator and transmitter together?

Compare the new CAT4 and Genny4 kit with bag or refurbished CAT4 and Genny4 kit. For estimated depth, consider the CAT4+ and Genny4 kit; for usage and location records, consider the gCAT4+ and Genny4 kit. Review the included items first so you only add accessories you need.

Manufacturer documents
