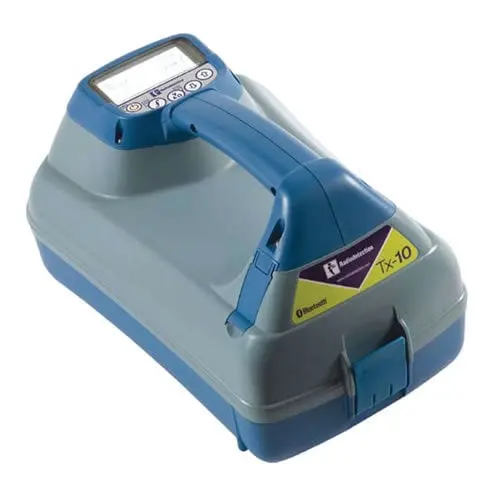

Radiodetection TX10 Transmitter

In the world of utility tracing and fault detection, the TX10 Transmitter stands as a paragon of innovation and reliability. Designed to seamlessly integrate with Radiodetection’s advanced high-precision cable and pipe locators, including the RD8200, RD7200, and Marker Locator ranges, the TX10 Transmitter is engineered to meet the rigorous demands of tracing utilities through today's intricate underground infrastructure. This comprehensive guide aims to provide an in-depth look into the features, capabilities, and customization options of the TX10 Transmitter.

Select Your Choice of TX10 Transmitters in the Options Section

Standard Transmitters

• 10/TX10-UK: With Standard Direct Connection Lead
• 10/TX10-BAN-UK: With Insulated plug and Socket (Banana Connector) Direct Connection Lead

Transmitter With Charge Pack

• 10/TX10-R-UK: With Standard Direct Connection Lead, Complete with Charge Pack (Li-ion Rechargeable battery Pack and Mains + Automotive Charger)
• 10/TX10-R-BAN-UK: With Insulated plug and Socket (Banana Connector) Direct Connection Lead, Complete with Charge Pack (Li-ion Rechargeable battery Pack and Mains + Automotive Charger)

Transmitter With Mains Charger

• 10/TX10-RM-UK: With Standard Direct Connection Lead, Complete with Mains Charger (Li-ion Rechargeable battery Pack and Mains Charger)
• 10/TX10-RM-BAN-UK: With Insulated plug and Socket (Banana Connector) Direct Connection Lead, Complete with Mains Charger (Li-ion Rechargeable battery Pack and Mains Charger)

Transmitter With Automotive Chargers

• 10/TX10-RA-UK: With Standard Direct Connection Lead, Complete with Automotive Charger (Li-ion Rechargeable battery Pack and Automotive Charger)
• 10/TX10-RA-BAN-UK: With Insulated plug and Socket (Banana Connector) Direct Connection Lead, Complete with Automotive Charger (Li-ion Rechargeable battery Pack and Automotive Charger)

Key Features

iLOC Remote Control

The TX10 Transmitter comes equipped with iLOC, an advanced Bluetooth® link between the RD8200 locator and the transmitter. This feature allows you to control the locate signal’s power and frequency from up to 1400’ / 450m away, enabling less time walking and more time locating.

90V Maximum Output

The high voltage output ensures that you can get a locatable signal onto even high impedance lines like telephone pairs, making your tracing tasks more efficient.

Fault Find

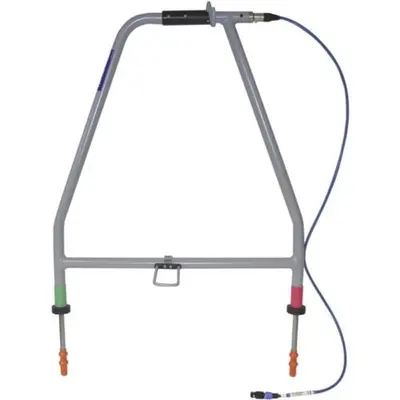

The TX10 Transmitter allows you to apply a Fault-Find signal with the use of an accessory A-frame to detect and pinpoint insulation faults, offering a comprehensive solution for utility management.

SideStepAuto

This feature recommends a general-purpose locate frequency for the intended locate task by measuring the impedance of the target cable or pipe. SideStepAuto not only improves locate accuracy but also extends battery life.

Automatic Impedance Matching

The TX10 Transmitter is capable of automatically matching its impedance to that of your target cable, ensuring that your locate signal is transmitted as far as possible.

Lithium-Ion Battery Pack Option

The Li-ion rechargeable battery pack delivers extended run-time, lighter weight, and superior cold-weather performance compared to standard alkaline batteries. This eliminates the need for operators to replace, manage, and recycle alkaline battery cells, thereby reducing the associated costs, workload, and environmental burden.

Built for On-Site Use – IP65

The TX10 Transmitter is housed in a shock-resistant, ingress-protected casing that protects against knocks, drops, water, and dust, making it ideal for rugged on-site use.

ECO Mode

When a low battery condition is detected, the transmitter gradually reduces the power output and provides audio and visual warnings, thereby extending the alkaline battery life.

Multimeter Function

This feature allows you to measure output voltage, line voltage, current, impedance, and power. It also enables you to characterize faults on the target line before beginning a survey.

Accessories to Optimize the System to Your Needs

The TX10 Transmitter offers a range of accessories that can be customized to meet your specific requirements, enhancing the system's overall performance and utility.

Conclusion

The TX10 Transmitter is a versatile, robust, and highly customizable solution designed to meet the challenges of modern utility tracing and fault detection. With its array of features and options, it stands as a must-have tool for professionals in the field. Choose the TX10 Transmitter for a seamless, efficient, and reliable utility tracing experience.
