Radiodetection A-Frame with A-Frame Lead | Cable Fault and Pipeline Coating Defect Detector

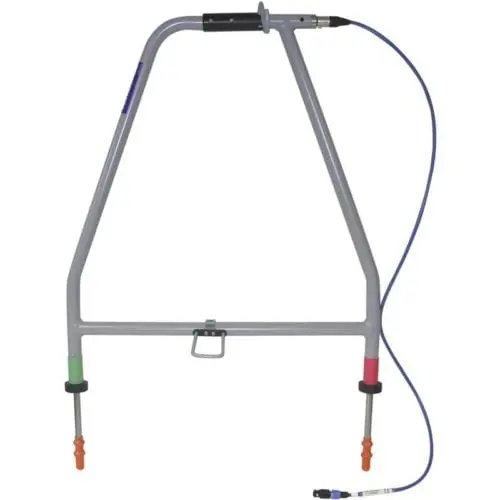

The Radiodetection A-Frame is an essential diagnostic accessory for utility professionals, specifically engineered for detecting faults in cables and identifying coating defects on underground pipelines. When integrated with a compatible precision locator, the A-Frame enables technicians to accurately pinpoint the location and severity of insulation breaches.

What locators are compatible with the Radiodetection A-Frame?

This accessory is designed for seamless compatibility with RD8100, RD7KTL, RD7KPL, or RD8KPL(B) locators. It connects via the included A-Frame Lead to provide real-time data visualization on the handset's interface.

How is the Fault Find signal generated for the A-Frame?

To successfully locate a defect, the use of either a Tx-3(B) or Tx-10(B) transmitter is required to generate a specific Fault Find signal. Once the signal is established, the A-Frame quantifies the magnitude of the fault and provides clear directional indicators.

Is the A-Frame suitable for pipeline maintenance?

Yes, it is a primary tool for identifying coating defects on pipelines, allowing operators to monitor the integrity of protective layers. The system displays technical fault data, ensuring that maintenance teams can prioritize repairs based on quantified magnitude.

Compatible Accessories

• RD8100 Locator: Radiodetection RD8100
• Tx-10(B) Transmitter: Radiodetection TX10B Transmitter
• Custom Storage Bag: Radiodetection A Frame Bag (10/RX-AFRAME-BAG)
• Replacement Lead: Radiodetection A-Frame Lead
