Ex-Display Radiodetection RD8200 Cable and Pipe Locator

Separate the target line in congested networks

Investigate complex utility networks with 21 active locating frequencies, Current Direction and survey measurements.

Current Direction compares the direction of a suitable transmitter signal to help distinguish a target line from parallel services. Peak+, Broad Peak and the other locating modes give trained operators different ways to assess the response.

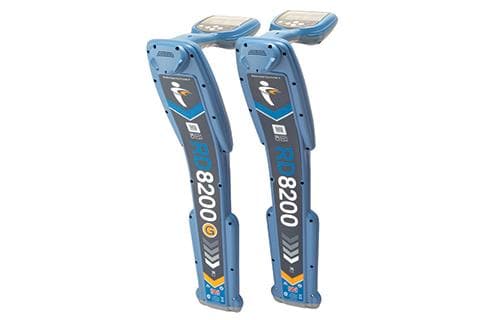

Ex-display RD8200 receiver

Ex-display RD8200 receiver with a 12-month warranty and 12-month calibration. A transmitter is separate.

Build the system around your task

This is a receiver offer. A transmitter supplies the applied signal for active tracing; it is separate unless expressly included in the box contents. A bag and rechargeable-power accessories are optional paid extras.

Locating, GPS logging or integrated mapping

RD7200 covers general utility locating with eight active frequencies. RD8200 adds broader frequency choice and Current Direction. RD8200G adds built-in GPS usage logging. RD8200SG integrates survey-grade GNSS. GPS usage records and corrected RTK positioning serve different purposes.

Apply and receive the right signal

For active tracing, transmitter and receiver must use a supported common frequency. Tx5 provides signal application and fault-finding signals; Tx10 and Tx10B also support Current Direction with a CD-capable receiver.

A 100 mm transmitter clamp applies a signal to a suitable cable. A 100 mm locator clamp receives the response to help investigate individual utilities. These clamps connect to different instruments. The direct-connection kit brings together the listed signal-connection accessories.

Fault finding and field accessories

For cable-sheath or pipeline-coating fault investigations, use the A-Frame with lead with a receiver and transmitter that both support Fault Find. It is a separate accessory unless itemised as included. The soft locator/transmitter bag keeps compatible equipment together in transit.

Rechargeable receiver power

Where not included in this offer, the compatible receiver Li-ion pack and matching mains charger provide a rechargeable option. Receiver and transmitter batteries are separate systems.

Use readings as part of a safe locating method

A locator detects electromagnetic responses. A silent or inconsistent reading does not prove that an area has no buried services. Compare signal behaviour, use the appropriate methods and follow your safe excavation procedure. Depth estimates do not establish that mechanical excavation is safe.

Included warranty and calibration

A 12-month warranty and 12-month calibration are included as standard.

Questions about this offer

RD7200 and RD8200 range overview

▶Play manufacturer video
Loads YouTube after you choose to play

Radiodetection introduces the RD7200 and RD8200 locator range. Available features vary by model; the condition and supplied package for this offer are listed above.

Watch on YouTube · Radiodetection

Manufacturer documents

• Radiodetection RD8200 and RD8200G brochure (V6)
• Radiodetection RD8200 range technical specifications (V7)
• Radiodetection RD8200 range operating manual (V7)
