New Radiodetection RD8200G Cable and Pipe Locator

SKU: 10/RD8200G-UK
In Stock
New

New RD8200G. Combine RD8200 locating functions with built-in GPS and automatic usage logging for later review.

What's in the Box

  • RD8200G Cable and Pipe Locator by Radiodetection
  • 2 D-Cell Battery Tray

More Info ↓

Secure checkout

Precision locating with GPS usage records

Combine RD8200 locating functions with built-in GPS and automatic usage logging for later review.

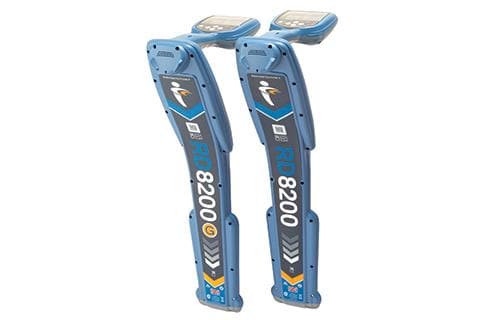

Radiodetection RD8200G representative product image
Representative RD8200G model views; one GPS-enabled receiver supplied.

Operating records help supervisors review how and where locating work was carried out. Current Direction and Power Filters support signal investigation; GPS usage records support documentation and training.

Build the system around your task

This is a receiver offer. A transmitter supplies the applied signal for active tracing; it is separate unless expressly included in the box contents. A bag and rechargeable-power accessories are optional paid extras.

Locating, GPS logging or integrated mapping

RD7200 covers general utility locating with eight active frequencies. RD8200 adds broader frequency choice and Current Direction. RD8200G adds built-in GPS usage logging. RD8200SG integrates survey-grade GNSS. GPS usage records and corrected RTK positioning serve different purposes.

GPS usage logging and mapping

Built-in GPS usage records support documentation and review. They do not make this receiver an integrated survey-grade RTK system. High-accuracy utility mapping needs a suitable external positioning solution or an integrated mapping model with its correction requirements met.

Apply and receive the right signal

For active tracing, transmitter and receiver must use a supported common frequency. Tx5 provides signal application and fault-finding signals; Tx10 and Tx10B also support Current Direction with a CD-capable receiver.

A 100 mm transmitter clamp applies a signal to a suitable cable. A 100 mm locator clamp receives the response to help investigate individual utilities. These clamps connect to different instruments. The direct-connection kit brings together the listed signal-connection accessories.

Fault finding and field accessories

For cable-sheath or pipeline-coating fault investigations, use the A-Frame with lead with a receiver and transmitter that both support Fault Find. It is a separate accessory unless itemised as included. The soft locator/transmitter bag keeps compatible equipment together in transit.

Rechargeable receiver power

Where not included in this offer, the compatible receiver Li-ion pack and matching mains charger provide a rechargeable option. Receiver and transmitter batteries are separate systems.

Use readings as part of a safe locating method

A locator detects electromagnetic responses. A silent or inconsistent reading does not prove that an area has no buried services. Compare signal behaviour, use the appropriate methods and follow your safe excavation procedure. Depth estimates do not establish that mechanical excavation is safe.

Questions about this offer

Is a transmitter included?

This is a receiver offer. A transmitter is separate unless itemised in the selected package.

Does built-in GPS mean centimetre mapping?

No. Onboard GPS usage logging and survey-grade RTK positioning are different functions. High-accuracy mapping requires a suitable positioning solution and correction service.

RD7200 and RD8200 range overview

Rd8200g rearPlay manufacturer video
Loads YouTube after you choose to play

Radiodetection introduces the RD7200 and RD8200 locator range. Available features vary by model; the condition and supplied package for this offer are listed above.
