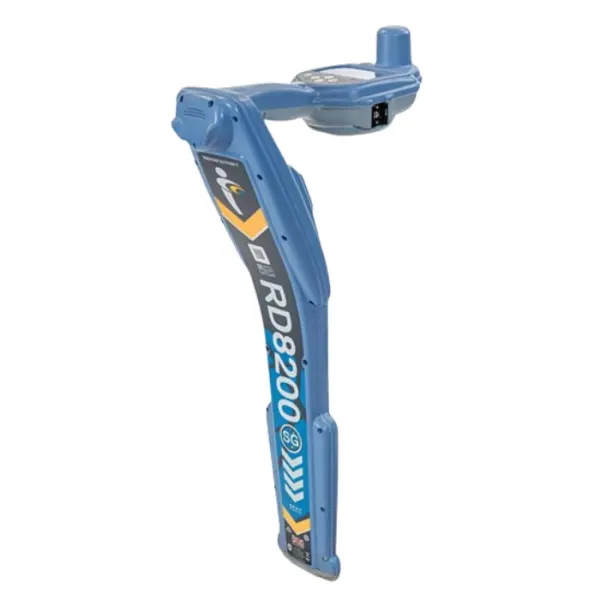

New Radiodetection RD8200SG Survey-Grade GNSS Locator
Read the transcript
New Radiodetection RD8200SG receiver for precision utility locating and survey-grade GNSS mapping. The battery, mains charger, mains lead and USB-C lead are included. The transmitter, carry bag and phone holder are separate. Mapping requires a compatible phone and app, suitable corrections, data connectivity and satellite reception. Position accuracy is separate from utility locating accuracy. Extended warranty is an optional paid selection. Follow a complete locating and safe excavation procedure.
New RD8200SG receiver with Li-ion battery, mains charger, mains lead and USB-C lead. Integrated survey-grade GNSS supports utility mapping with a compatible app and corrections. Transmitter separate.
What's in the Box
- RD8200SG locator.
- USB-C lead.
- Li-ion rechargeable battery pack.
- Mains charger.
- Mains lead.
Phone, phone holder, mapping app and correction service are separate.
Locate utilities and collect survey-grade positions
Combine precision cable and pipe locating with integrated survey-grade GNSS in one receiver.
The integrated GNSS antenna and automatic ground offset simplify utility point collection. Use a compatible mapping app and correction service to record positions as part of your locating workflow.
Your included package
The base offer includes RD8200SG locator, USB-C lead, Li-ion rechargeable battery pack, Mains charger, Mains lead. The carry bag and extended warranty are optional paid selections. Phone, phone holder, mapping app and correction service are separate.
Locating, GPS logging or integrated mapping
RD7200 covers general utility locating with eight active frequencies. RD8200 adds broader frequency choice and Current Direction. RD8200G adds built-in GPS usage logging. RD8200SG integrates survey-grade GNSS. GPS usage records and corrected RTK positioning serve different purposes.
What survey-grade positioning requires
The manufacturer specifies RTK position accuracy of 0.01 m + 1 ppm CEP under its stated conditions. Achievable positioning depends on corrections, satellite visibility, geometry and site conditions. GNSS positioning accuracy is separate from the accuracy of locating the buried service.
Apply and receive the right signal
For active tracing, transmitter and receiver must use a supported common frequency. Tx5 provides signal application and fault-finding signals; Tx10 and Tx10B also support Current Direction with a CD-capable receiver.
A 100 mm transmitter clamp applies a signal to a suitable cable. A 100 mm locator clamp receives the response to help investigate individual utilities. These clamps connect to different instruments. The direct-connection kit brings together the listed signal-connection accessories.
Fault finding and field accessories
For cable-sheath or pipeline-coating fault investigations, use the A-Frame with lead with a receiver and transmitter that both support Fault Find. It is a separate accessory unless itemised as included. The soft locator/transmitter bag keeps compatible equipment together in transit.
Use readings as part of a safe locating method
A locator detects electromagnetic responses. A silent or inconsistent reading does not prove that an area has no buried services. Compare signal behaviour, use the appropriate methods and follow your safe excavation procedure. Depth estimates do not establish that mechanical excavation is safe.
Questions about this offer
Is a transmitter included?
No. This offer includes the receiver and the listed base-package items; a transmitter is separate.
What is needed for RTK mapping?
A suitable correction service, supported app, compatible phone or tablet and data connectivity, with suitable satellite reception. RTK accuracy depends on the manufacturer’s measurement conditions.
Is a correction subscription included?
A compatible mapping app, correction subscription and data connection are separate requirements.
Are the battery and mains charger included?
Yes. RD8200SG locator, USB-C lead, Li-ion rechargeable battery pack, Mains charger, Mains lead. The carry bag and extended warranty are optional paid selections. Phone, phone holder, mapping app and correction service are separate.
RD8200SG locating and mapping
Radiodetection demonstrates the RD8200SG mapping workflow. A compatible app and correction service are required; supplied equipment is listed in the box contents above.
