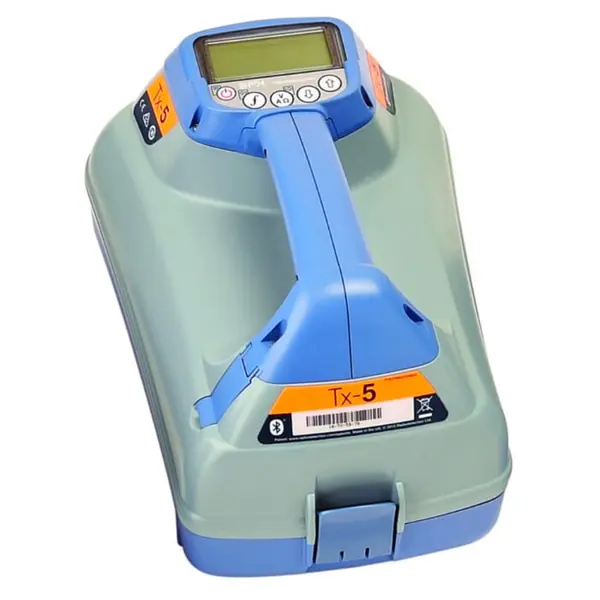

New Radiodetection Tx5 signal transmitter
New Radiodetection Tx5 signal transmitter with 5 W maximum output. Apply a locating signal by direct connection, compatible clamp or induction; receiver and accessory compatibility still apply.
What's in the Box
- Tx5 transmitter
- Ground Stake
- Direct Connect Leads
- Earth Reel
- Batteries
Put a usable signal onto the target utility
The Tx5 applies a traceable signal to a suitable buried cable or conductive pipe. Direct connection, clamp application and induction provide different ways to establish the signal for a compatible receiver.
Select the frequency and output for the connection and service. More transmitter power does not guarantee a locating distance or remove the need to investigate signal distortion.
Match the receiver and locating task
Use RD7200 for general precision locating or RD8200 when its broader frequency and Current Direction functions suit the task. Tx5 does not generate Current Direction; an appropriate Tx10 signal is required for CD.
Direct connection, clamp and fault finding
The transmitter connection kit brings together a direct lead, earth reel, earth stake and magnet. A 100 mm transmitter clamp provides clamp signal application. The A-Frame requires both receiver and transmitter to support Fault Find.
Questions about this offer
Is this a receiver?
No. This is a signal transmitter. A compatible receiver detects the signal along the utility; it is a separate instrument.
Does higher output guarantee a deeper locate?
No. Results depend on the utility, connection, frequency, ground conditions, interference and receiver. Use an appropriate output and compare the response.
Can it support A-Frame fault finding?
Yes, with the appropriate fault-find signal, a compatible fault-find receiver and the A-Frame. Tx5 does not generate Current Direction.
Tx transmitter direct-connection guide
Radiodetection demonstrates the direct-connection method with a compatible Tx transmitter. Choose the common operating frequency required by the receiver and transmitter; supplied accessories are listed above.
Watch on YouTube · Radiodetection
