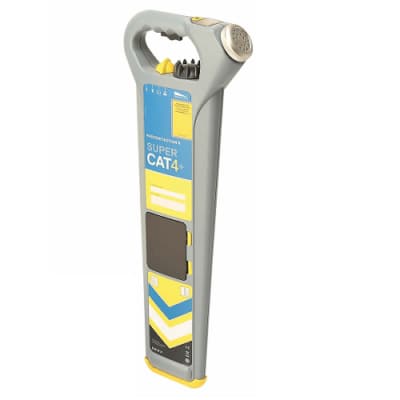

Radiodetection SuperCAT4+ Locator (Metric or Imperial)
Icon | Label | Download |
---|---|---|
SuperCAT+ User Guide | Download |
Key Features of the SuperCAT4+ Locator for Water and Drain Pipes
- Wide Range of Sonde Frequencies: Optimized for detecting various types of water and drain pipes, even in electronically noisy environments.
- Flexitrace Compatibility: Enables tracing of non-metallic pipes, often a challenging task for standard locators.
- Metric and Imperial Models: Customizable units of measurement cater to specific market needs and applications.
Package Contents | 1 x SuperCAT4+ Locator by Radiodetection |
---|
The SuperCAT4+ is a state-of-the-art cable and pipe locator designed to meet the demanding needs of the construction industry. With its advanced features, it offers a comprehensive set of active frequencies to support the detection and tracing of different cable types in varied environmental conditions. In this article, we'll delve into the features, applications, and safety measures of the SuperCAT4+.
Features of SuperCAT4+
Dynamic Overload Protection
- What it is: This feature filters out high levels of electrical interference, often found around substations and near high-voltage transmission cables.
- Why it's important: It enables the SuperCAT4+ to continue locating where other units struggle.
StrikeAlert™
- What it is: StrikeAlert warns the user of the possible presence of shallow cables and utility lines in both Power and Active Line modes.
- Why it's important: It helps in preventing cable strikes caused by unexpectedly shallow cables.
TRUDEPTH™
- What it is: Indicates depth when the locator is oriented correctly above the target cable, pipe, or sonde.
- Why it's important: It provides the most accurate reading for depth measurement.
Real Sound
- What it is: The audio signals emitted are derived from the signals detected, helping in the identification of target utilities.
- Why it's important: It aids in differentiating closely co-located utilities.
Applications of SuperCAT4+
Locating Pipelines with Cathodic Protection System
- How it works: The CPS model can locate and trace the rectified signal without needing an additional transmitter.
- Who it's for: Ideal for oil and gas pipes using a Cathodic Protection System.
Finding Water and Drain Pipes
- How it works: The S model locates a range of sonde frequencies that can be matched to the challenges of finding water and drain pipes.
- Who it's for: Useful for tracing deep cast-iron pipes and distinguishing pipes in an electronically noisy urban environment.
Detecting a Broad Range of Utilities
- How it works: SuperCAT4+ is compatible with all T1 Transmitters, making it versatile for detecting a wide range of utilities.
- Who it's for: Ideal for construction industries that require multi-utility locating.
Safety Measures
All SuperCAT4+ models come with features designed to aid safe working practices. These include:
- Dynamic Overload Protection
- StrikeAlert™
- TRUDEPTH™
Conclusion
The SuperCAT4+ is a versatile and reliable tool for locating and tracing various types of cables and pipes. Its advanced features like Dynamic Overload Protection and StrikeAlert™ make it a must-have for professionals in the construction industry. With its focus on safety and accuracy, the SuperCAT4+ stands out as an exceptional choice for cable and pipe locating tasks.
SuperCAT4+CPS | SuperCAT4+S | SuperCAT4+ | |
---|---|---|---|
StrikeAlert | ✔ | ✔ | ✔ |
Depth Readout | ✔ | ✔ | ✔ |
Dynamic Overload Protection | ✔ | ✔ | ✔ |
Passive Modes | |||
CPS Locate | ✔ | - | - |
Radio Mode | ✔ | ✔ | ✔ |
Power Mode 50Hz /60Hz | ✔ | ✔ | ✔ |
Sondes | |||
Sonde 512/640Hz | - | ✔ | ✔ |
Sonde 8kHz | - | ✔ | - |
Sonde 33kHz | - | ✔ | ✔ |
Active Locating Using T1 Transmitter | |||
Direct Connection | |||
512/640Hz | ✔ | - | ✔ |
8kHz | ✔ | - | ✔ |
33kHz | ✔ | ✔ | ✔ |
65kHz | - | - | ✔ |
Super HF 131kHz | - | - | ✔ |
Induction | |||
8kHz | ✔ | - | ✔ |
33kHz | ✔ | ✔ | ✔ |
65kHz | - | - | ✔ |
1 x SuperCAT4+ Locator by Radiodetection
