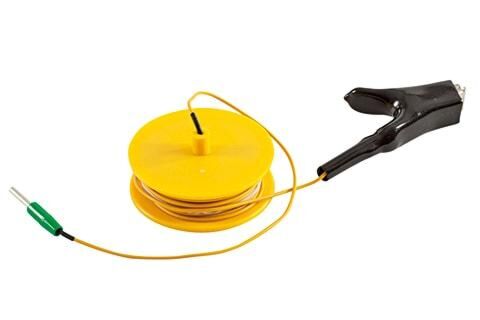

Radiodetection Earth Reel | 10m Grounding Extension | Earth Return Path Optimization

The Radiodetection Earth Reel is a specialized accessory designed to improve signal circuit integrity during direct connection utility locating. When the nearby soil is unsuitable for grounding or an earth point is physically unreachable, this extension provides the necessary reach to establish a reliable return path for the transmitter signal.

How does the earth reel improve signal circuit quality?

By providing a 33-foot (10-meter) extension, it allows operators to reach conductive soil or established grounding points, ensuring a low-impedance earth return path for the signal. This results in a cleaner, more detectable signal on the target utility for the locator.

What are the benefits of the integrated spool design?

The cable is neatly wound on a durable spool, which prevents tangling and allows for rapid deployment and retrieval in the field. This organization is critical for maintaining equipment longevity and efficiency during high-volume surveys.

Is this earth reel compatible with standard transmitter leads?

Yes, it is purpose-built to interface with the earth return connector of standard Radiodetection direct connection leads. It serves as a seamless bridge between the transmitter lead and the earth stake in challenging terrain.

Compatible Accessories

• Establish a secure ground point with the Radiodetection Spiral Earth Stake.
• Use in conjunction with the Radiodetection Direct Connection Lead for signal application.
• Maintain organized storage with the Radiodetection Accessory Tool Bag.
