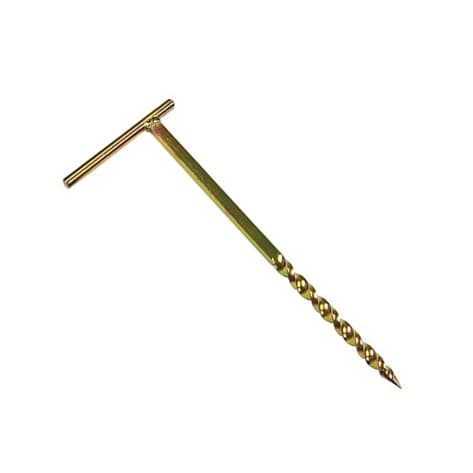

Radiodetection Spiral Earth Stake | Transmitter Signal Return Path | Durable Metallic Grounding

The Radiodetection Spiral Earth Stake is a critical component for establishing a high-integrity electrical connection with the ground during utility surveys. Manufactured from high-grade durable metal, this stake is designed to provide an effective earth return path for the transmitter signal, which is essential for accurate electromagnetic locating and depth measurement.

How does the Radiodetection Spiral Earth Stake improve signal quality?

By establishing a consistent earth return path, the stake ensures that the transmitter signal flows efficiently through the targeted utility. This reduces signal noise and provides stable electromagnetic fields for more precise location data.

What materials are used in the construction of this earth stake?

The stake is constructed from heavy-duty metal, specifically chosen for its conductive properties and physical resilience. This allows for repeated ground insertion in varied soil conditions without compromising the structural or electrical integrity of the accessory.

Why is the spiral design beneficial for ground insertion?

The metallic spiral design increases the surface area contact between the stake and the soil, resulting in a more reliable electrical bond. This geometry also makes it easier to thread the stake into compacted or hard ground compared to traditional straight stakes.

Accessories & Compatibility

• Standard Companion: Used in conjunction with the Radiodetection Earth Reel for extended range grounding.
• Transmitter Support: Compatible with the Radiodetection TX10 Transmitter and the Radiodetection TX5 Transmitter.
• Precision Locators: Optimized for use with the Radiodetection RD8200 Precision Cable Locator and the Radiodetection RD7200 Precision Cable Locator.
• Alternate Grounding: For C.A.T range users, see the Radiodetection Genny Earth Stake.
