Radiodetection S6 Microsonde Kit | 6.4mm Ultra-Slim 33kHz Sonde | Duct Blockage Detection

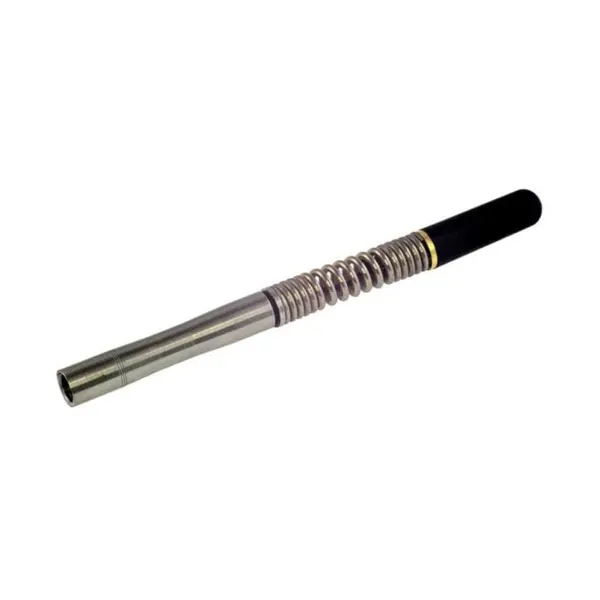

The Radiodetection S6 Microsonde Kit is an ultra-compact transmitter solution specifically engineered for utility operators needing to identify and trace blockages in small-diameter buried pipes and microducting. Featuring an industry-leading 6.4mm (0.25") diameter, this sonde is uniquely suited for fiber-optic ducting where standard sondes cannot pass. It operates at a frequency of 33kHz (32768Hz), providing a continuous locate signal that can be detected by precision locators to map underground routes or pinpoint obstructions.

How does the Radiodetection S6 identify blockages in small ducts?

The sonde is attached to a push rod or cable and inserted into the ducting; as it travels, its path is monitored by a receiver that calculates the sonde's exact position. If an obstruction is met, the signal allows the operator to determine both the precise location and the depth of the blockage for targeted excavation.

What are the battery specifications for the S6 Microsonde?

Powered by a Lithium Ion battery, the S6 provides approximately 10 hours of usage under normal conditions, with an integrated LED at the tip that flashes to indicate active power. The device is automatically activated upon battery insertion and the mounting of the connector, ensuring ease of use in the field.

What accessories are included in the S6 Microsonde Kit?

The comprehensive kit provides everything required for immediate deployment, including the S6 sonde, two batteries, a flexible adaptor, and a mounting connector. All components are housed within a protective carry case for secure transport and storage between utility survey tasks.

• Ensure continuous operation with a Radiodetection Pack of 10 Microsonde Batteries.
• Deploy the sonde through complex duct networks using the Radiodetection Flexrod 3/8inch, 200' (9mm 60m).
• Track the signal accurately using the Radiodetection RD8200 Precision Cable Locator.
