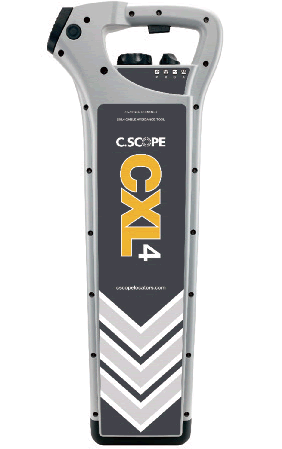

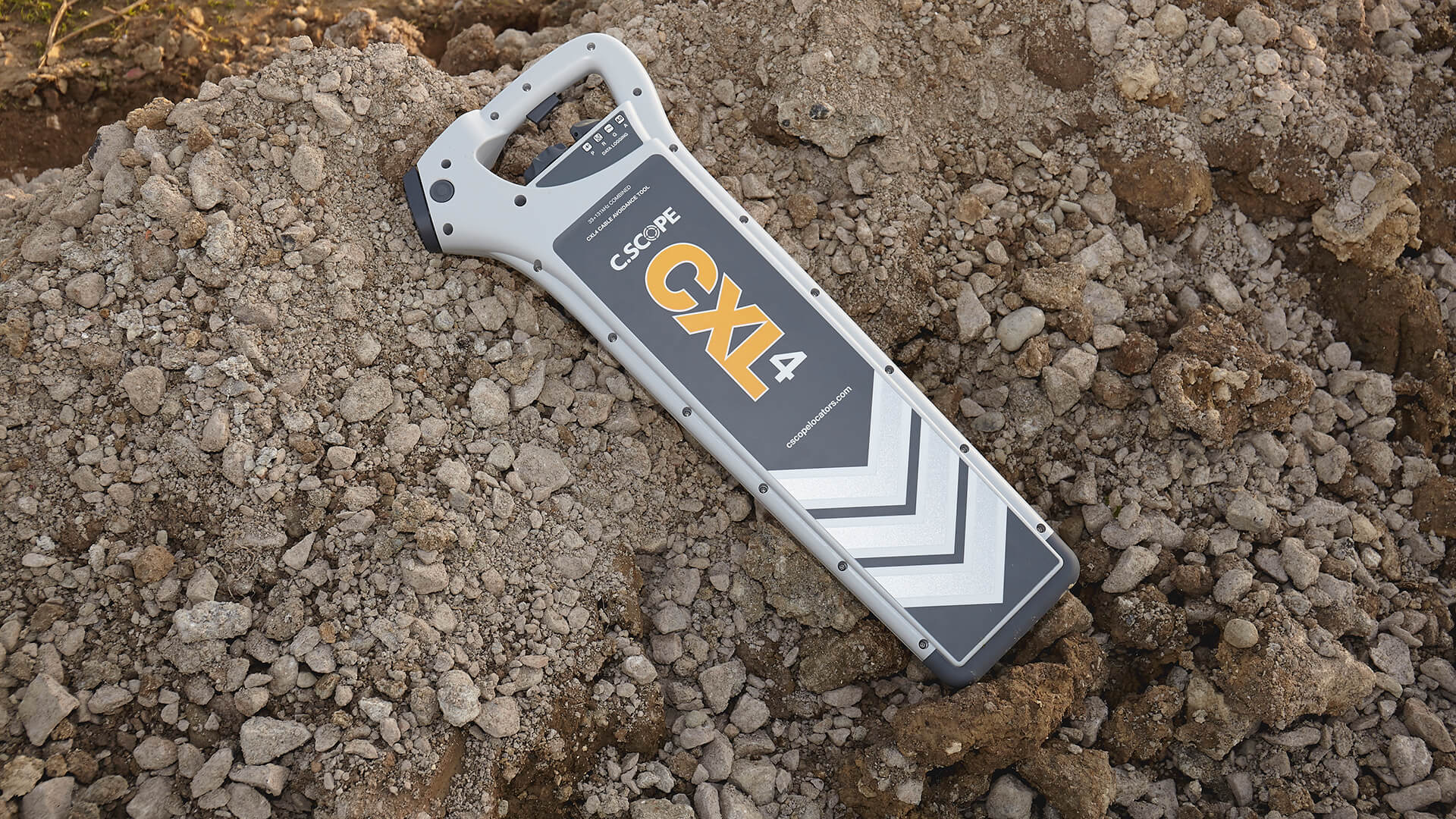

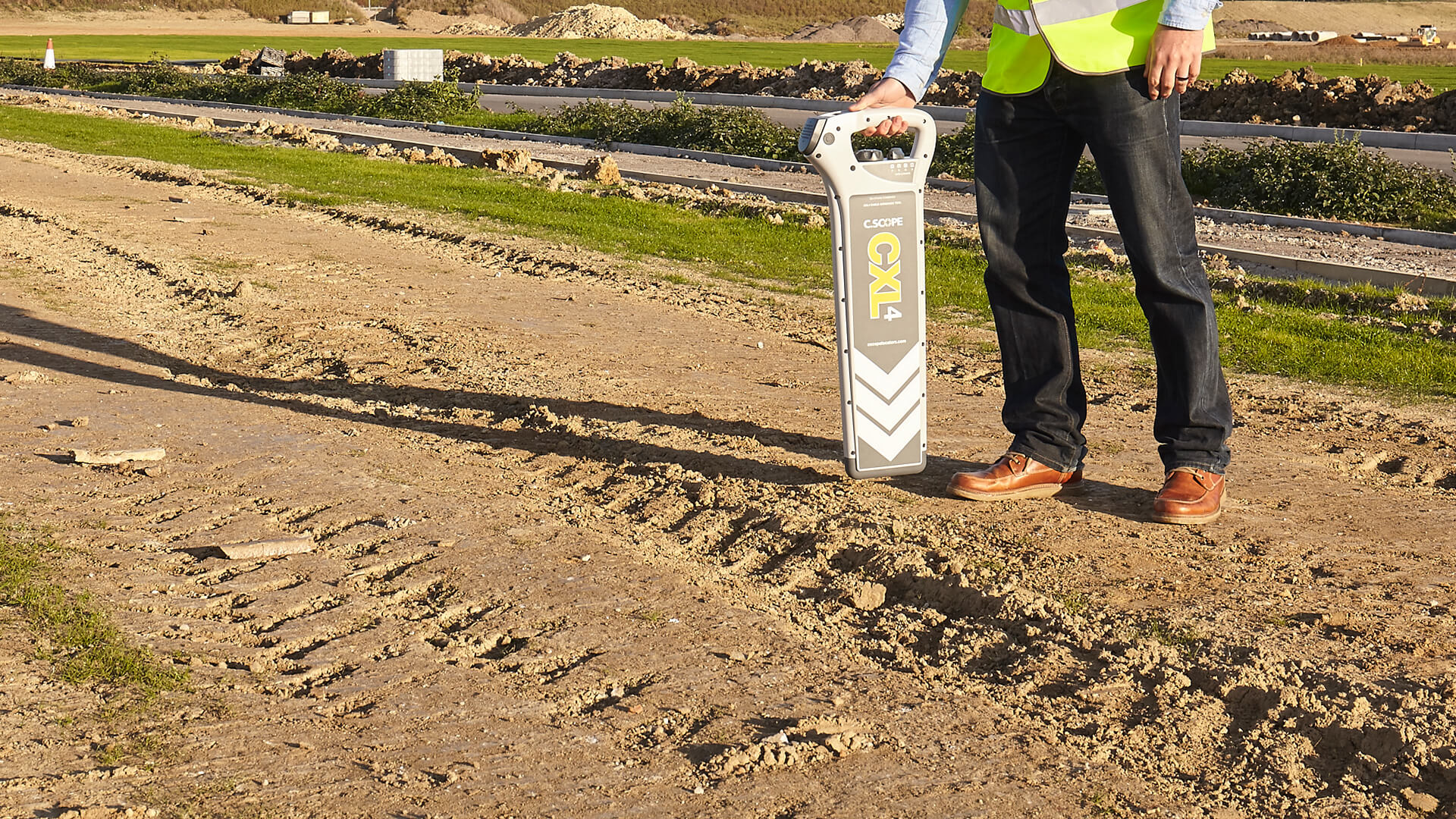

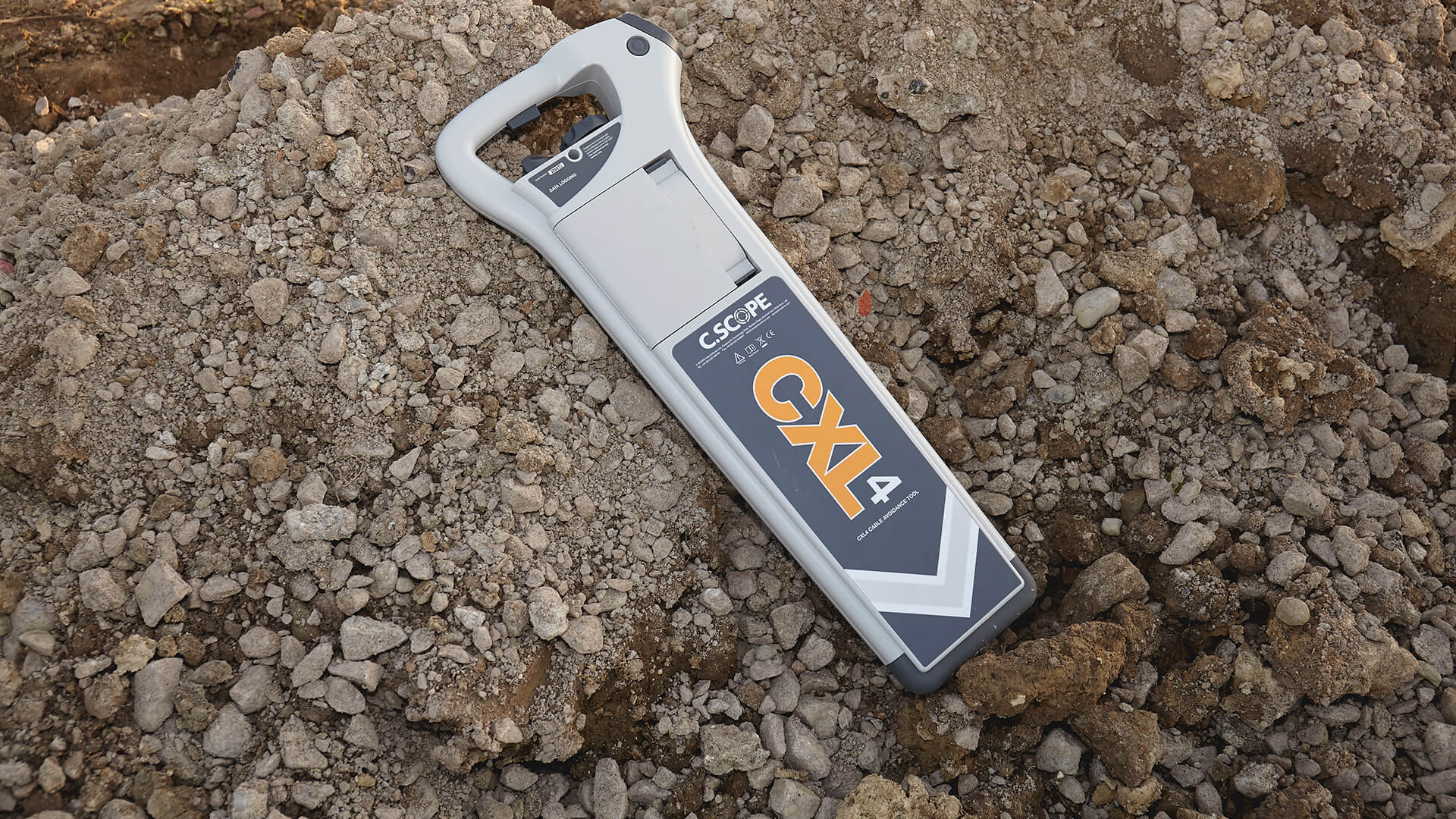

C.Scope CXL4-DBG Data Logging, GPS Cable Avoidance Tool
Cable and Pipe Detection with CXL4-DBG
- Four-Mode Enhanced Detection: Delivers superior utility locating in four crucial modes—Power, Radio, Generator, and AllScan—making it versatile for a range of detection needs.
- AlarmZone™ Alerts: Proactively notifies users of shallow buried utilities to minimize risks during excavation.
- Dynamic Swing Sensor: An added layer of accuracy, this feature warns operators if excessive swinging may compromise detection accuracy.
- Bluetooth™ Connectivity and Data Logging: Enables seamless transfer of a year's worth of data to devices for in-depth analysis, enhancing operational intelligence.
- Built-in GPS Tracking: Allows for geo-tagging of utility detection activities, compatible with Google Earth™ or Google Maps™, for comprehensive asset management.
Package Contents | 1 x CXL4-DBG Data Logging Cable Avoidance Tool by C.Scope |
---|
Introducing CXL4-DBG, the gold standard in utility detection and buried asset management. With advanced features like data logging, Bluetooth™ connectivity, and GPS, the CXL4-DBG offers unmatched performance and versatility.
Enhanced Detection Capabilities: The Core of CXL4-DBG
Four-Mode Detection
With the CXL4-DBG, you gain access to enhanced detection across four core modes: Power, Radio, Generator, and AllScan. Whether you’re locating gas lines or fiber-optic cables, the CXL4-DBG makes the job easier and safer.
Alarm Zone Alert System
CXL4-DBG’s AlarmZone™ feature keeps you alert to shallow utilities, reducing the likelihood of expensive or dangerous strikes during excavation.
Minimizing Operator Error: Dynamic Swing Sensor
To further optimize performance, the CXL4-DBG features a Dynamic Swing Sensor, notifying operators if they are potentially compromising locate accuracy through excessive swinging.
Smart Features Packed into CXL4-DBG
PeakHold Precision
PeakHold functionality on the CXL4-DBG enables operators to confidently identify the precise location of underground utilities, offering an edge in detection accuracy.
Data Logging and Connectivity

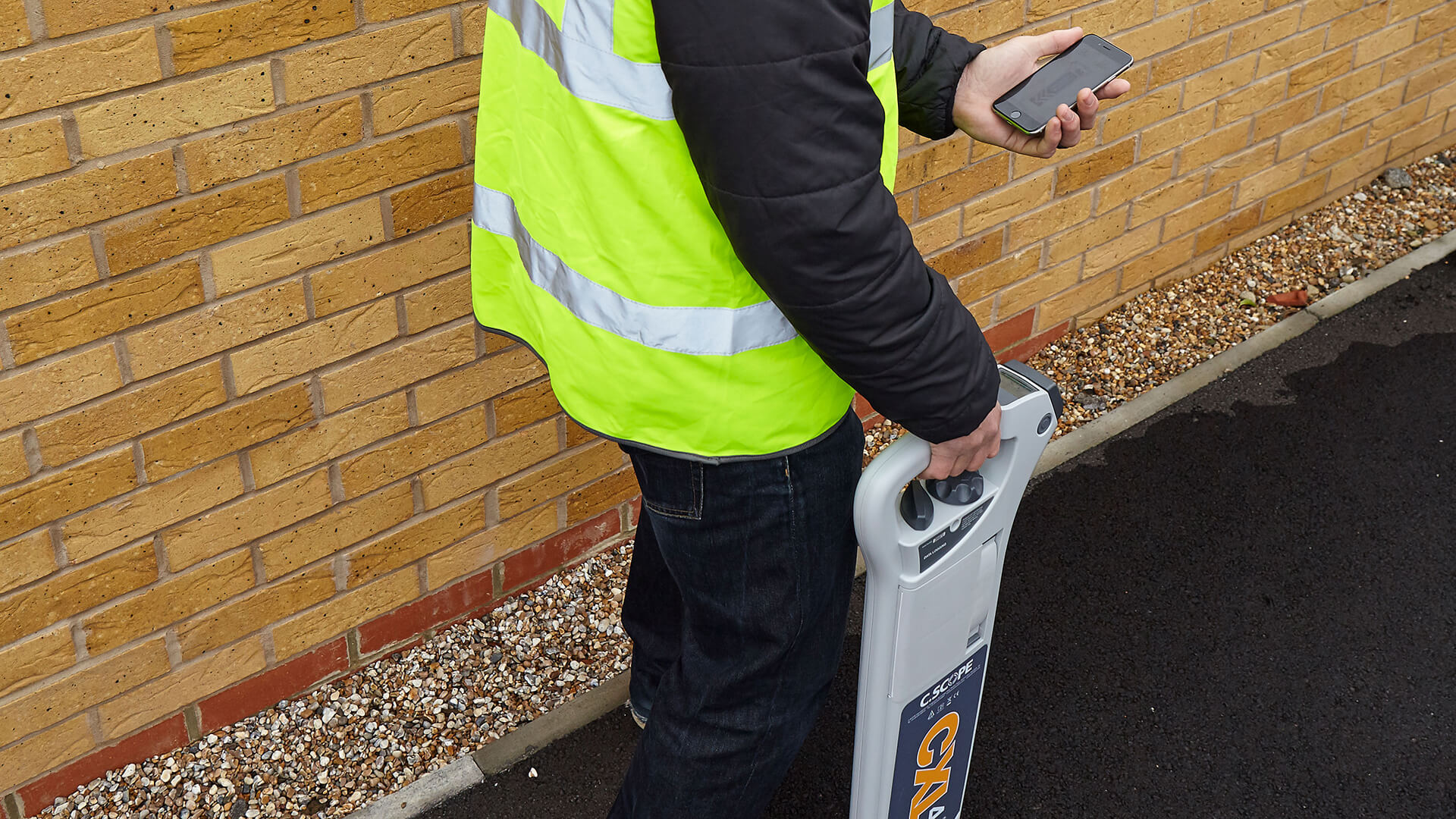

Here's where the CXL4-DBG truly shines. Full data logging is complemented by Bluetooth™ connectivity, making it seamless to transfer a year’s worth of operational data for analysis, either to a PC, tablet, or smartphone.
GPS Tracking with CXL4-DBG
Built-in GPS functionality adds an extra layer of data, recording the device’s operational locations. This geo-tracking can be integrated with Google Earth™ or Google Maps™ for comprehensive utility mapping.
Potential Business Use Cases
- Construction and Infrastructure
- Utility Management Companies
- Telecommunications Providers
- Environmental Assessment Agencies
- Emergency Services Coordination
- Mining Safety Operations
- Agricultural Land Management
- Real Estate Property Development
- Urban Infrastructure Planning
- Educational Training Programs for Utility Detection
Calibration and Ongoing Tests
No Need for Periodic Recalibration
Unlike some competitors, the CXL4-DBG performs an Automatic Daily Self Test (ADST), ensuring optimal functionality without the need for periodic recalibration.
Warranty and Compliance
Three-Year Warranty for CXL4-DBG
Every CXL4-DBG device is backed by a robust three-year warranty, underscoring our commitment to quality and reliability.
Compliance Certification
C.Scope authorized Service Centers can provide Test and Conformity Certification, solidifying CXL4-DBG’s standing as a compliant and trusted utility detection tool.
CXL4 Features Overview
- Power Mode
- Radio Mode
- Generator Mode:
Simultaneous 33+131kHz
33kHz signal detection for all purpose tracing and utility avoidance
+ 131kHz for optimum detection for short length, small diameter or unearthed cables - All Scan Mode
- Overload Protection
- Alarm ZoneTM
- Peak Hold
- Dynamic Swing Sensor
- Automatic Daily Self Test
- Data Logging of all Locator activity (option)
- Data Transfer by USB. (BluetoothTM option)
- In-Built GPS position logging (option)
- Connectivity to Survey level GPS products (option)
- High Resolution Backlit Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- Network Rail Approved
Conclusion
When it comes to utility detection and asset management, CXL4-DBG stands head and shoulders above the rest. Its myriad smart features—from GPS tracking to Bluetooth™ connectivity—make it a powerhouse in any professional toolkit. With the CXL4-DBG, you’re not just investing in a tool, you’re investing in peace of mind and operational excellence.
The CXL4 Cable Avoidance Tool is available in three model types:
- CXL4 Cable Avoidance Tool
The C.Scope CXL4 is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool. - CXL4-D Cable Avoidance Tool
The C.Scope CXL4-D is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging. - CXL4-DBG Cable Avoidance Tool
The C.Scope CXL4-DBG is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.

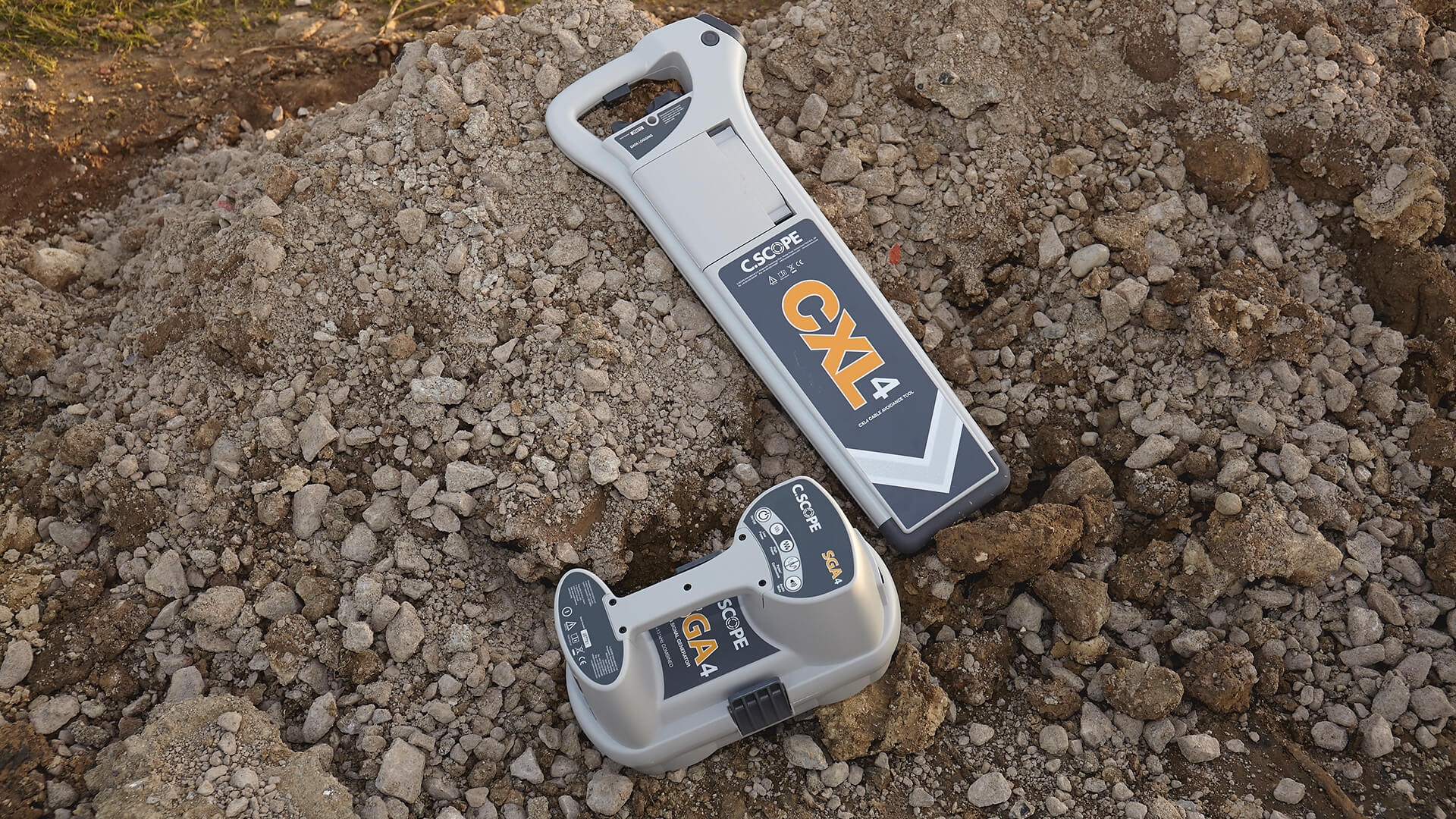

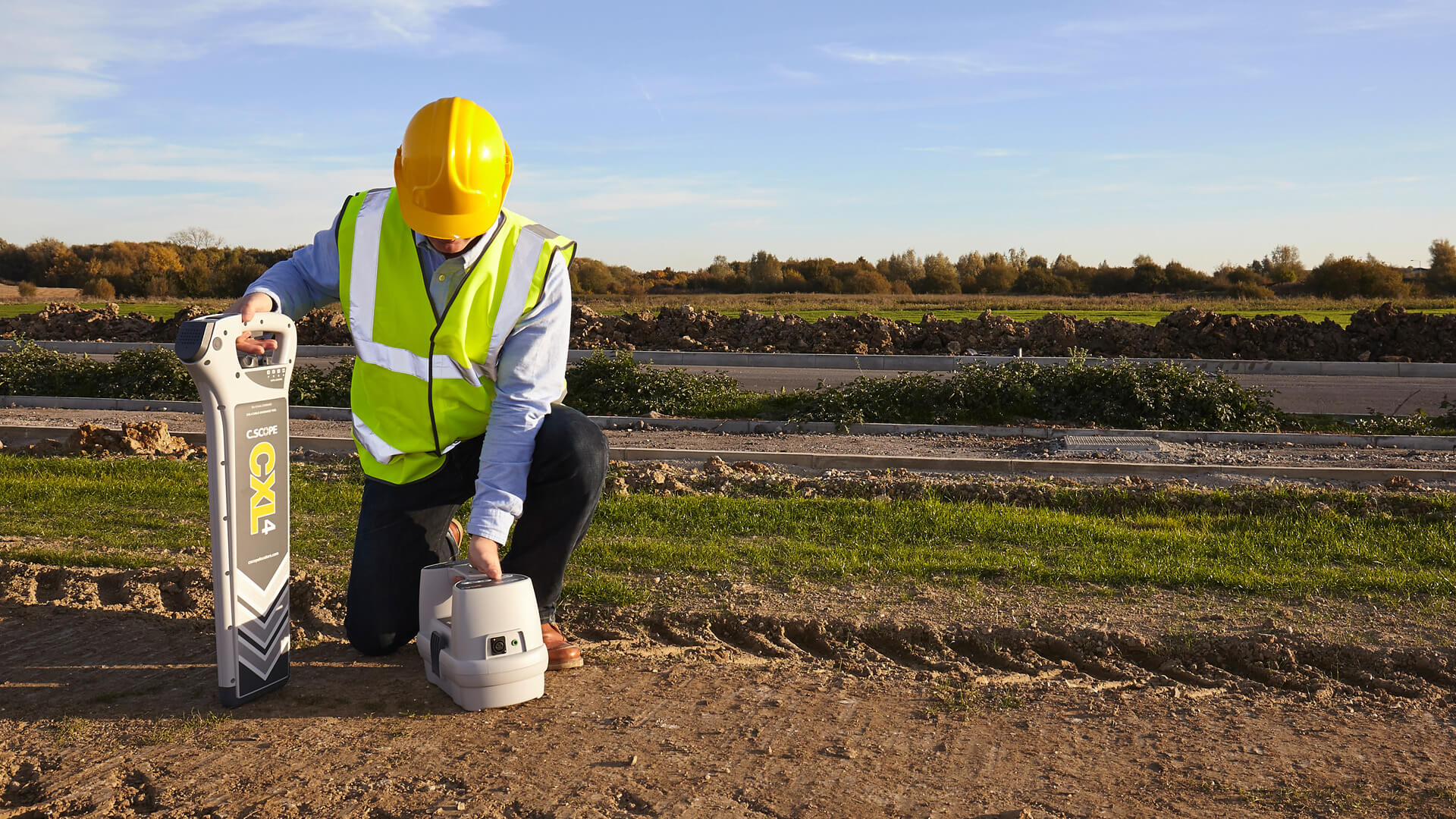

These products are designed for use with an SGA4 or an SGV4 Signal Generator.
Product name
CXL4 Cable Avoidance Tool
Part Nos.
- CXL4
- CXL4-D
- CXL4-DBG

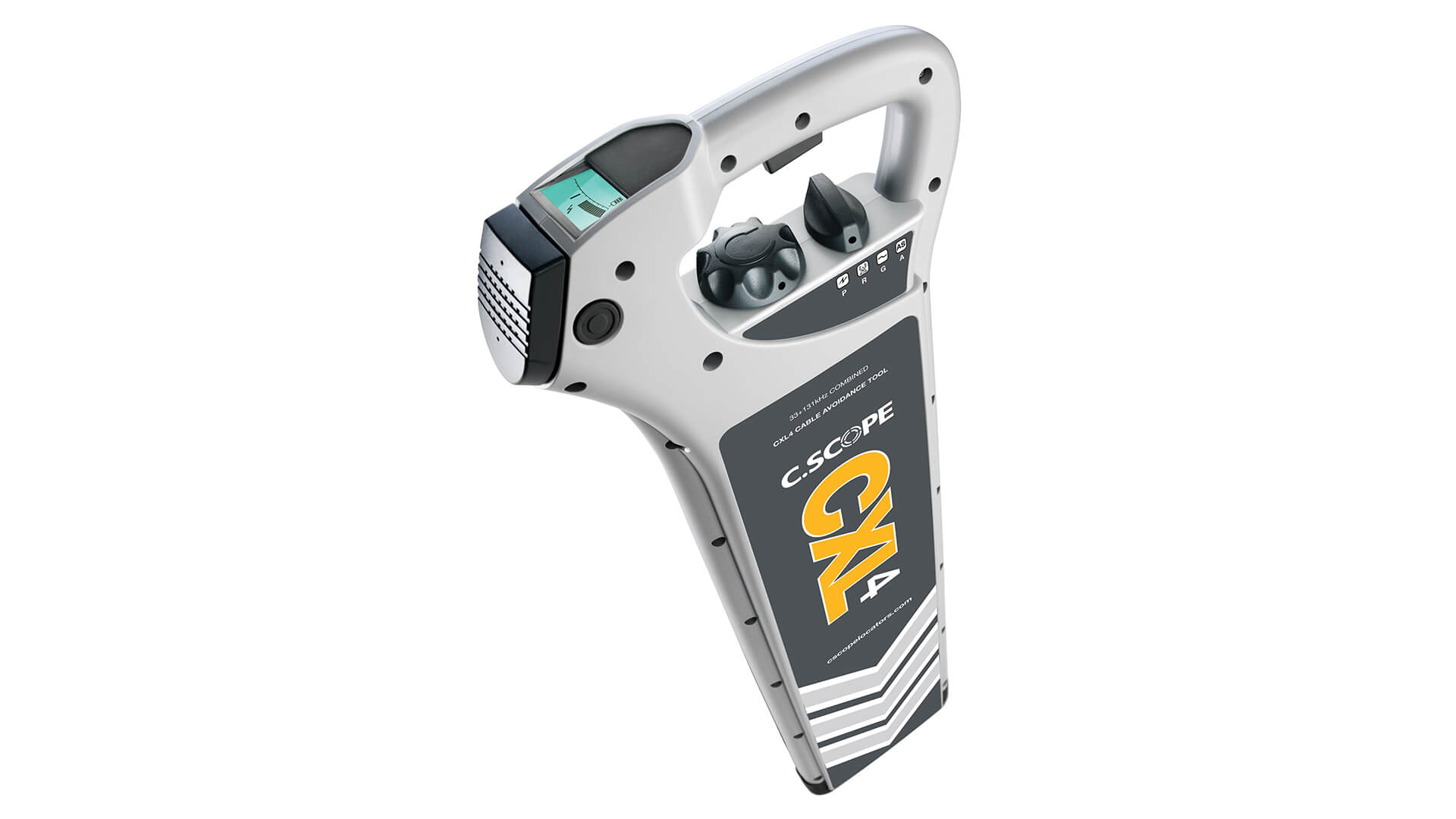

Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
- Sensitivity Control
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength
- Mode selected
- AlarmZone™
- Battery Condition
- Self Test Indicator
- For CXL4-DBG only, GPS signal detected, Bluetooth™ activated
Data Logging
Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes:
- Time/Date
- Mode
- Sensitivity Level
- Received Signal Level
- Frequency
- Depth
- Self Test Result
- Swing Indicator
- GPS position (CXL4-DBG only)
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Generator Mode Frequencies
Simultaneous 131.072kHz and 32.768kHz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5 lb 13 oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”)
- Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
- Line Depth Resolution: 0.01m (0.4”)
- Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
- Sonde Depth Resolution: 0.01m (0.4”)
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Locator Features | CXL4 | CXL4-D | CXL4-DBG |
---|---|---|---|
Power Mode | |||
Radio Mode | |||
Generator / Transmitter Mode | |||
– 33+131kHz | |||
– 131kHz | |||
– 33kHz | |||
– 8Hz | |||
– 512Hz | |||
– 640Hz | |||
AllScan Mode | |||
Accurate Depth Indication | |||
Signal Current Measurement | |||
Overload Protection | |||
AlarmZone™ | |||
Peak Hold | |||
Dynamic Swing Sensor | |||
Automatic Daily Self Test | |||
Product Validation Certificate | |||
Data Logging | |||
Data Logging Rate – once per second | |||
2GB Memory | |||
Data Transfer via USB | |||
Data Transfer via Bluetooth™ | |||
External Survey Level GPS via Bluetooth™ | |||
In-Built GPS position logging | |||
High Resolution Backlit Liquid Crystal Display | |||
No Periodic Calibration* | |||
Three Year Warranty** | |||
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable | |||
IP65 |
Performance | Frequency | Sensitivity | @ 1m depth | Detection Depth (max) |
---|---|---|---|---|
Power | 50-400Hz | 5mA | 1m | 3m |
Radio | 10kHz-30kHz | 25µA | 1m | 2m |
Generator | 33+131kHz | 5µA | 1m | 5m |
AllScan | 50Hz-33kHz | 100µA | 1m | 3m |
Sonde | 33kHz | – | 1m | 7m |
Rodding Oscillator | 33kHz | – | 1m | 4.5m |
Traceable Rodder – Line | 33kHz | – | 1m | 3m |
Traceable Rodder – Tip / Sonde | 33kHz | – | 1m | 4m |
GPS
Feature | Value |
---|---|
Acquisition Time – Cold Start | 30s |
Acquisition Time – Hot Start | 1s |
No. of Channels | 56 |
Supported Systems | GPS, SBAS, QZSS, Galileo, GLONASS |
Bluetooth™
Feature | Value |
---|---|
Version | v2.1 (for Android) and v4.0 (for Apple iOS) |
Supported Systems | PC, Android and Apple iOS |
Range | 30m |
Transfer Rate | 350kbps |
1 x CXL4-DBG Data Logging Cable Avoidance Tool by C.Scope
