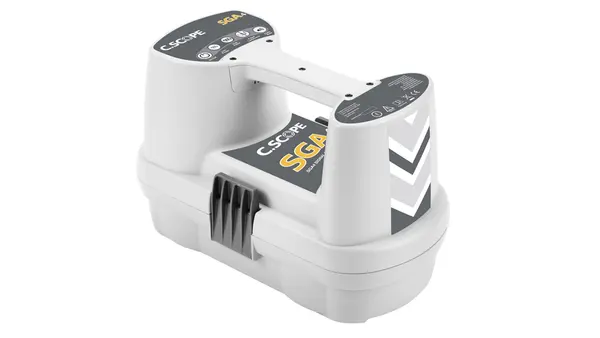

C.Scope SGA4 Signal Generator
Icon | Label | Download |
---|---|---|
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download |
Core Features of SGA4 Signal Generator:
- Dual-Frequency Signal Output: The SGA4 offers a unique dual-frequency signal of 33kHz and 131kHz, providing enhanced detection capabilities for a variety of underground utilities, even without direct connection.
- Versatile Signal Application: Whether it's Direct Connection, Wraparound, or Induction, SGA4 gives you multiple methods for precise and effective utility detection, broadening its utility in different field scenarios.
Package Contents |
|
---|
Explore the world of advanced utility detection with the SGA4 Signal Generator. Specially designed for compatibility with the CXL4 or DXL4 Cable Avoidance Tools, the SGA4 expands your ability to detect a broader range of underground utilities, including challenging ones like street lighting cables.
Boosted Detection Capabilities: Unveil the Power of SGA4
Dual-Frequency Signal Output
The SGA4 boasts a simultaneous dual-frequency signal output of 33kHz and 131kHz. This enhances your ability to detect multiple buried utilities without direct connection. Whether you're using a Signal Clamp or inducing the signal from ground level, SGA4 offers remarkable accuracy.
Using a Signal Generator
Versatile Signal Application Techniques with SGA4
SGA4 presents you with three different approaches for applying a Signal Generator signal:
Direct Connection: For focused and precise detection, allowing depth measurement and specific tracing of individual pipes or cables.
Wraparound: If Direct Connection is impractical, this technique can energize street or car park lighting cables effectively.
Induction: When dealing with previously unknown or undetectable metal underground utilities, induction comes in handy.
Innovative Features in SGA4
High-Power Signal for Deeper Detection
SGA4 offers a fully adjustable One Watt Power Output. This feature ensures that less conductive and deeper utilities can be effectively traced over longer distances.
Pulsed and Continuous Signal Output
With the SGA4, you have the option to switch between Pulsed and Continuous signal outputs, providing flexibility in high-interference situations. An audible signal output is included to notify operators when the device is active.
Audio Mute Control
An in-built audio mute control adds an extra layer of convenience during operation.
Business Use Cases of SGA4
- Construction and Infrastructure Development
- Utility Management Companies
- Telecommunications Sector
- Environmental Surveys
- Emergency Services Coordination
- Mining Applications
- Agricultural Uses
- Real Estate Development
- Urban Planning Projects
- Educational Training Programs
Robustness and Reliability: Quality Construction of SGA4
IP65 Standard Protection
The SGA4’s durable twin-wall construction provides IP65 standard protection against dust and water ingress, affirming its durability and reliability.
Convenient Accessory Tray in SGA4
The device comes with a large detachable accessory tray, which can house not only standard accessories but also optional extras such as Signal Clamps, Sondes, and Signal Injectors.
SGA4 Features Overview
- One Watt High/Low Power Output
- Simultaneous 33+131kHz Signal
- Pulsed or Continuous Output Signal
- Three Signal Application Techniques:
Direct Connection / Wraparound / Induction - No periodic Calibration required
- In-built Accessory Tray
Warranty and Support
Three-Year Warranty for SGA4
The SGA4 Signal Generator is backed by a robust three-year warranty (conditions apply), reaffirming its quality and longevity.
Conclusion
The SGA4 Signal Generator doesn’t just complement your CXL4 or DXL4 Cable Avoidance Tools; it significantly enhances them. From its versatile signal application techniques to its robust construction, the SGA4 is the go-to device for comprehensive, reliable, and advanced utility detection. With SGA4, you're not just improving your utility detection; you're transforming it.
Product name
SGA4 Signal Generator
Part No.
SGA4
Controls
All operation is by push button control as follows:
- On/Off
- Power Level: 2 available power levels via High and Low Power buttons
- Pulse/Continuous Output: toggles between pulse or continuous output using one push button
- Audio/Mute: toggles between loud or muted audio output using one push button
Audio Indications
- Audio Feedback on button push
- Audio pitch drops with increasing load current in Connected Mode
- Audio pitch changes with power level in Induced Mode
- Audio output pulses to indicate Pulsed Mode
- Low battery indicated by interrupted Audio and output signal
Output
- Induced = 32.768kHz
- Connected = 131.072kHz and 32.768kHz
- Carrier Pulse Frequency: 7.5Hz (pulsed mode)
Connected Mode
Connection Mode automatically selected when lead is plugged into socket
Maximum Output Voltage (open circuit)
28V rms
Maximum Output Current (short circuit)
65mA rms
Maximum Power
1W into 400Ω load
Construction
- Case moulded from high impact plastic
- Designed to withstand 1m (3’3”) drop onto a hard surface
- Incorporates clip on accessory storage compartment
Weight (including batteries, Connection Leads and Earth Stake)
3.4kg (7 lb 7 oz)
Dimensions (with Accessory Tray fitted)
360mm x 180mm x 230mm (14.1” x 7” x 9”)
Battery Type
Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
up to 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Notes:
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Signal Generators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/53/EU (EMC). Compliance has been demonstrated by testing representative samples to the harmonised standards EN300-330 and EN301-489. The essential radio test suites have been carried out and the equipment is in conformity with all applicable directives. All C.Scope Signal Generators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Unit Features | SGA4 |
---|---|
One Watt Power | |
Power Levels | 2 |
Generator Frequencies: | |
– 33+131kHz (Connected at 33+131kHz. Induced at 33kHz only.) | |
– 131kHz (Connected and Induced) | |
– 33kHz (Connected and Induced) | |
– 8kHz (Connected and Induced) | |
– 512Hz (Connected) | |
– 640Hz (Connected) | |
Pulsed / Continuous Output Signal | |
Signal Connection Modes: | |
– Direct Connection | |
– Wraparound | |
– Induction | |
Automatic Daily Self Test | |
Data Logging | |
Data Transfer via USB | |
High Resolution Backlit Liquid Crystal Display | |
No Periodic Calibration* | |
Three Year Warranty** | |
Batteries*** 4 x D (LR20) Alkaline or NiMH Rechargeable | |
In-Built Accessory Tray**** | |
IP65 |
* No Periodic Calibration. The SGA4 does not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. 4 x D LR20 Alkaline or NiMH Rechargeable batteries housed in a secure battery compartment.
**** In-Built Accessory Tray includes Direct Connection Lead, Auxiliary 10m Earth Lead, Connection Magnets, Earth Stake and Instruction Manual.
- 1 x SGA4 Signal Generator
- 1 x Direct Connection Leads
- 1 x Connection Magnets
- 1 x Earth Stake
- 1 x Auxilliary 10 metre Earth Lead
