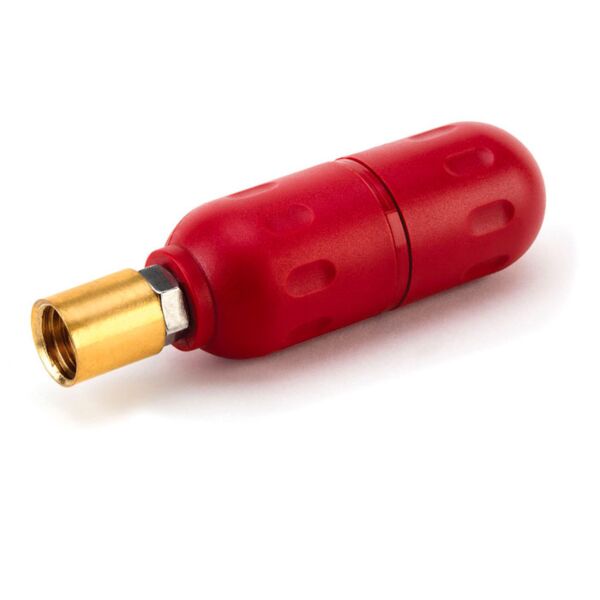

C.Scope 512Hz Metal Pipe Sonde

The C.Scope YIRS-512 512Hz Metal Pipe Sonde is specifically engineered for identifying obstructions or specific features within metal pipes. It achieves this by emitting an ultra-low 512Hz frequency signal, which is uniquely capable of penetrating metal and reaching a C.Scope MXL4 Cable Locator up to a distance of 5 meters, depending on the thickness of the pipe walls. This low frequency makes it particularly effective when used alongside a camera inspection system for detecting blockages.

Given that the C.Scope YIRS-512 is designed to be inserted into gas and water pipes, it is encased in a plastic shell with an IP68 rating, ensuring protection against harmful ingress. Its stainless steel stud, featuring a 7 t.p.i. thread, allows for easy attachment to a drain rod or similar device for underground maneuvering.

The device is highly efficient, operating up to 25 hours on a single 1.5V AA battery, making it ideal for prolonged pipe inspections. Its compact size enables it to fit into pipes with a minimum diameter of 50mm. Overall, the C.Scope YIRS-512 is an invaluable tool for locating blockages in metal pipes.

Key Features:

• Signal Frequency: 512Hz
• Maximum Transmission Range: 5 meters
• Minimum Pipe Diameter Compatibility: 50mm
• Capable of penetrating metal pipe walls
• Ideal for detecting blockages in metal pipes
• Waterproof with an IP68 rating
• Constructed from Plastic, Steel, and Epoxy Resin
• Compatible with 7 t.p.i. threaded drain rods
• Extended 25-hour battery life with a single AA battery
