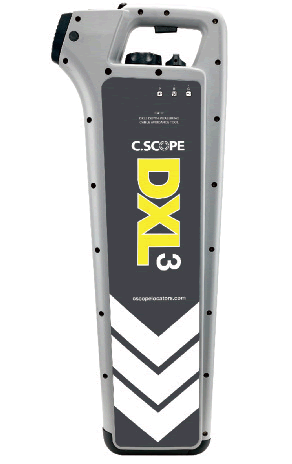

C.Scope DXL3 Depth Model Cable Avoidance Tool
Icon | Label | Download |
---|---|---|
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download | |
C.Scope DXL3 Brochure | Download |
Cable and Pipe Detection with DXL3
- Quick Electrical Cable Detection: Utilizes POWER mode to rapidly locate buried electrical cables with high accuracy.
- Metal Pipe & Cable Identification: RADIO mode captures re-emitted signals for focused identification of metal pipes and cables.
- Comprehensive Utility Tracing: GENERATOR mode is optimized for a broad range of utility detection, including non-metallic pipes when used with the C.Scope SGA3 Signal Generator.
- Integrated Depth Measurement: Features a dedicated button for measuring the depth of buried utilities, particularly useful in GENERATOR mode.
Package Contents | 1 x DXL3 Depth Model by C.Scope |
---|
The C.Scope DXL3 Cable Avoidance Tool, designed for depth measurement, sets the industry standard for durability and cost-effectiveness while locating underground pipes and cables before digging begins.
Striking underground utilities during excavation not only poses serious safety risks but also leads to expensive repairs. As a reliable and convenient solution, the C.Scope Cable Avoidance Tool ensures quick and consistent detection of buried cables and pipes.
Core Features of DXL3
Quick Electrical Cable Detection: POWER Mode
The DXL3’s POWER mode swiftly pinpoints buried electrical cables, using the electrical current's intrinsic signal for high accuracy.
Metal Pipe & Cable ID: RADIO Mode
RADIO mode captures re-emitted signals commonly associated with metal pipes and cables, allowing standalone utility identification.
Broad Utility Tracing: GENERATOR Mode
GENERATOR mode is designed for detecting signals applied to metal conduits or wires via the C.Scope SGA3 Signal Generator. This mode also supports tracing signals in non-metallic pipes.
Depth Measurement: An Added DXL3 Advantage
The DXL3 incorporates a Depth Measurement button at its top, especially useful in GENERATOR mode.
DXL3: Your All-In-One Utility Solution
When used with the C.Scope SGA3 Signal Generator and accessories, the DXL3 becomes a multi-purpose tool for locating and tracing underground utilities. Its LCD display, detachable loudspeaker, and user-friendly controls make it invaluable for experts across various sectors.
Potential Business Use Cases for the DXL3
Industries That Benefit
- Construction and Infrastructure Development
- Utility Companies
- Telecommunication Sector
- Environmental Surveys
- Emergency Services
- Mining Industry
- Agricultural Applications
- Real Estate Development
- Urban Planning
- Educational Training Programs
The DXL3 caters to a wide range of sectors, making it a wise choice for any organization involved in excavation or utility location.
Essential DXL3 Calibration
Annual recalibration is advised to maintain peak operational performance.
Three-Year DXL3 Warranty and Training
The DXL3 comes with a three-year warranty, emphasizing C.Scope’s commitment to quality and durability.
Expert DXL3 Training and Certification
C.Scope offers a detailed training course, complete with certification, for users to maximize the benefits of the DXL3 and other C.Scope equipment.
Product name
DXL3 Cable Avoidance Tool
Part No.
DXL3CAT
Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (Three position): P – Power Mode; R – Radio Mode; G – Generator Mode
- Sensitivity Control
- Depth Button: Push button for live display of depth – DXL3 only
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength; Mode selected; Battery Condition;
- Depth Measurement (in Generator Mode) – DXL3 only
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.9kg (6 pounds 6 ounces)
Dimensions
720mm x 270mm x 63mm (28.3” x 10.6” x 2.4”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”) – DXL3 only
- Depth Measurement Range: Line 0.2m to 3m (8” to 10’)
- Depth Resolution: Line 0.05m
- Depth Measurement Range: Sonde 0.85m to 4.5m (2’9” to 15’) – depending on Sonde type
- Depth Resolution: Sonde 0.15m
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Note
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU. Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the RoHS directive, 2011/65/EU.
Locator Features | DXL3 |
---|---|
Power Mode | |
Radio Mode | |
Generator Mode | |
– 33kHz | |
Accurate Depth Indication | |
Liquid Crystal Display | |
Periodic Calibration Required* | |
Three Year Warranty** | |
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable | |
IP65 |
* Periodic Calibration. The DXL3 Cable Avoidance Tool requires periodic calibration.
** Three Year warranty. Conditions apply.
*** Batteries. The DXL3 Cable Avoidance Tool uses 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder.
1 x DXL3 Depth Model by C.Scope
