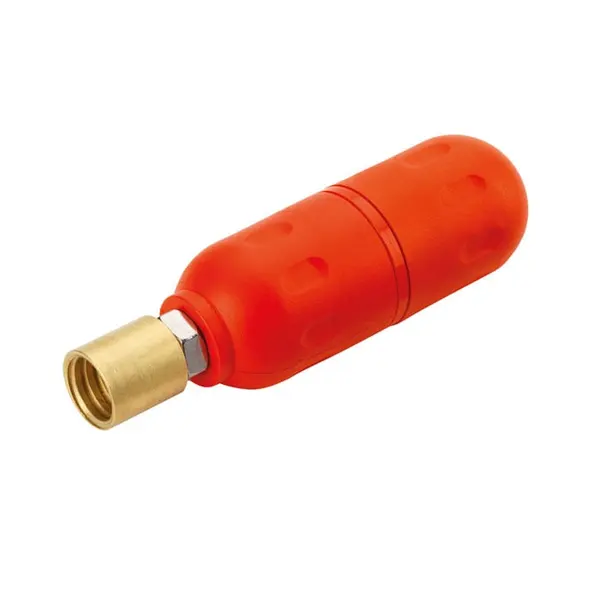

C.Scope 33kHz General Purpose Sonde | Non-Metallic Pipe Tracing | IP68 Rated

The C.Scope General Purpose Sonde 33kHz is a precision-engineered transmitter designed for detecting the position of features and blockages within non-metallic underground infrastructures. This robust sonde is a critical accessory for utility professionals, providing a reliable signal for line tracing in non-conductive pipes such as gas and water mains. Supplied with the H2397 Sonde Adapter M10, it integrates seamlessly with standard drain rods for immediate field deployment.

What is the primary function of the 33kHz C.Scope Sonde?

The transmitter is used for tracing the route of non-metallic pipes and pinpointing the exact location of blockages or specific features. It emits a powerful 33kHz signal that can be identified by a compatible cable avoidance tool from the surface.

Can this sonde be used in wet or submerged conditions?

Yes, this sonde features a high-durability construction with an IP68 protection rating, making it fully submergible. This allows for precise detection in water-filled sewers or flooded non-metallic utility lines without risking internal damage.

What rod connections are compatible with this sonde?

The unit is supplied with the H2397 Sonde Adapter M10, which features a standard 7 T.P.I (Threads Per Inch) thread for connection to drain rods. This adapter ensures the sonde remains securely attached while being pushed through complex pipe networks.

Manufacturer	C.Scope
Frequency	33kHz
Protection Rating	IP68 (Submergible)
Included Adapter	H2397 Sonde Adapter M10 (7 T.P.I)
Application	Non-metallic pipe tracing and blockage positioning

Compatible Accessories

• C.Scope Sonde Adapter M10: H2397 Adapter included for standard rodding.
• C.Scope Spring Coupling: Spring Coupling for navigating tight bends.
• C.Scope Rod Connector: Lockfast Rod Connector M10 for secure pipe entry.
• C.Scope Compatible Locator: Use with the Refurbished C.Scope Cat33 for optimal signal detection.
