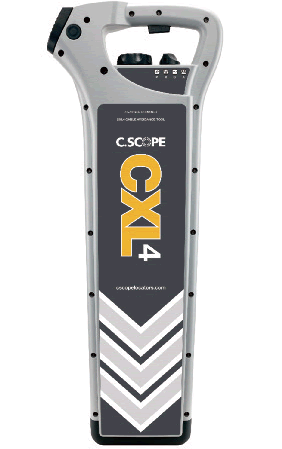

C.Scope CXL4-D Data Logging Cable Avoidance Tool
Icon | Label | Download |
---|---|---|
CXL Brochure | Download | |
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download |
Cable and Pipe Detection with CXL4-D
- Enhanced Multi-Mode Detection: Offers superior detection across all four modes—Power, Radio, Generator, and AllScan—for comprehensive utility locating.
- AlarmZone™ Technology: Alerts operators to shallow buried utilities, reducing the risk of accidental damage to critical infrastructure.
- Dynamic Swing Sensor: Minimizes user error by alerting operators when the device is being swung excessively, ensuring accurate utility detection.
- Data Logging and Transfer: Features robust data logging capabilities, allowing for a year's worth of data to be transferred via USB or wirelessly for detailed analysis.
Package Contents | 1 x CXL4-D Data Logging Cable Avoidance Tool by C.Scope |
---|
Welcome to the future of buried utility detection. CXL4-D is more than just a tool—it's an investment in safety, efficiency, and accuracy. When it comes to detecting underground services, CXL4-D offers unparalleled detection performance.
Safe and Efficient Operations: The Core Features of CXL4-D
Improved Multi-Mode Detection
Enhanced capabilities across all four detection methods make CXL4-D a standout. Whether it’s Power, Radio, Generator, or AllScan, the CXL4-D ensures you find even the most elusive underground utilities.
Alarm Zone Feature
AlarmZone™ technology alerts operators to particularly shallow utilities, minimizing the risk of damaging critical infrastructure.
Dynamic Swing Sensor
This innovative feature gently notifies the user about excessive swinging of the CXL4-D, thus preserving the accuracy of utility location.
Intelligent Features of CXL4-D
PeakHold Functionality
PeakHold allows operators to pinpoint the exact position of buried services, elevating the CXL4-D’s user experience.
Data Logging and Transfer
The CXL4-D has robust data logging capabilities. A year's worth of valuable data can be transferred via USB or wirelessly to supervisors for insightful analysis.
GPS Functionality
Incorporated GPS in the CXL4-D allows you to maintain records of where the device has been used, enhancing traceability and accountability.
Possible Business Use Cases
- Construction and Infrastructure Development
- Utility Companies
- Telecommunication Sector
- Environmental Surveys
- Emergency Services
- Mining Industry
- Agricultural Applications
- Real Estate Development
- Urban Planning
- Educational Training Programs
Calibration and Self-Tests
Automatic Daily Self Test (ADST)
The ADST feature checks the CXL4-D's functionality, ensuring that the device operates at its optimum level daily.
Warranty and Certification
Three-Year Warranty
The CXL4-D comes with a robust three-year warranty, providing you with peace of mind.
Product Validation Certification
Third-party Test and Conformity Certification can be provided by C.Scope authorized Service Centers, solidifying the CXL4-D's compliance with client or internal requirements.
CXL4 Features Overview
- Power Mode
- Radio Mode
- Generator Mode:
Simultaneous 33+131kHz
33kHz signal detection for all purpose tracing and utility avoidance
+ 131kHz for optimum detection for short length, small diameter or unearthed cables - All Scan Mode
- Overload Protection
- Alarm ZoneTM
- Peak Hold
- Dynamic Swing Sensor
- Automatic Daily Self Test
- Data Logging of all Locator activity (option)
- Data Transfer by USB. (BluetoothTM option)
- In-Built GPS position logging (option)
- Connectivity to Survey level GPS products (option)
- High Resolution Backlit Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- Network Rail Approved
Conclusion
The CXL4-D goes beyond standard cable avoidance tools by offering a comprehensive suite of features designed for professionals who demand the best in utility detection. With CXL4-D, you are investing in safety, accuracy, and efficiency.
By integrating advanced features like AlarmZone™, Dynamic Swing Sensor, and robust data logging, the CXL4-D stands as a leader in the industry. When it comes to buried utility detection, don’t settle for less—choose CXL4-D for unparalleled performance.
The CXL4 Cable Avoidance Tool is available in three model types:
- CXL4 Cable Avoidance Tool
The C.Scope CXL4 is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool. - CXL4-D Cable Avoidance Tool
The C.Scope CXL4-D is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging. - CXL4-DBG Cable Avoidance Tool
The C.Scope CXL4-DBG is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.
These products are designed for use with an SGA4 or an SGV4 Signal Generator.
Product name
CXL4 Cable Avoidance Tool
Part Nos.
- CXL4
- CXL4-D
- CXL4-DBG
Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
- Sensitivity Control
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength
- Mode selected
- AlarmZone™
- Battery Condition
- Self Test Indicator
- For CXL4-DBG only, GPS signal detected, Bluetooth™ activated
Data Logging
Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes:
- Time/Date
- Mode
- Sensitivity Level
- Received Signal Level
- Frequency
- Depth
- Self Test Result
- Swing Indicator
- GPS position (CXL4-DBG only)
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Generator Mode Frequencies
Simultaneous 131.072kHz and 32.768kHz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5 lb 13 oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”)
- Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
- Line Depth Resolution: 0.01m (0.4”)
- Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
- Sonde Depth Resolution: 0.01m (0.4”)
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Locator Features | CXL4 | CXL4-D | CXL4-DBG |
---|---|---|---|
Power Mode | |||
Radio Mode | |||
Generator / Transmitter Mode | |||
– 33+131kHz | |||
– 131kHz | |||
– 33kHz | |||
– 8Hz | |||
– 512Hz | |||
– 640Hz | |||
AllScan Mode | |||
Accurate Depth Indication | |||
Signal Current Measurement | |||
Overload Protection | |||
AlarmZone™ | |||
Peak Hold | |||
Dynamic Swing Sensor | |||
Automatic Daily Self Test | |||
Product Validation Certificate | |||
Data Logging | |||
Data Logging Rate – once per second | |||
2GB Memory | |||
Data Transfer via USB | |||
Data Transfer via Bluetooth™ | |||
External Survey Level GPS via Bluetooth™ | |||
In-Built GPS position logging | |||
High Resolution Backlit Liquid Crystal Display | |||
No Periodic Calibration* | |||
Three Year Warranty** | |||
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable | |||
IP65 |
Performance | Frequency | Sensitivity | @ 1m depth | Detection Depth (max) |
---|---|---|---|---|
Power | 50-400Hz | 5mA | 1m | 3m |
Radio | 10kHz-30kHz | 25µA | 1m | 2m |
Generator | 33+131kHz | 5µA | 1m | 5m |
AllScan | 50Hz-33kHz | 100µA | 1m | 3m |
Sonde | 33kHz | – | 1m | 7m |
Rodding Oscillator | 33kHz | – | 1m | 4.5m |
Traceable Rodder – Line | 33kHz | – | 1m | 3m |
Traceable Rodder – Tip / Sonde | 33kHz | – | 1m | 4m |
GPS
Feature | Value |
---|---|
Acquisition Time – Cold Start | 30s |
Acquisition Time – Hot Start | 1s |
No. of Channels | 56 |
Supported Systems | GPS, SBAS, QZSS, Galileo, GLONASS |
Bluetooth™
Feature | Value |
---|---|
Version | v2.1 (for Android) and v4.0 (for Apple iOS) |
Supported Systems | PC, Android and Apple iOS |
Range | 30m |
Transfer Rate | 350kbps |
1 x CXL4-D Data Logging Cable Avoidance Tool by C.Scope
