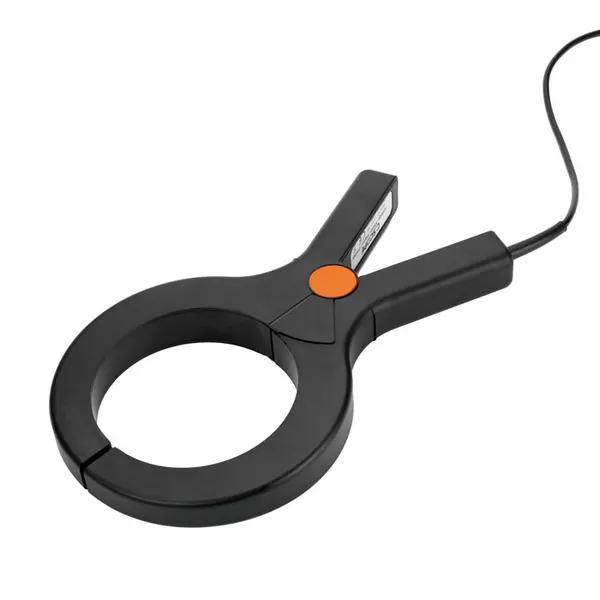

C.Scope YIRC-33-8 | 33kHz Signal Induction Clamp | 105mm Cap

C.Scope YIRC-33-8 Signal Clamp | 33kHz Cable Induction | 105mm Capacity

SKU: YIRC-33-8
In Stock
New
The C.Scope YIRC-33-8 is a high-performance signal induction clamp designed for the wraparound energization of metallic pipes and cables. It facilitates the isolation and tracing of specific services within dense bundles using a 33kHz signal frequency.

What's in the Box

Signal Clamp by C.Scope

More Info ↓

£297.00ex. VAT
Secure checkout — 256-bit SSL encrypted

The C.Scope YIRC-33-8 Signal Clamp is a specialized utility locating tool used to apply a tracer signal to metal pipes and cables. It is specifically designed to work with 33kHz frequencies to ensure precise isolation of target lines in complex underground environments.

How does the C.Scope Signal Clamp isolate specific cables?

The clamp utilizes the wraparound energization method to induce a signal on metallic services without physical contact with conductors. This allows operators to isolate and trace a single cable even within dense service bundles.

What are the primary technical specifications of the YIRC-33-8?

This robust accessory features spring-loaded jaws that accommodate pipes and cables with a maximum diameter of 105mm. It is equipped with a 2-meter lead and optimized for 33kHz signal transmission.

Is the C.Scope YIRC-33-8 compatible with existing transmitters?

Yes, the YIRC-33-8 is designed for universal compatibility with all C.Scope Signal Generators and transmitters. It serves as an essential component for professional cable avoidance and utility surveying.

ModelYIRC-33-8
Signal Frequency33kHz
Max Cable Diameter105mm
Lead Length2 Metres
ConstructionRobust High-Impact Plastic
Jaw TypeSpring-Loaded
