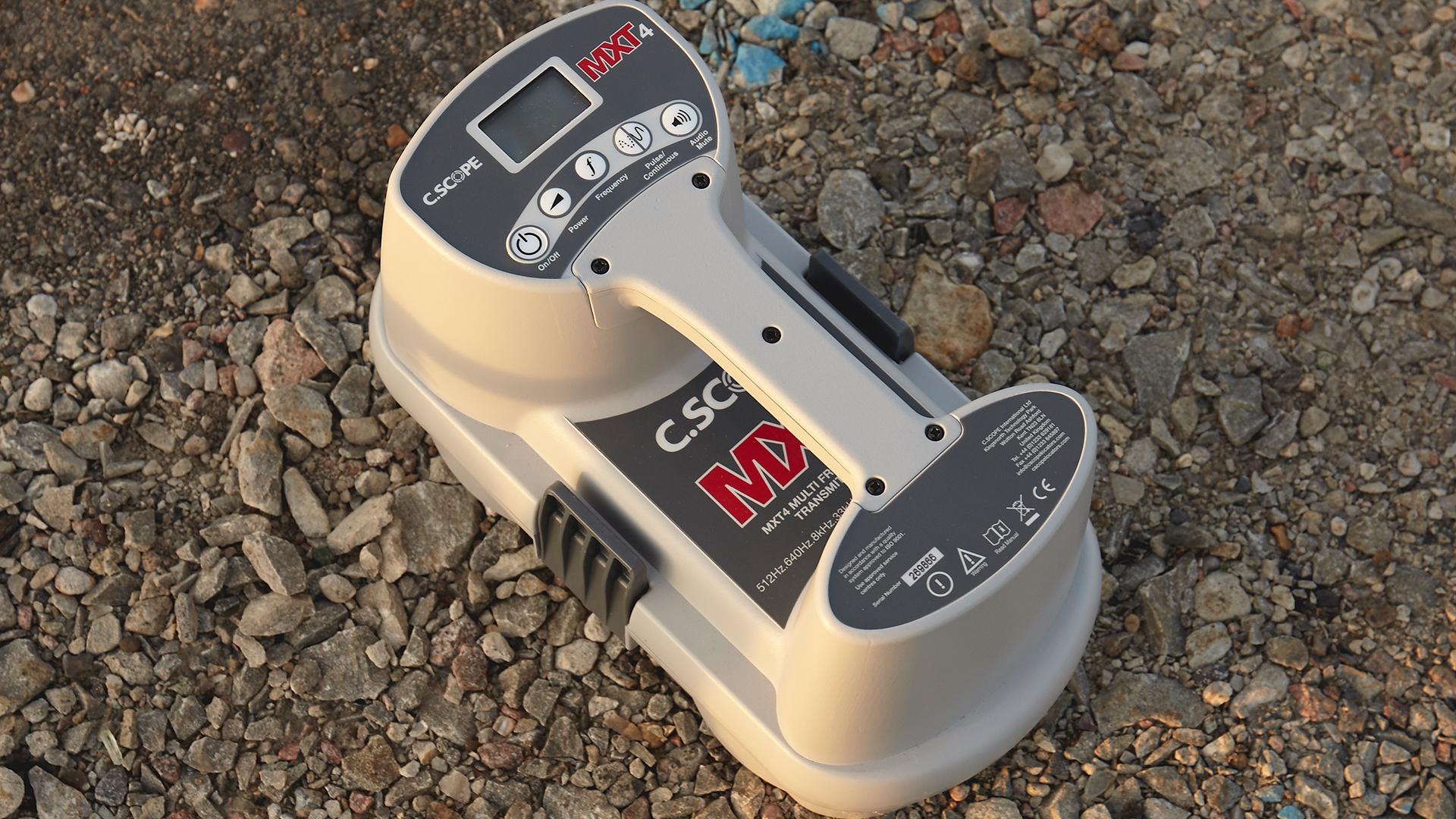

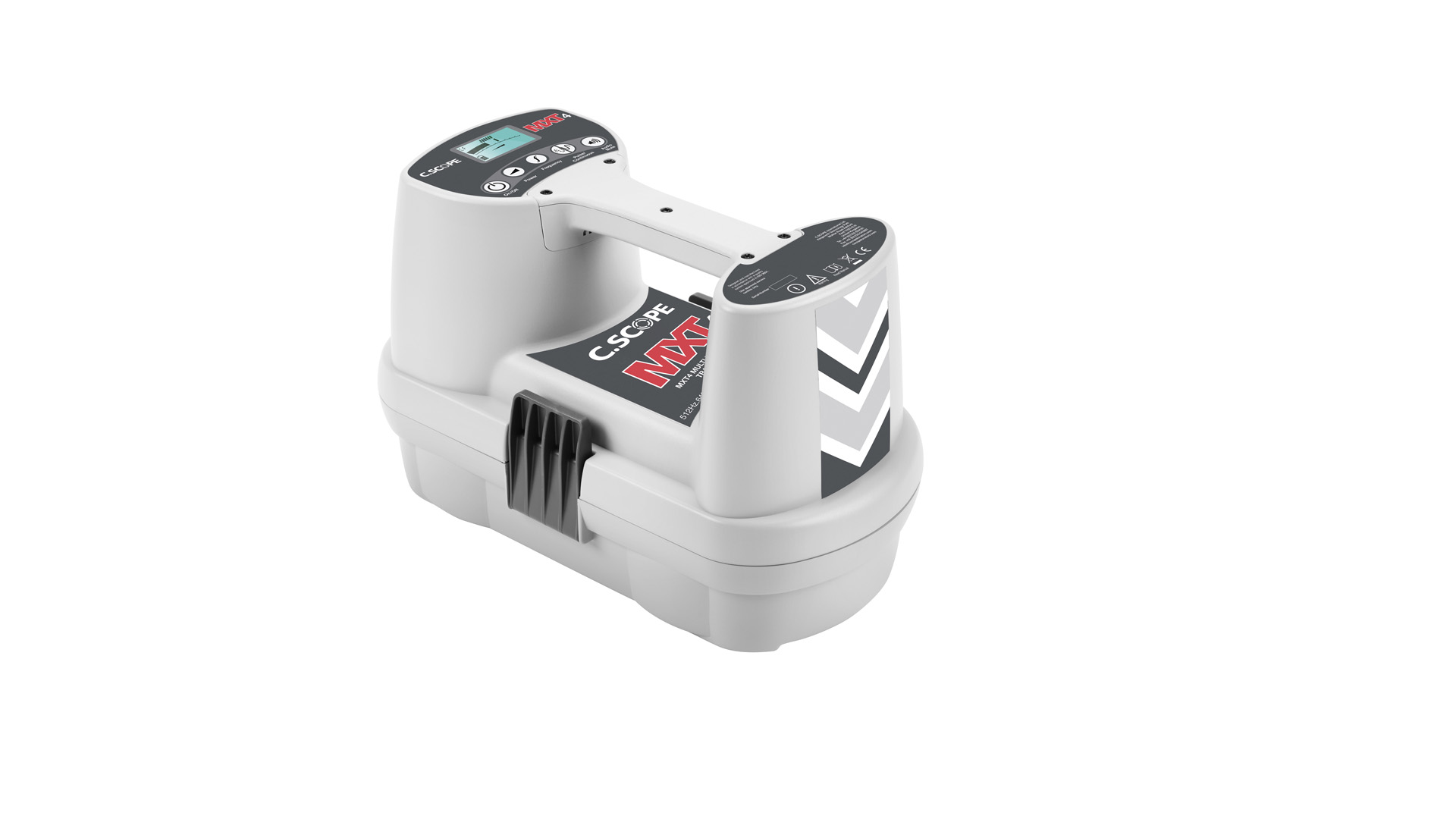

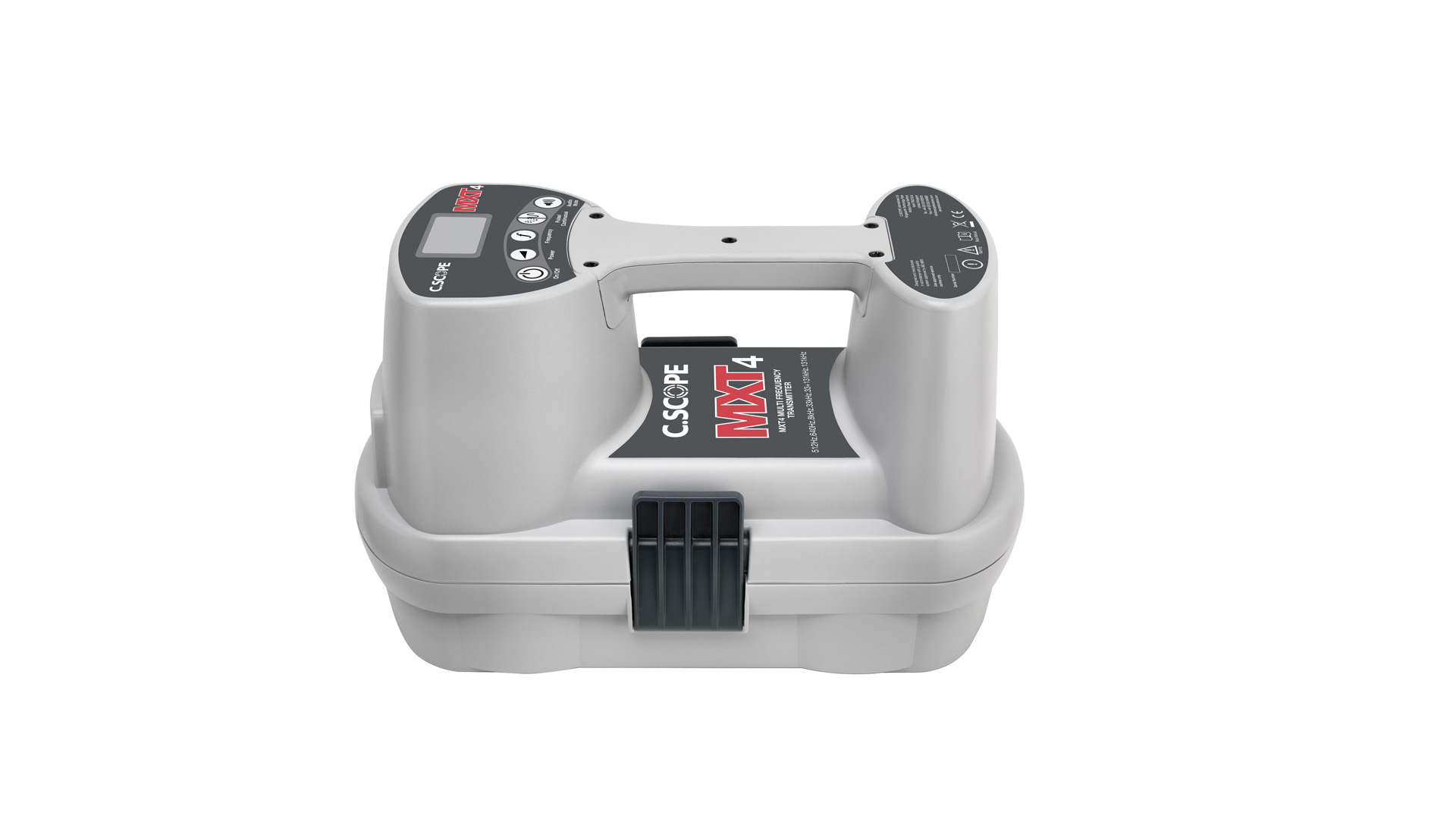

C.Scope MXT4 Transmitter
Icon | Label | Download |
---|---|---|
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download |
Key Features of MXT4 Transmitter
- Multi-Frequency: Wide range of frequencies for versatile utility tracing.
- Signal Techniques: Offers Direct Connection, Wraparound, and Induction.
- High Power: Adjustable one-watt output for deeper tracing.
- Network Rail Approved: Meets stringent industry standards for railway applications.
- Robust Build: Durable construction with a three-year warranty.
Package Contents |
|
---|

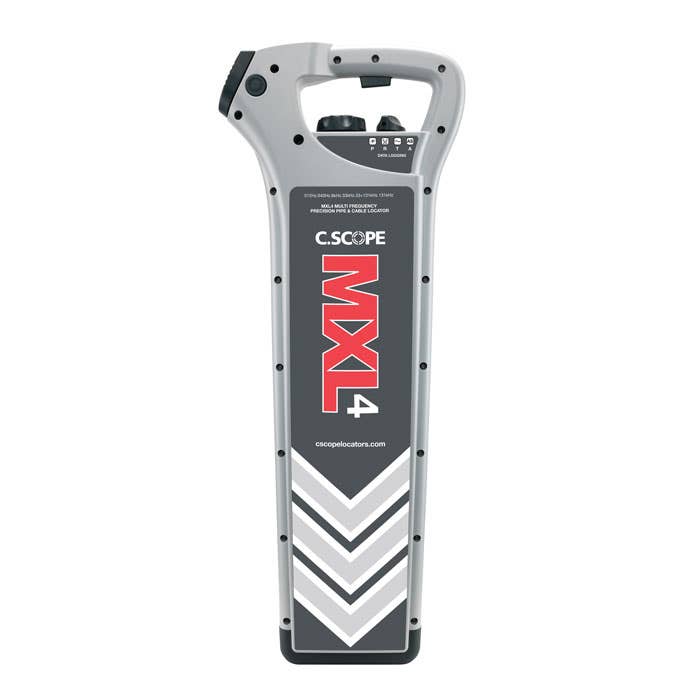

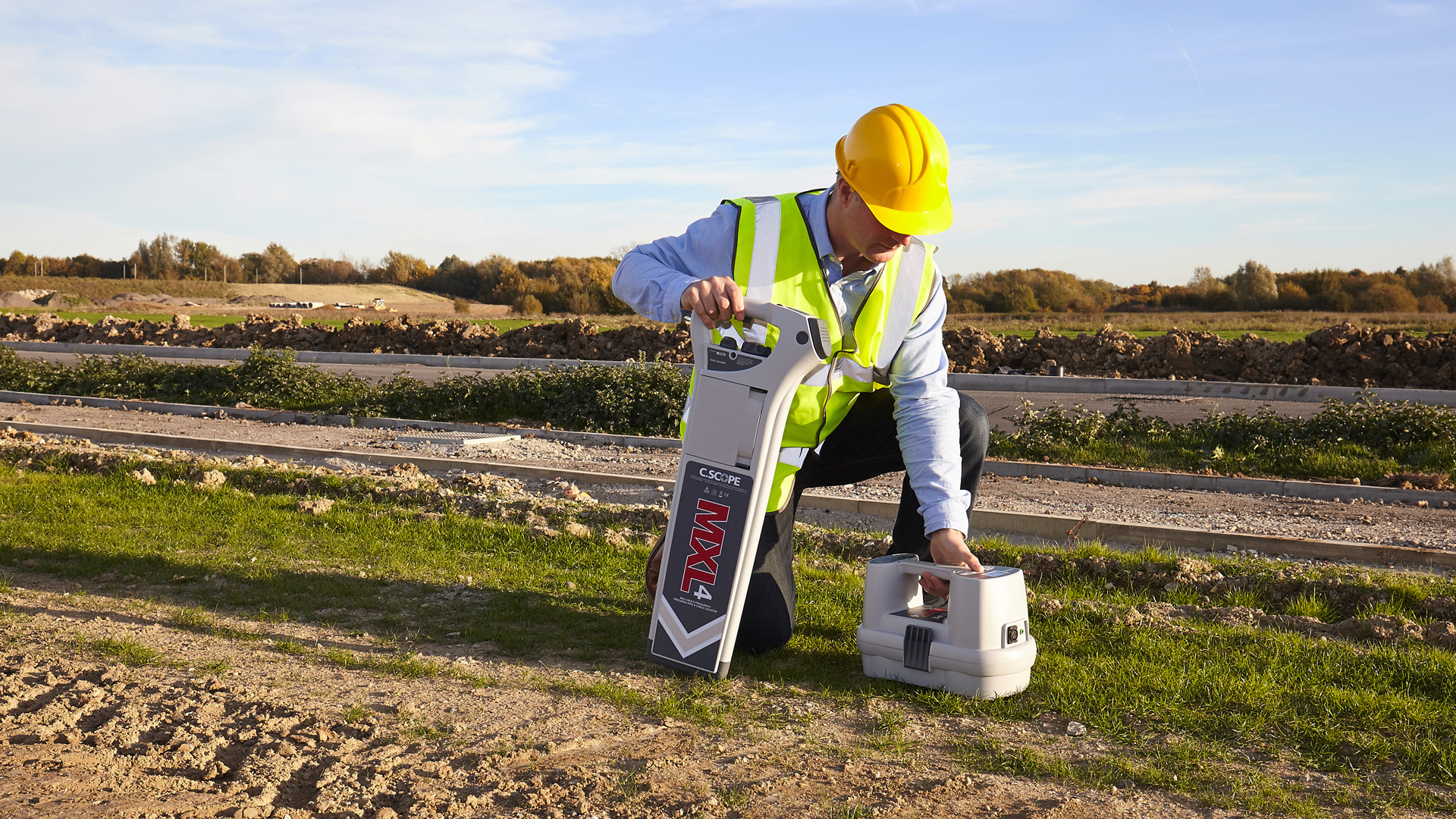

The C.Scope MXT4 Transmitter stands as a groundbreaking tool engineered for use in tandem with the MXL4 Locator. This formidable combination offers users a dynamic and adaptable methodology for accurately detecting, tracing, and identifying an expansive variety of pipes and cables beneath the earth's surface.
Comprehensive Feature Set: Multi-Frequency and More
Multi-Frequency Capabilities: Bridging Gaps in Utility Detection
The MXT4 Transmitter presents a remarkable range of transmitting frequencies, all designed to improve the long-distance tracing and identification of buried utilities. With frequencies ranging from 512/640Hz up to 131kHz, and even including a simultaneous dual-frequency output of 33kHz and 131kHz, the MXT4 is instrumental in maximizing the number of detectable underground services.
Using a Signal Generator
Three Signal Application Techniques: Versatility at Its Best
The MXT4 comes equipped with three different signal application methods:
Direct Connection: Tailored for specific pipes or cables, allowing for their individual tracing, identification, and depth measurement.
Wraparound Technique: Ideal for instances where Direct Connection is impractical, such as energizing street or car park lighting cables.
Induction: For inducing a signal onto previously unknown, undetected, or unreachable underground metal pipes or cables.
High Power Signal: Reach Deeper, Trace Farther
The MXT4's one-watt power output can be adjusted, enabling the energization and tracing of less conductive and deeper pipes and cables over extensive distances.
Pulsed/Continuous Signal Output: Adaptability in Challenging Environments
Operators can toggle between Pulsed and Continuous modes at the push of a button, particularly useful in areas of high signal interference.
MXT4 Features Overview
- One Watt 4-level adjustable Power Output
- Six Signal Outputs:
Simultaneous 33+131kHz
512Hz Signal
640Hz Signal
8kHz Signal
33kHz Signal
131kHz - Pulsed or Continuous Output Signal
- Three Signal Application Techniques:
Direct Connection / Wraparound / Induction - Automatic Daily Self Test
- Data Logging of all Transmitter activity
- Data Transfer by USB
- High resolution Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- In-built Accessory Tray
- Network Rail Approved
Data Logging and Calibration: Where Technology Meets Accountability
Comprehensive Data Logging
The MXT4 complements the MXL4 Locator's data logging capabilities, allowing for a year's worth of data storage. Data can be conveniently exported to a PC via a USB cable for detailed analysis.
Self-Calibration with Automatic Daily Self Test (ADST)
With a fully Automatic Daily Self Test (ADST), the MXT4 assures operators of its optimal performance, negating the need for periodic recalibration.
Additional User-Friendly Features
High-Resolution Backlit Display
The MXT4 features a large, high-resolution backlit LCD screen, protected by a polycarbonate lens. This provides operators with real-time information, including the Automatic Daily Self Test results.
Robust Construction
Built to last, the MXT4 boasts a durable twin-wall construction, affording it IP65 standard protection against dust and water ingress.

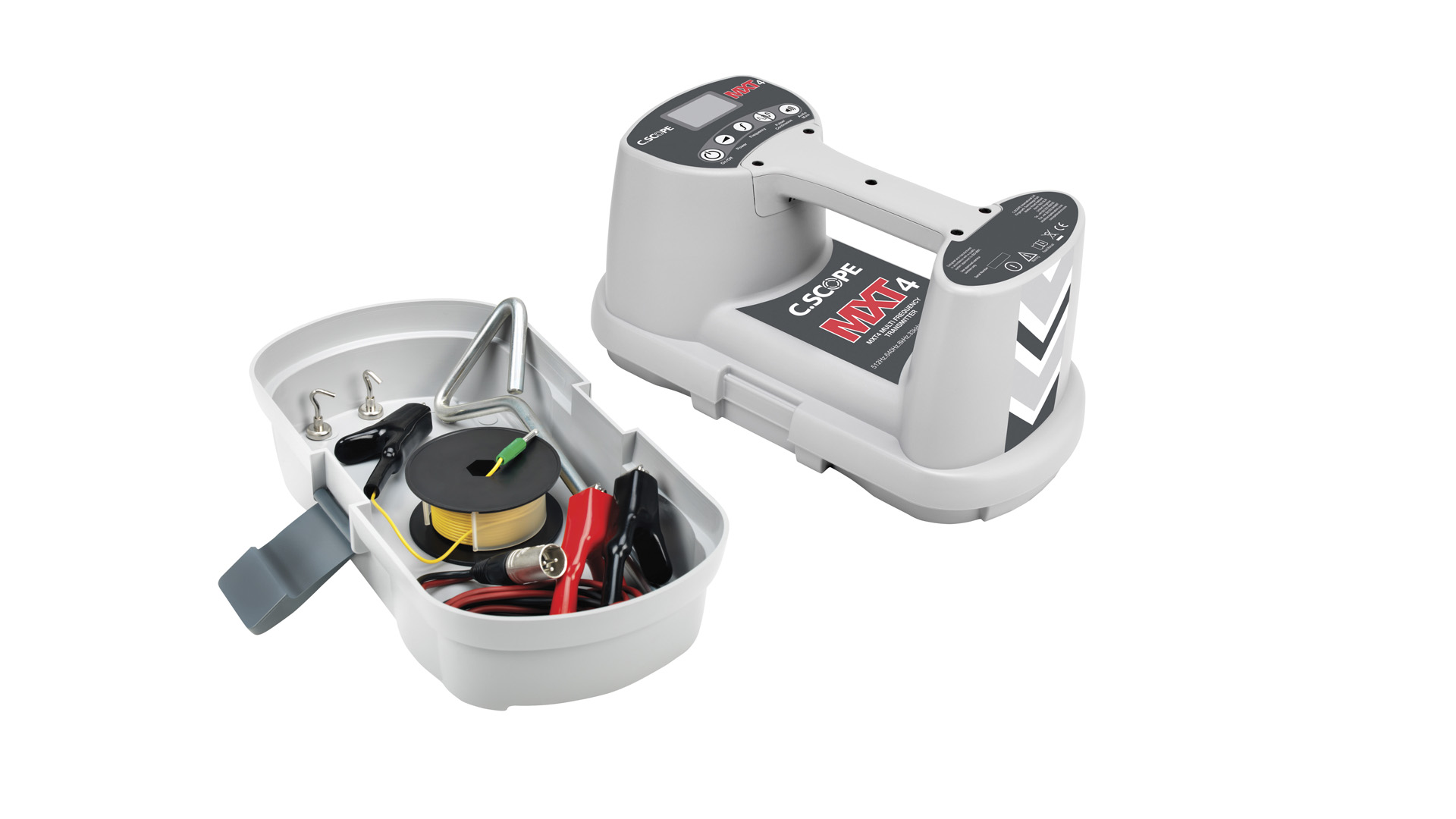

Accessory Tray: A Thoughtful Addition
An expansive, detachable accessory tray accommodates a wide range of standard and optional accessories, from Direct Connection Leads to Sondes and Signal Injectors.
Assurance and Quality: The MXT4 Warranty
A three-year warranty underlines C.Scope's confidence in the MXT4 Transmitter, giving users added peace of mind.
Conclusion: The MXT4 Transmitter as an Industry Standard

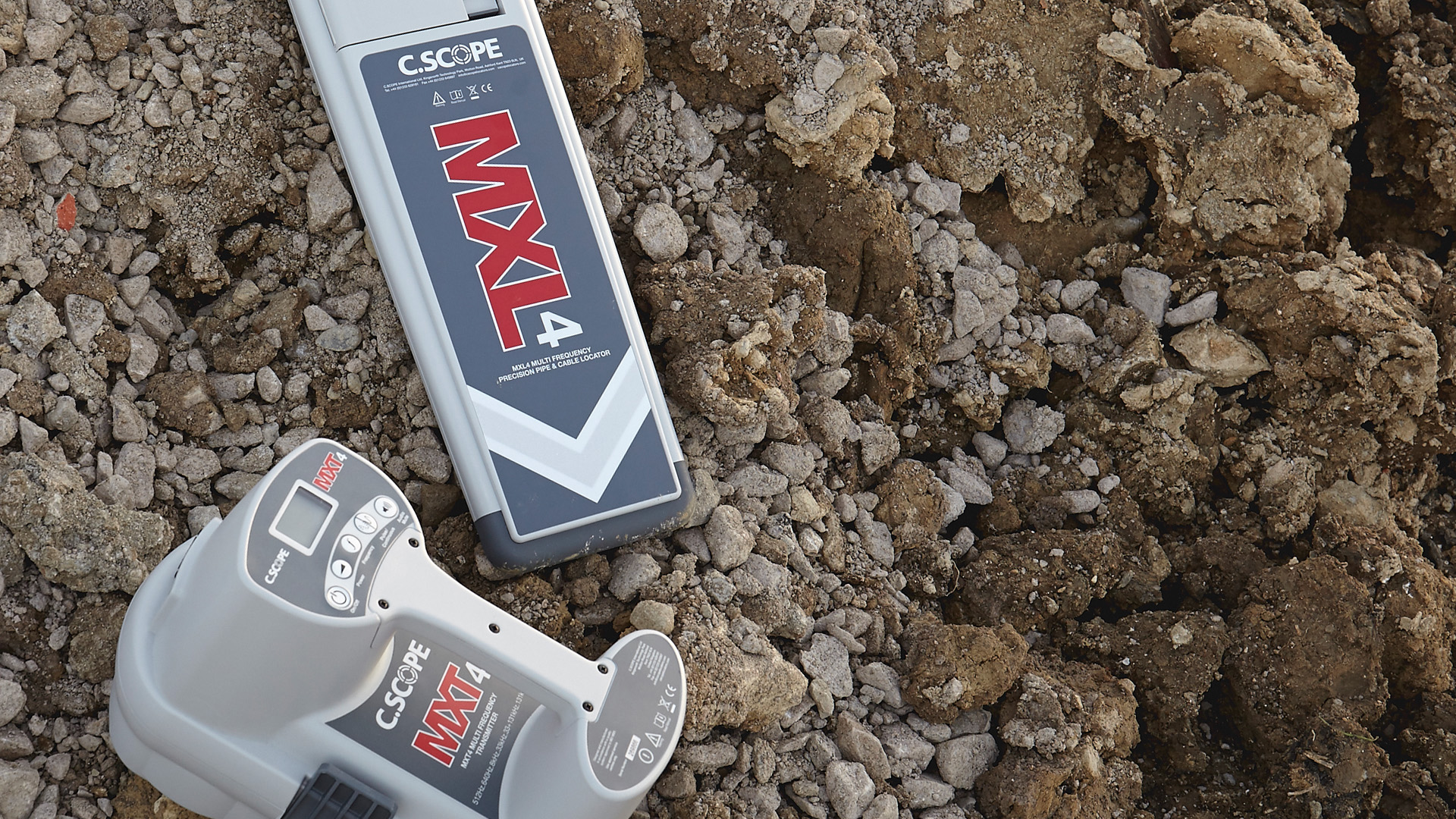

The C.Scope MXT4 Transmitter doesn't merely meet industry standards; it sets them. With its comprehensive feature set, including multi-frequency capabilities, versatile signal application methods, and robust construction, the MXT4 is an essential addition to any serious utility detection setup. When used in conjunction with the MXL4 Locator, the MXT4 offers a state-of-the-art solution for locating an extensive range of underground utilities, thereby significantly reducing the risks associated with inadvertent utility strikes.
Product name
MXT4 Transmitter
Part No.
MXT4-D

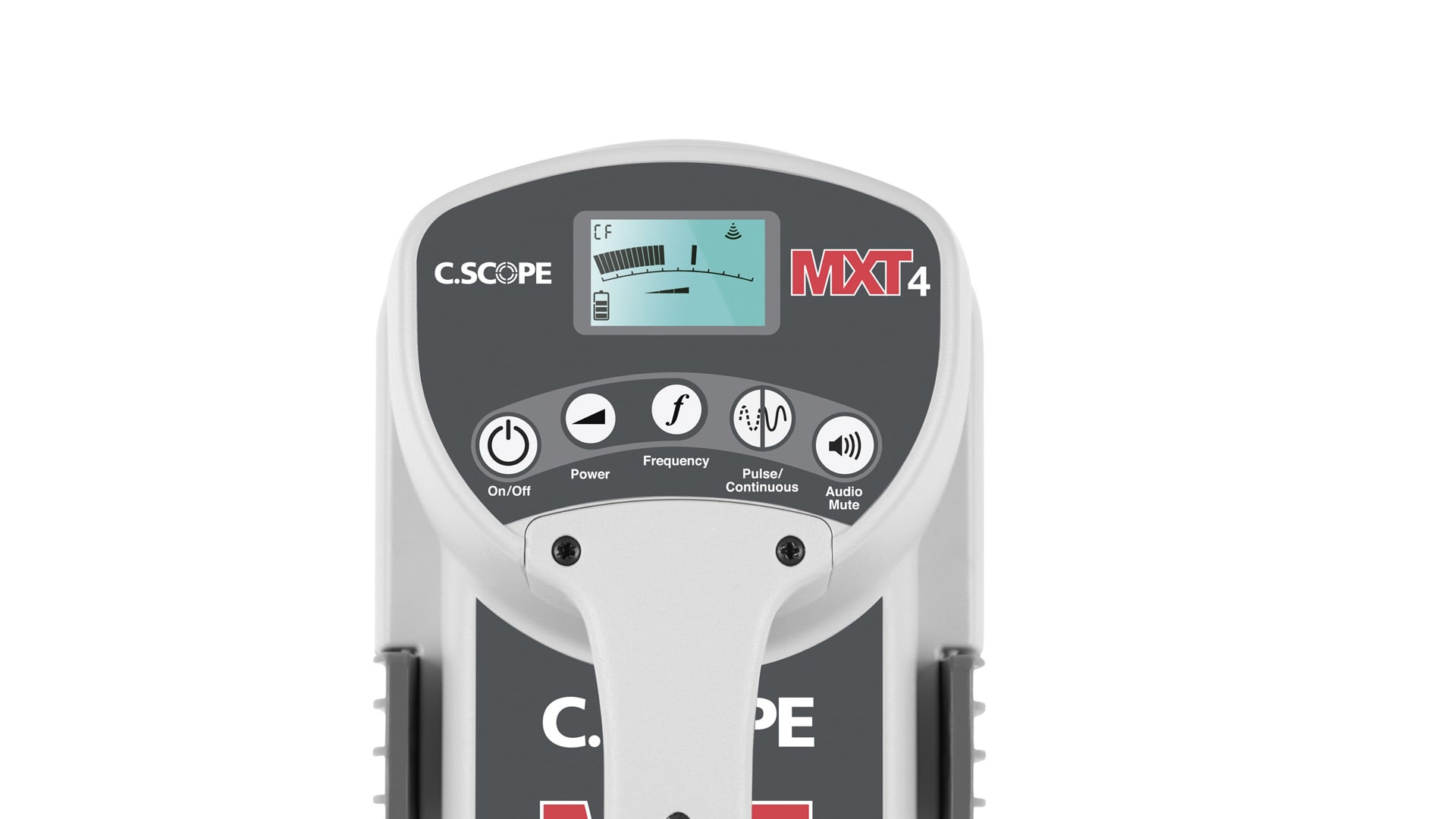

Controls
All operation is by push button control as follows:
- On/Off
- Power Level: Cycles through four available power levels
- Frequency: cycles through six available output frequencies
- Pulse/Continuous Output: toggles between pulse or continuous output using one push button
- Audio Output: toggles between loud, muted and silent audio output using one push button
Audio Indications
- Audio Feedback on button push
- Audio pitch drops with increasing load current in Connected Mode
- Audio pitch changes with power level in Induced Mode
- Audio output pulses to indicate Pulsed Mode
- Low battery indicated by interrupted Audio and output signal
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Output Frequency
- Pulse Mode
- Continuous Mode
- Battery Condition
- Output Level (bargraph)
- Speaker Mute
- Self Test Result
Data Connector
Standard USB Mini B connector. USB 2.0 Compatible
Self Test
Automatic Daily Self Test and manual Self Test function
Output
- Induced = 131.072kHz and 32.768kHz; 131.072kHz, 32.768kHz and 8.192kHz
- Connected = 131.072kHz and 32.768kHz; 131.072kHz, 32.768kHz; 8.192kHz; 640 and 512Hz
- Carrier Pulse Frequency: 7.5Hz (pulsed mode)
Connected Mode
- Connection Mode automatically selected when lead is plugged into socket
- Maximum Output Voltage (open circuit): 30V rms
- Maximum Output Current (short circuit): 65mA rms
- Maximum Power: 1W into 400Ω load
Construction
- Case moulded from high impact plastic.
- Designed to withstand 1m (3’3”) drop onto a hard surface
- Incorporates clip on accessory storage compartment
Weight (including batteries, Connection Leads and Earth Stake)
3.4kg (7 lb 7 oz)
Dimensions (with Accessory Tray fitted)
360mm x 180mm x 230mm (14.1” x 7” x 9”)
Battery Type
Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
up to 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Transmitters are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/53/EU (EMC). Compliance has been demonstrated by testing representative samples to the harmonised standards EN300-330 and EN301-489. The essential radio test suites have been carried out and the equipment is in conformity with all applicable directives. All C.Scope Transmitters comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Specification | MXT4 |
---|---|
One Watt Power | |
Four Power Levels | |
Transmitter Frequencies | |
– 33+131kHz (Connected and Induced) | |
– 131kHz (Connected and Induced) | |
– 33kHz (Connected and Induced) | |
– 8kHz (Connected and Induced) | |
– 512Hz (Connected) | |
– 640Hz (Connected) | |
Pulsed / Continuous Output Signal | |
Signal Connection Modes | |
– Direct Connection | |
– Wraparound | |
– Induction | |
Automatic Daily Self Test | |
Data Logging | |
Data Transfer via USB | |
High Resolution Backlit Liquid Crystal Display | |
No Periodic Calibration* | |
Three Year Warranty** | |
Batteries*** 4 x D (LR20) Alkaline or NiMH Rechargeable | |
In-Built Accessory Tray**** | |
IP65 |
* No Periodic Calibration. The MXT4 does not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. 4 x D LR20 Alkaline or NiMH Rechargeable batteries housed in a secure battery compartment.
**** In-Built Accessory Tray includes Direct Connection Lead, Auxiliary 10m Earth Lead, Connection Magnets, Earth Stake and Instruction Manual.
- 1 x MXT4 Transmitter
- 1 x Direct Connection Leads
- 1 x Connection Magnets
- 1 x Earth Stake
- 1 x Auxilliary 10 metre Earth Lead
