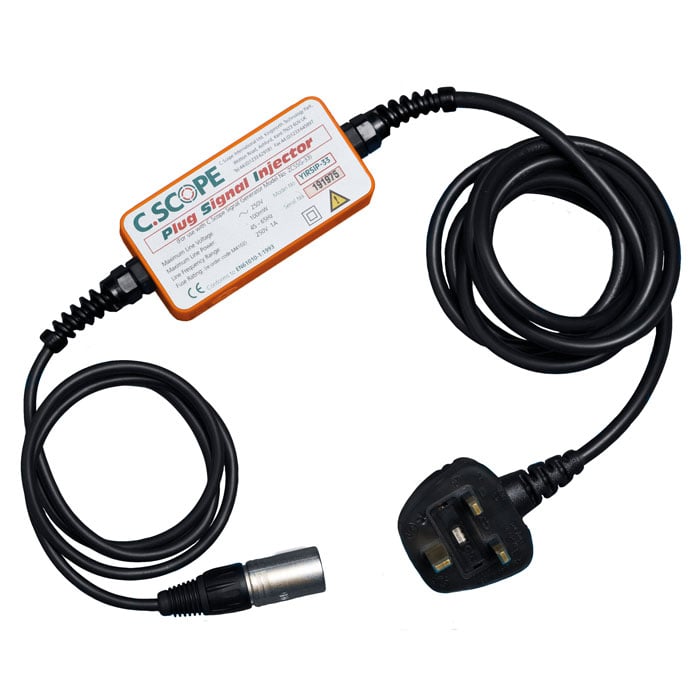

C.Scope YIRIP-33-8 Signal Injector | 33kHz Traceability | IP54 Rated

The C.Scope YIRIP-33-8 Signal Injector is designed to interface with C.Scope Signal Generators/Transmitters, facilitating the safe injection of a 33kHz signal into an electrical system through a standard 3-pin plug socket. This robustly encapsulated device enables any C.Scope Cable Locator to accurately trace signals within internal wiring or external supply lines located outside a building.

How does the C.Scope Signal Injector facilitate cable tracing?

The device introduces a 33kHz signal directly into an electrical circuit using a standard 3-pin plug. This allows for seamless detection by a locator in both internal supply cables and underground supply lines without direct contact with bare wires.

What environmental protection and safety standards does it meet?

The injector is IP54 rated, ensuring high resistance to both moisture and dust for reliable operation in industrial environments. It fully complies with BSEN61010-1:1993 and BSEN 61010-2-032:1995 safety standards for electrical testing equipment.

Which equipment is compatible with the YIRIP-33-8?

This accessory is designed for universal compatibility with all C.Scope Signal Generators. It serves as a vital tool for extending the tracing functionality of professional signal induction systems.

Manufacturer	C.Scope
SKU	YIRIP-33-8
Operating Frequency	33kHz
Connection Type	3-Pin Plug Socket
Environmental Rating	IP54
Safety Standards	BSEN61010-1:1993, BSEN 61010-2-032:1995
Housing	Encapsulated robust casing

• Pair with the C.Scope SGA OR SGV Signal Generator for standard utility detection.
• Compatible with precision detection using the C Scope Cat 33 Cable Avoidance Tool.

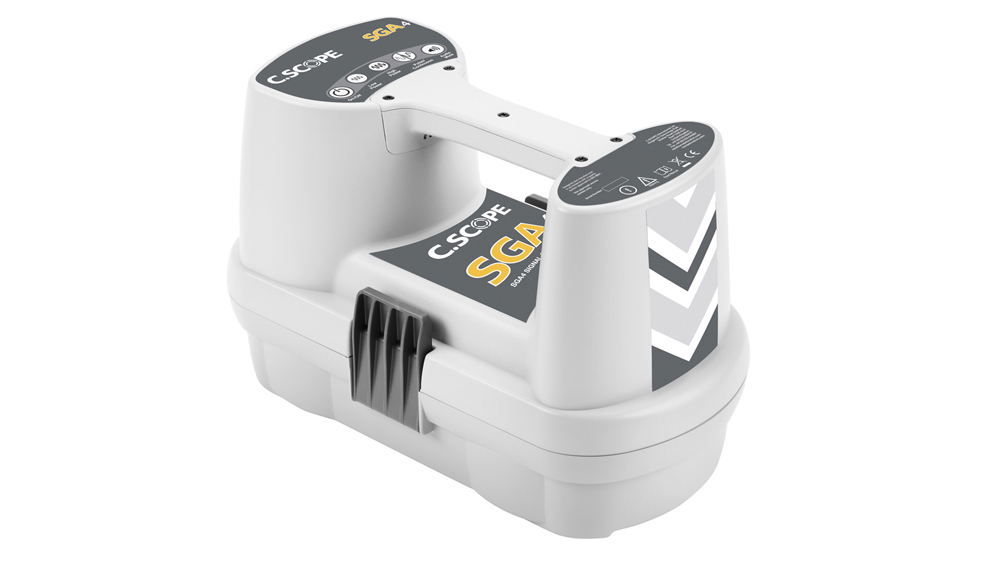

• Enhanced performance when used with the C.Scope SGA4 Signal Generator.
• Connects to the C.Scope SGV4 Signal Generator with Data Logging for documented utility surveys.
