C.Scope SGV4 Signal Generator with Data Logging
Icon | Label | Download |
---|---|---|
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download |
Key Features of SGV4 Signal Generator:
- Dual-Frequency Signal Output: SGV4 offers a simultaneous 33kHz and 131kHz signal output, enabling more efficient and accurate detection of a wide array of buried utilities without the need for direct connections.
- Versatile Signal Applications: From Direct Connection and Wraparound to Induction, SGV4 provides multiple techniques for utility detection, each serving unique scenarios and enhancing the device's overall versatility.
Package Contents |
|
---|
Take your utility detection capabilities up a notch with the SGV4 Signal Generator. Specifically designed to work in synergy with C.Scope's CXL4 or DXL4 Cable Avoidance Tools, the SGV4 provides an enhanced spectrum for detecting a multitude of underground utilities, including those as specialized as street lighting cables.
How SGV4 Transforms Utility Detection
Simultaneous Dual-Frequency: SGV4's Unique Selling Point
One of the major advantages of the SGV4 Signal Generator is its dual-frequency signal output, operating at 33kHz and 131kHz. This feature allows for the energizing and detection of a greater range of buried services, even without the need for direct connections. Utilizing either a Signal Clamp or simple induction from ground level, the SGV4 significantly improves the detection accuracy for smaller diameter or poorly earthed cables.
Three Signal Application Techniques with SGV4
The SGV4 offers three alternative methods to apply a Signal Generator signal:
Direct Connection: Best for precise tracing of individual pipes or cables, complete with depth measurements.
Wraparound: This technique is suitable when Direct Connection is inconvenient, allowing the energizing of street or car park lighting cables.
Induction: When you’re dealing with previously undetected or inaccessible underground utilities, this method can be invaluable.
Using a Signal Generator
SGV4 Features for Business Excellence
High-Power Signal Customization
With its adjustable One Watt Power Output, the SGV4 enables effective energization and tracing of deeper and less conductive utilities over extended distances. It comes with a four-position power level adjustment, giving operators complete control over power usage.
Pulsed/Continuous Signal Output in SGV4
Operators have the flexibility to switch between Pulsed and Continuous modes, making it easier to keep tracing in high-interference environments. An added audible signal output is built into the SGV4 to alert the operator when the device is functioning.
In-Built Audio Mute Control
A useful audio mute control is integrated within the SGV4 for added operational convenience.
Data Logging Capability
What sets the SGV4 apart is its full data logging capability, which can hold up to a year's worth of data for both the Locator and Signal Generator. This data can be transferred via USB to a supervisor's PC for comprehensive analysis.
Business Applications of SGV4
- Construction Site Management
- Utility Infrastructure Monitoring
- Telecommunication Systems
- Environmental Analysis
- Emergency Service Operations
- Mining Applications
- Agriculture and Land Use Planning
- Real Estate Projects
- Educational Training in Engineering
- Public Infrastructure Development
Durability and Robustness: The Construction of SGV4
IP65 Standard Protection and High-Resolution Backlit Digital Display
The SGV4 is designed with a durable twin-wall construction and IP65 standard protection against dust and water. It features a high-resolution backlit LCD display that indicates various functionalities, power levels, and test results.
Versatile Accessory Tray in SGV4
The SGV4 comes with a large, detachable accessory tray, which can conveniently house not only standard accessories but also various optional extras like Signal Clamps and Signal Injectors.
Quality Assurance and Support
SGV4 Warranty and Certification
The product comes with a three-year warranty (conditions apply). It also performs an Automatic Daily Self Test (ADST) and stores these results, which can be downloaded and used for creating a Product Validation Certificate.
Conclusion
The SGV4 Signal Generator sets a new standard for comprehensive and reliable utility detection. Its range of features from dual-frequency signals to data logging capability makes it an indispensable tool for any serious operation. SGV4 doesn’t just complement your CXL4 or DXL4 Cable Avoidance Tools; it elevates them. With SGV4, you're taking a significant step forward in utility detection excellence.
Product name
SGV4 Signal Generator
Part No.
SGV4

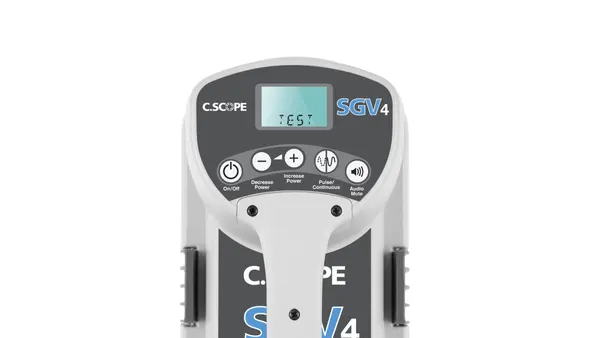

Controls
All operation is by push button control as follows:
- On/Off
- Power Level: 4 available power levels via Increase and Decrease Power buttons
- Pulse/Continuous Output: toggles between pulse or continuous output using one push button
- Audio Output: toggles between loud, muted and silent audio output using one push button
Audio Indications
- Audio Feedback on button push
- Audio pitch drops with increasing load current in Connected Mode
- Audio pitch changes with power level in Induced Mode
- Audio output pulses to indicate Pulsed Mode
- Low battery indicated by interrupted Audio and output signal
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Output Frequency
- Pulse Mode
- Continuous Mode
- Battery Condition
- Output Level (bargraph)
- Speaker Mute
- Self Test Result
Data Connector
Standard USB Mini B connector. USB 2.0 Compatible
Self Test
Automatic Daily Self Test and manual Self Test function
Output
- Induced = 131.072kHz and 32.768kHz
- Connected = 131.072kHz and 32.768kHz
- Carrier Pulse Frequency: 7.5Hz (pulsed mode)
Connected Mode
- Connection Mode automatically selected when lead is plugged into socket
- Maximum Output Voltage (open circuit): 28V rms
- Maximum Output Current (short circuit): 65mA rms
- Maximum Power: 1W into 400Ω load
Construction
- Case moulded from high impact plastic
- Designed to withstand 1m (3’3”) drop onto a hard surface
- Incorporates clip on accessory storage compartment
Weight (including batteries, Connection Leads and Earth Stake
3.4kg (7 lb 7 oz)
Dimensions (with Accessory Tray fitted)
360mm x 180mm x 230mm (14.1” x 7” x 9”)
Battery Type
Internal 4 x ‘D’ (LR20) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
up to 40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Signal Generators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/53/EU (EMC). Compliance has been demonstrated by testing representative samples to the harmonised standards EN300-330 and EN301-489. The essential radio test suites have been carried out and the equipment is in conformity with all applicable directives. All C.Scope Signal Generators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Unit Features | SGV-4 |
---|---|
One Watt Power | |
Power Levels | 4 |
Generator / Transmitter Frequencies | |
– 33+131kHz (Connected and Induced) | |
– 131kHz (Connected and Induced) | |
– 33kHz (Connected and Induced) | |
– 8kHz (Connected and Induced) | |
– 512Hz (Connected) | |
– 640Hz (Connected) | |
Pulsed / Continuous Output Signal | |
Signal Connection Modes | |
– Direct Connection | |
– Wraparound | |
– Induction | |
Automatic Daily Self Test | |
Data Logging | |
Data Transfer via USB | |
High Resolution Backlit Liquid Crystal Display | |
No Periodic Calibration* | |
Three Year Warranty** | |
Batteries*** 4 x D (LR20) Alkaline or NiMH Rechargeable | |
In-Built Accessory Tray**** | |
IP65 |
* No Periodic Calibration. The SGV4 does not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. 4 x D LR20 Alkaline or NiMH Rechargeable batteries housed in a secure battery compartment.
**** In-Built Accessory Tray includes Direct Connection Lead, Auxiliary 10m Earth Lead, Connection Magnets, Earth Stake and Instruction Manual
- 1 x SGV4 Signal Generator
- 1 x Direct Connection Leads
- 1 x Connection Magnets
- 1 x Earth Stake
- 1 x Auxilliary 10 metre Earth Lead
