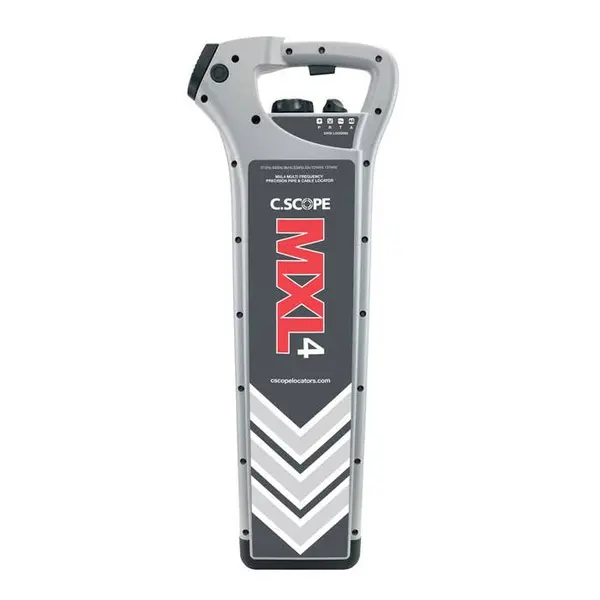

C.Scope MXL4-DBG Precision Locator
Icon | Label | Download |
---|---|---|
C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual | Download |
Key features of the MXL4-DBG Locator
- High Sensitivity: Advanced noise rejection and sensitivity for detecting weak signals.
- Multi-Frequency: Compatible with a broad range of transmitting frequencies for versatile utility tracing.
- One-Click Depth Measurement: Instantly measures the depth of buried utilities for improved survey quality.
- Network Rail Approved: Complies with rigorous industry standards suitable for railway applications.
- Built-in GPS: Enables precise geographical mapping and is compatible with third-party GPS equipment.
Package Contents |
---|
The C.Scope MXL4-DBG Precision Locator marks a transformational advancement in the realm of utility detection, setting a new standard for accuracy and adaptability. Complementing the MXT4 Transmitter, the MXL4-DBG brings data logging, Bluetooth™ connectivity, and GPS features into one compact and efficient unit. This synthesis of features represents the epitome of high-end precision performance in the detection and tracing of pipes and cables.
Enhanced Performance & Multi-Frequency Compatibility
Unparalleled Performance
The MXL4-DBG stands out for its ability to quickly and accurately detect, trace, pinpoint, and identify a vast range of underground utilities. With optimized locator sensitivity and noise rejection, it excels in handling high levels of background interference, allowing for the detection of even the weakest signals.
Multi-Frequency Innovation

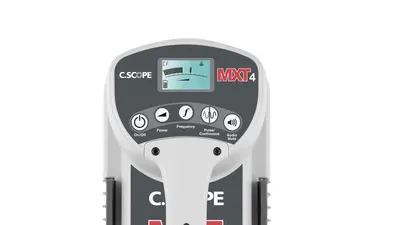

The MXL4-DBG and its counterpart, the MXT4 Transmitter, bring an impressive range of transmitting frequencies to the table. These facilitate long-distance tracing and utility identification, even on congested sites, with frequencies ranging from 512/640Hz to 131kHz.
Depth & Signal Measurement: Beyond Surface-Level Detection
One-Click Depth Measurement
When paired with the MXT4 Transmitter, the MXL4-DBG can measure and indicate the depth of buried utilities at the push of a button, thereby reducing errors and enhancing survey quality.
Signal Current Measurement
The device can monitor the true strength of the MXT4 Transmitter signal applied to any underground utility, regardless of its depth. This feature is pivotal for deciphering the layout of complex utility networks.
Intelligent Features: Smart Locating in Real Time
AlarmZone™
This unique feature alerts operators to particularly shallow pipes or cables, with adjustable trigger depths to accommodate varying local conditions.
Dynamic SwingSensor
This feature mitigates the risk of inaccurate locates by alerting operators if the locator is being swung excessively during operation.
PeakHold
Designed for precision, PeakHold empowers operators to pinpoint the exact location of buried utilities with unprecedented confidence.
Using a C.Scope Locator In Radio Mode
MXT4-DBG Features Overview
- Power Mode
- Radio Mode
- Transmitter Mode:
Simultaneous 33+131kHz signal detection for utility avoidance
33kHz signal detection for all purpose tracing and utility avoidance
131kHz for optimum detection of short length, small diameter or unearthed cables
8kHz signal detection for tracing over longer distances
Ultra low 512Hz signal detection for specialist tracing
Ultra low 640Hz signal detection for specialist tracing - All Scan Mode
- Accurate Depth Indication
- Signal Current Measurement
- Overload Protection
- Alarm ZoneTM
- Peak Hold
- Dynamic Swing Sensor
- Automatic Daily Self Test
- Data Logging of all Locator activity
- Data Transfer by USB (BluetoothTM option)
- In-Build GPS position logging (optional)
- Connectivity to Survey level GPS products (option)
- High resolution Liquid Crystal Display
- No periodic Calibration required
- Product Validation Certificate available
- Network Rail Approved
Comprehensive Data Logging & Analysis
Data Logging and Transfer
Both the MXL4-D and MXL4-DBG offer full data logging capabilities, storing up to a year's worth of data. This data can be transferred via USB or wirelessly via Bluetooth™ for in-depth analysis.
Data Analysis with C.Scope Toolkit & Relay App
These free-to-download software tools convert stored logs into charts and graphs, facilitating training and operational improvements.
Built-in GPS & Third-Party Compatibility
GPS Functionality
The MXL4-DBG’s built-in GPS functionality allows for the precise geographical mapping of all activities, which can be viewed on platforms like Google Earth™ or Google Maps™.
Compatibility with Third-Party GPS
In addition, the MXL4-DBG can be paired with third-party GPS survey equipment via Bluetooth™, streamlining underground utility surveys in one efficient pass.
Calibration and Daily Self Tests: Quality Assurance Guaranteed
No Periodic Recalibration
The device undergoes an Automatic Daily Self Test (ADST), making periodic recalibration unnecessary.
Product Validation Certification
With the C.Scope PC Toolkit, you can generate a Product Validation Certificate based on the ADST results. Authorized service centers also offer third-party certifications to meet diverse client needs.
Additional Features for Robust Usability
High-Resolution Backlit Digital Display
The device features a large, easy-to-read backlit LCD with a protective polycarbonate lens.
Detachable Speaker
Ideal for noisy environments, the device comes with a detachable speaker for flexible usability.
Durable Construction
Robust twin-wall construction and IP65 protection against dust and water ingress make it resilient for fieldwork.
Service & Warranty
A comprehensive service & maintenance package is available, and the product comes with a three-year warranty (conditions apply).
Conclusion
The C.Scope MXL4-DBG Precision Locator redefines the standards for utility locating technologies. Its rich feature set, combined with high-end performance capabilities and intelligent real-time functions, establishes it as a must-have tool for anyone serious about utility detection and surveying. When used in concert with the MXT4 Transmitter, it offers an integrated solution that stands as an industry best, significantly mitigating the risks of accidental utility strikes and paving the way for more efficient and safer construction projects.
The MXL4 Multi Frequency Locator is available in two model types:
- MXL4-D Precision Locator
The C.Scope MXL4-D is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging. - MXL4-DBG Precision Locator
The C.Scope MXL4-DBG is a high performance digital multi-frequency Precision Pipe & Cable Locator with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.
Both these products are designed for use with an MXT4 Multi Frequency Transmitter.
Product name
MXL4 Precision Locator
Part Nos.
- MXL4-D
- MXL4-DBG
Controls
- On/Off Switch: Spring loaded trigger switch under handle
- Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; T. Transmitter Mode; A. AllScan Mode
- Sensitivity Control
- Depth Measurement Button. Push button for live display of depth
- Current Measurement Button. Pushbutton for live display of Transmitter current
- Frequency Select Button. Pushbutton for Transmitter Mode frequency selection
Audio Indication
Removable and user replaceable loudspeaker module
Visual Indication
Multi-segment Liquid Crystal Display indicating:
- Signal Strength
- Mode selected
- AlarmZone™
- Battery Condition
- Self Test Indicator
- In Transmitter Mode, Frequency selected; Depth Measurement; Signal Current Measurement
- GPS signal detected (MXL4-DBG only)
- Bluetooth™ activated (MXL4-DBG only)
Data Logging
Internal capacity for storing over 12months of data (in normal use) logged once per second. Data logged includes:
- Time/Date
- Mode Sensitivity Level
- Received Signal Level
- Frequency Depth
- Signal Current Measurement
- Self Test Result
- Swing Indicator
- GPS position (MXL4-DBG only)
Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)
GPS
GPS/QZSS/GLONASS/SBAS
Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible
Self Test
Automatic Daily Self Test
Swing Indicator
Audio beep to indicate incorrect use of the Locator
Transmitter Mode Frequencies
Simultaneous 131.072kHz and 32.768kHz; 131.072kHz, 32.768kHz; 8.192kHz; 640 and 512Hz
Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface
Weight (including batteries)
2.65kg (5lb 13oz)
Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)
Performance
- Locate Accuracy: better than 10% of depth
- Depth Accuracy: ±5% @ 1m (3’3”)
- Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
- Line Depth Resolution: 0.1m (0.4”)
- Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
- Sonde Depth Resolution: 0.1m (0.4”)
- Current Measurement: 0.01mA to 100mA
Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)
Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells
IP Rating
65
Network Rail Approved
Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).
Features | MXL4-D | MXL-4DBG |
---|---|---|
Power Mode | ||
Radio Mode | ||
Generator / Transmitter Mode | ||
– 33+131kHz | ||
– 131kHz | ||
– 33kHz | ||
– 8kHz | ||
– 512Hz | ||
– 640Hz | ||
AllScan Mode | ||
Accurate Depth Indication | ||
Signal Current Measurement | ||
Overload Protection | ||
AlarmZone™ | ||
Peak Hold | ||
Dynamic Swing Sensor | ||
Automatic Daily Self Test | ||
Product Validation Certificate | ||
Data Logging | ||
Data Logging Rate – once per second | ||
2GB Memory | ||
Data Transfer via USB | ||
Data Transfer via Bluetooth™ | ||
In-Built GPS position logging | ||
High Resolution Backlit Liquid Crystal Display | ||
No Periodic Calibration* | ||
Three Year Warranty** | ||
Batteries*** 8 x AA (LR6 Alkaline or NiMH Rechargeable) | ||
IP65 |
Performance | Frequency | Sensitivity | @ 1m depth | Detection Depth (max) |
---|---|---|---|---|
Power | 50-400Hz | 5mA | 1m | 3m |
Radio | 10kHz-30kHz | 25µA | 1m | 2m |
Transmitter – 33+131kHz | 33+131kHz | 5µA | 1m | 5m |
Transmitter – 131kHz | 131kHz | 5µA | 1m | 5m |
Transmitter – 33kHz | 33kHz | 5µA | 1m | 5m |
Transmitter – 8kHz | 8kHz | 100µA | 1m | 5m |
Transmitter – 512Hz | 512Hz | 100µA | 1m | 5m |
Transmitter – 640Hz | 640Hz | 100µA | 1m | 5m |
AllScan | 50Hz-33kHz | 100µA | 1m | 3m |
Sonde – 33Hz | 33Hz | – | 1m | 7m |
Sonde – 8Hz | 8Hz | – | 1m | 7m |
Sonde – 512Hz | 512Hz | – | 1m | 5m |
Sonde – 640Hz | 640Hz | – | 1m | 5m |
Rodding Oscillator | 33kHz | – | 1m | 4.5m |
Traceable Rodder – Line | 33kHz | – | 1m | 3m |
Traceable Rodder – Tip / Sonde | 33kHz | – | 1m | 4m |
Feature | Specification |
---|---|
Depth Measurement Range - Line | 0.2m – 3.0m |
Depth Measurement Range - Sonde | 0.25m – 9.9m |
Depth Accuracy | +/- 5% of depth |
GPS - Acquisition Time – Cold Start | 30s |
GPS - Acquisition Time – Hot Start | 1s |
GPS - No. of Channels | 56 |
GPS - Accuracy | 2m |
GPS - Supported Systems | GPS, SBAS, QZSS, Galileo, GLONASS |
Bluetooth™ - Version | v2.1 (for Android) and v4.0 (for Apple iOS) |
Bluetooth™ - Supported Systems | PC, Android and Apple iOS |
Bluetooth™ - Range | 30m |
Bluetooth™ - Transfer Rate | 350kbps |
* No Periodic Calibration. The MXL4 Locators do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.
** Three Year warranty. Conditions apply.
*** Batteries. The MXL4 Locators use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder.
