C.Scope 80m Flexible Tracer 33kHz
C.Scope 80 Metre Flexible Tracer 33kHz Key Features
- Pinpoint Accuracy for Route and Blockages: Ideal for use with any C.Scope Cable Locator and Signal Generator for precise location.
- Depth Measurement Capability: Provides an extra layer of crucial information for maintenance or repair work.
Package Contents | C.Scope 80m Flexible Tracer |
---|
The 80 Metre Flexible Tracer 33kHz is a specialized system designed for tracing small diameter, non-metallic pipes, ducts, sewers, and drains. With an 80-meter long fibreglass rod, this system is ideal for use with any C.Scope Cable Avoidance Tool and Signal Generator.
Why Choose the 80 Metre Flexible Tracer 33kHz?
Pinpoint Accuracy for Route and Blockages
When used with any C.Scope Cable Locator and Signal Generator, the Flexible Tracer allows you to pinpoint both the route of a non-metallic pipe and any blockages or obstructions within it.
Depth Measurement Capability
If you're using a depth measuring Locator, you can also determine the depth of the pipe or blockage, providing an extra layer of information that can be crucial for maintenance or repair work.
Continuous Operation with Signal Generator
The axle of the reel has a slip-ring that allows the Signal Generator to remain connected to the Flexible Tracer's terminals while it's being inserted into the pipe, ensuring continuous operation.
Key Features
Built-in Sonde for Endpoint Location
A tiny Sonde is built into the tip of the Flexible Tracer, allowing you to also locate the end point of the Tracer. This Sonde is flexible, adding to the system's versatility.
Durable Fiberglass Rod

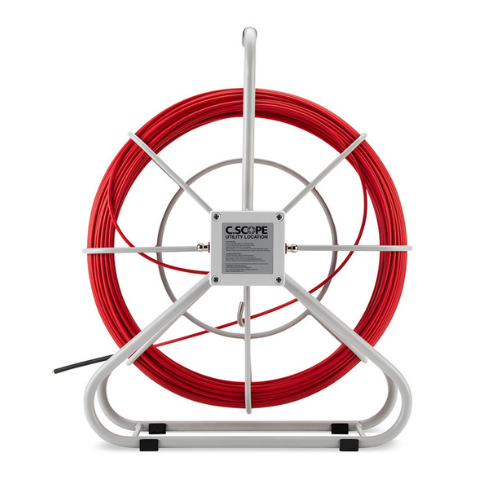

The Flexible Tracer comprises a continuous fiberglass rod housed in a reel that rotates on an axle, ensuring durability and long-lasting performance.
Effective for Small Diameter Pipes
The system is highly effective at locating and tracing the route of small diameter, non-metallic ducts, pipes, sewers, and drains.
Conclusion
The 80 Metre Flexible Tracer 33kHz is a versatile and efficient system for tracing small diameter, non-metallic pipes. With its durable construction, user-friendly features, and ability to provide precise and comprehensive results, it is an excellent choice for professionals in the utility tracing and pipe inspection sectors. Opt for the 80 Metre Flexible Tracer 33kHz for a reliable and precise pipe tracing solution.
Specification | Details |
---|---|
Product Name | 80 m Flexible Tracer (260’) |
Part No. | YIRRFT-80 |
Frequency | Optimised for 32,768Hz |
Line Detection Depth Range | 3m (10 foot) dependent upon Locator and Signal Generator type and site conditions |
Tip Detection Depth Range | 4m (13 foot) dependent upon Locator and Signal Generator type and site conditions |
Compatibility | Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output |
Rod Length | 80 m (260’) |
Rod Diameter | 5 mm nominal (0.2”) |
Rod Material | Quality sleeved fibreglass rod with three integral copper wires |
Rod Minimum Bend Radius | 10cm (3.9”) reducing to 15cm (5.9”), 5cm (1.9”) from Tip |
Rod Wire Diameter | 0.45 mm each wire (0.018”) |
Tip Length | 160mm (6.3”) |
Tip Diameter | 9.5mm (0.37”) |
Tip Material | Brass |
Frame Size | 58.8 x 28.8 x 48.5cm (1’11” x 11.3” x 1’7”) |
Frame Material | Powder coated 16 mm steel tube (0.6”) |
Reel Diameter | 48cm (1’7”) |
Weight | 7.5kg (16 pound 8.5 ounces) |
Slip Ring Assembly | Sealed multi-wire duplexed |
Operational Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF) |
Storage Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF) |
IP Rating for Tracer Rod & Tip | 68 |
IP Rating for Casing | 54 |
IP Rating for Terminal Box | 66 |
