C.Scope Plastic Pipe Tracer 20m AND 50m
C.Scope Plastic Pipe Tracers Key Features
- Designed for Small Diameter Pipes: Specifically engineered for pipes less than 2" or 50mm in diameter.
- Dual Tracing Capabilities: Allows both line tracing and end tracing, providing comprehensive information.
Package Contents | Dependoing on your selection from the options, either:
|
---|
The C.Scope Plastic Pipe Tracers are uniquely designed to trace SMALL diameter, non-metallic pipes, offering unparalleled reliability and precision. Available in 20m and 50m lengths, these tracers are the smallest diameter product on the market, capable of fitting into pipes where standard tracers won't.
Why Choose C.Scope Plastic Pipe Tracers?
Designed for Small Diameter Pipes
These tracers are specifically engineered for pipes less than 2" or 50mm in diameter, where standard-sized Sondes are too large to fit or navigate through tight bends.
Dual Tracing Capabilities
Thanks to the remarkable Sonde technology housed at the tip, C.Scope Plastic Pipe Tracers allow both line tracing and end tracing, providing comprehensive information about the pipe's route and any blockages.
Industry-Backed Innovation
Developed in response to the British gas industry's need for tracing small diameter non-metallic pipes, these tracers feature the world's smallest Sonde, moulded into the tip of 6mm diameter plastic pipe tubing.
Key Features
Compact and Lightweight Reel
Stored on a compact reel that weighs less than 2kg, these tracers are easy to transport and handle, making them the ideal solution for small diameter non-metallic pipe tracing.
Universal Compatibility
These tracers can be used with any Pipe and Cable Locator and Signal Generator operating at 33kHz, offering flexibility in various applications.
Depth Identification
Both the line of the pipe and the end point can be quickly and accurately identified at depths up to 4 metres, providing valuable data for utility tracing and pipe inspection tasks.
Conclusion
The C.Scope Plastic Pipe Tracers, available in 20m and 50m lengths, stand out as the go-to solution for tracing small diameter, non-metallic pipes. With their unique construction, dual tracing capabilities, and industry-backed innovation, they offer unparalleled reliability and precision. Whether you're a utility contractor or involved in pipe inspection, these tracers provide an efficient and accurate solution for your needs. Choose C.Scope Plastic Pipe Tracers for unmatched performance in small diameter pipe tracing.
20m and 50m Plastic Pipe Tracer (65’ and 160’) | |
---|---|

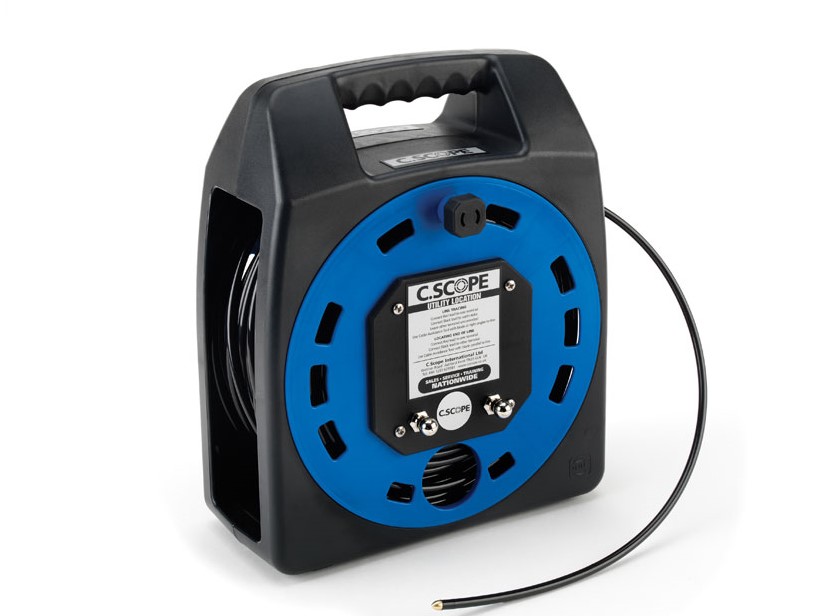

Part No. | YIRPPT20-33 and YIRPPT50-33 |
Frequency | Operates at 32,768Hz |
Detection Depth Range: Line Detection | 3m (10 foot) dependent upon Locator and Signal Generator type and site conditions |
Detection Depth Range: Tip Detection | 4m (13 foot) dependent upon Locator and Signal Generator type and site conditions |
Compatibility | Any Signal Generator or Transmitter with 33kHz or 33/131kHz combined output |
Rod Length | 20m or 50m (65’ and 160’) |
Rod and Sonde Diameter | 6mm (0.2”) |
Rod Minimum Bend Radius | 50mm (1.9”) |
Construction: Reel | Robust plastic housing |
Construction: Rod | Flexible, chemical resistant plastic |
Reel dimensions (20m) | 150 x 120 x 250mm (5.9” x 4.7” x 9.8”) |
Reel dimensions (50m) | 165 x 290 x 240mm (6.5” x 11.4” x 9.4”) |
Reel weight (20m) | 1248g (2 pound 12 ounces) |
Reel weight (50m) | 2073g (4 pound 8.5 ounces) |
Operational Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF) |
Storage Temperature Range | -20ºC to 50ºC (-4ºF to 122ºF) |
IP rating for actual Tracer Rod & Tip | 68 |
IP rating for Plastic Pipe Tracer Casing | 54 |
Dependoing on your selection from the options, either:
- C.Scope Plastic Pipe Tracer 20m
- C.Scope Plastic Pipe Tracer 50m
