C.Scope DXL4-DBG Data Logging, Depth, GPS, Bluetooth

Name: C.Scope DXL4-DBG Data Logging, Depth, GPS, Bluetooth
SKU: DXL4CAT-DBG
Price: 1040.400001 GBP
Availability: InStock

Special Price £1,040.40 £867.00 Regular Price £1,734.00

In stock

SKU

DXL4CAT-DBG

Icon	Label	Download
	C.Scope MXL4, CXL4, DXL4, SGA4, SGV4 Manual	Download

Cable and Pipe Detection with the DXL4-DBG

Superior Performance: Enhanced across all four key detection modes.
Accurate Depth Measurement: Precise depth calculation when used with an SGA4 or SGV4 Signal Generator.
Dual-Frequency Output: Equipped with simultaneous dual-frequency signal output.
Comprehensive Data Logging: Features extensive data logging and seamless transfer via Bluetooth™ and USB.
Geolocation Capabilities: Integrated GPS for tracking and Google Earth™ compatibility.

More Information
Package Contents	1 x C.Scope DXL4-DBLG Data Logging and Depth Model GPS and Bluetooth

Skip to the end of the images gallery

Skip to the beginning of the images gallery

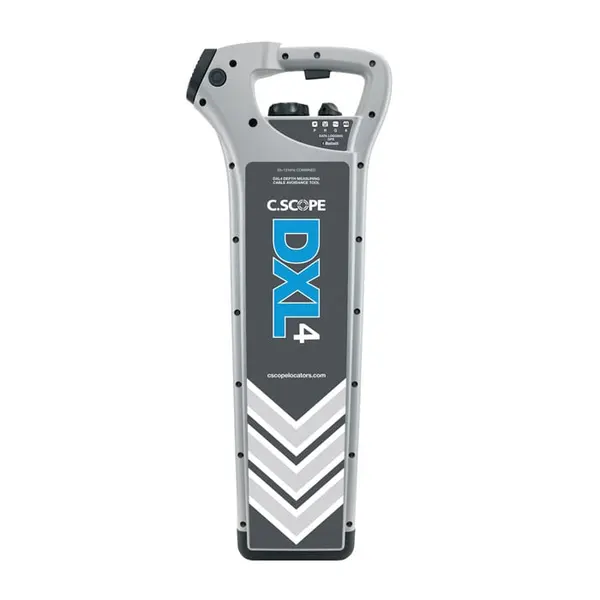

Step into the next generation of cable locating solutions with the DXL4-DBG by C.Scope. This advanced Cable Avoidance Tool boasts not only full data logging capabilities but also Bluetooth™ connectivity and GPS features. From new, intelligent functions to enhancements across all detection modes, the DXL4-DBG is the all-in-one device designed to transform the cable and pipe locating industry.

Superior Performance in Every Mode

Four Enhanced Detection Modes in DXL4-DBG

The DXL4-DBG takes performance to new heights with its comprehensive improvements across all key detection methods: Power, Radio, Generator, and AllScan. Its easy-to-use interface minimizes the learning curve, allowing you to get the most out of the device with minimal training.

Accurate and Convenient Depth Measurement

Measure Depth with Precision using the DXL4-DBG

When used in conjunction with an SGA4 or SGV4 Signal Generator, the DXL4-DBG not only locates but also measures the depth of buried utilities. Eliminate guesswork and confidently ascertain the depth of underground pipes, cables, and sondes with just a button press.

Dual-Frequency: The Game-Changer

Simultaneous Dual-Frequency Output for Robust Detection

The DXL4-DBG is equipped with a simultaneous dual-frequency signal output—featuring 33kHz and 131kHz frequencies—making it extraordinarily effective in locating a broader array of underground utilities, including smaller diameter and poorly earthed cables.

Using a DXL4 In Radio Mode

Innovative Overload Protection

Navigate Noisy Environments with the DXL4-DBG

With state-of-the-art locator sensitivity and noise rejection, the DXL4-DBG Cable Avoidance Tool efficiently handles high levels of interference, ensuring that even the weakest signals are detected effortlessly.

Smart Features for Enhanced Reliability

AlarmZone™ and Dynamic SwingSensor

The DXL4-DBG integrates innovative features such as AlarmZone™, which warns operators about the presence of shallow underground utilities. The Dynamic SwingSensor also provides an alert if the device is being swung excessively, thus safeguarding the accuracy of your locates.

Comprehensive Data Logging and Seamless Data Transfer

Extensive Data Storage and Transfer with Bluetooth™ and USB

DXL4-DBG offers extensive data logging capabilities, with storage options for up to a year's worth of data. Transfer this invaluable information effortlessly via a USB cable or wirelessly through Bluetooth™ to a PC, tablet, or smartphone for supervisor analysis.

Data Analysis Made Easy

Unlock Insights with C.Scope PC Toolkit and Relay Smartphone App

The DXL4-DBG is compatible with the C.Scope PC Toolkit and the Relay smartphone app. These platforms transform the logged data into meaningful analytics, represented as charts and graphs, thereby facilitating quick identification of training or operational needs.

Geolocation at Your Fingertips

Inbuilt GPS and Google Earth™ Compatibility

The DXL4-DBG’s integrated GPS feature keeps a record of where the device has been operated. View this data in partnership with Google Earth™ or Google Maps™ to gain a comprehensive understanding of your operations.

Built-In Calibration and Testing Features

Daily Self-Testing for Optimal Functionality

The DXL4-DBG features an Automatic Daily Self Test (ADST), assuring that it is operating at peak performance levels every single day.

Designed for the Modern Professional

High-Resolution Display and Detachable Speaker

With its user-friendly high-resolution digital display and easily detachable speaker, the DXL4-DBG Cable Avoidance Tool is tailor-made for today’s busy professional.

Unbeatable Support and Warranty

Three-Year Warranty and Full Support

Last but not least, the DXL4-DBG comes with a three-year warranty, along with a comprehensive service and maintenance package available through C.Scope Authorised Service Centres.

Leverage the unparalleled capabilities of the DXL4-DBG Cable Avoidance Tool and step into a new era of cable and pipe locating proficiency. With its rich array of features, it's an indispensable tool for industry professionals looking for both reliability and versatility.

Features Overview

Power Mode
Radio Mode
Generator Mode:
Simultaneous 33+131kHz
33kHz signal detection for all purpose tracing and utility avoidance
+ 131kHz for optimum detection of short length, small diameter or unearthed cables.
All Scan Mode
Accurate Depth Indication
Overload Protection
Alarm Zone^TM
Peak Hold
Dynamic Swing Sensor
Automatic Daily Self Test
Data Logging of all Locator activity
Data Transfer by USB. (Bluetooth^TM option)
In-Built GPS position logging (option)
Connectivity to Survey level GPS products (options)
High Resolution Backlit Liquid Crystal Display
No periodic Calibration required
Product Validation Certificate available
Network Rail Approved

The DXL4 depth measuring Cable Avoidance Tool is available in two model types:

DXL4-D Cable Avoidance Tool
The C.Scope DXL4-D is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging.
DXL4-DBG Cable Avoidance Tool
The C.Scope DXL4-DBG is a high performance digital simultaneous dual-frequency (33+131kHz) Cable Avoidance Tool with in-built Data Logging, Bluetooth™ connectivity and GPS tracking.

Both these products are designed for use with an SGA4 or an SGV4 Signal Generator.

Product name
DXL4 Cable Avoidance Tool

Part Nos.

DXL4-D
DXL4-DBG

Controls

On/Off Switch: Spring loaded trigger switch under handle
Function Select Switch (FOUR position): P. Power Mode; R. Radio Mode; G. Generator Mode; A. AllScan Mode
Sensitivity Control
Depth Button. Push button for live display of depth

Audio Indication
Removable and user replaceable loudspeaker module

Visual Indication
Multi-segment Liquid Crystal Display indicating:

Signal Strength
Mode selected
AlarmZone™
Battery Condition
Self Test Indicator
GPS signal detected (DXL4-DBG only)
Bluetooth™ activated (DXL4-DBG only)
Depth Measurement (in Generator Mode)

Data Logging
Internal capacity for storing over 12 months of data (in normal use) logged once per second. Data logged includes:

Time/Date
Mode
Sensitivity Level
Received Signal Level
Frequency
Depth
Self Test Result
Swing Indicator
GPS position (DXL4-DBG only)

Bluetooth™
Bluetooth v2.1 (for Android) and v4.0 (for Apple iOS)

GPS
GPS/QZSS/GLONASS/SBAS

Data Connector
Standard USB Mini B connector in battery compartment. USB 2.0 Compatible

Self Test
Automatic Daily Self Test

Swing Indicator
Audio beep to indicate incorrect use of the Locator

Generator Mode Frequencies
Simultaneous 131.072kHz and 32.768kHz

Construction
Case moulded from high impact plastic. Designed to withstand 1m (3’3”) drop onto a hard surface

Weight (including batteries)
2.65kg (5 lb 13 oz)

Dimensions
720mm x 280mm x 65mm (28.3” x 11” x 2.5”)

Performance

Locate Accuracy: better than 10% of depth
Depth Accuracy: ±5% @ 1m (3’3”)
Line Depth Measurement Range: 0.1m to 9.99m (4” to 32’)
Line Depth Resolution: 0.01m (0.4”)
Sonde Depth Measurement Range: 0.1m to 9.99m (4” to 32’) depending on Sonde type
Sonde Depth Resolution: 0.01m (0.4”)

Battery Type
Internal 8 x ‘AA’ (LR6) cells (either alkaline non-rechargeable or NiMH rechargeable)

Battery Life
40 hours intermittent use at 20ºC (68ºF) using alkaline cells

IP Rating
65

Network Rail Approved

Notes
Performance figures stated can be affected by site parameters such as ground conditions, temperature, and strong electromagnetic fields. Specification may be subject to change. All C.Scope Locators are in compliance with the essential requirements and other relevant provisions of Council Directive 2014/30/EU (EMC). Compliance has been demonstrated by testing representative samples to the relevant harmonised standards. All C.Scope Locators comply with the essential requirements and other provisions of Council Directive 2011/65/EU (RoHS).

Features	DXL4-D	DXL4-DBG
Power Mode
Radio Mode
Generator / Transmitter Mode
– 33+131kHz
– 131kHz
– 33kHz
– 8kHz
– 512Hz
– 640Hz
AllScan Mode
Accurate Depth Indication
Signal Current Measurement
Overload Protection
AlarmZone™
Peak Hold
Dynamic Swing Sensor
Automatic Daily Self Test
Product Validation Certificate
Data Logging
Data Logging Rate – once per second
2GB Memory
Data Transfer via USB
Data Transfer via Bluetooth™
External Survey Level GPS via Bluetooth™
In-Built GPS position logging
High Resolution Backlit Liquid Crystal Display
No Periodic Calibration*
Three Year Warranty**
Batteries*** 8 x AA (LR6) Alkaline or NiMH Rechargeable
IP65

Performance	Frequency	Sensitivity	@ 1m depth Detection Depth (max)
Power	50-400Hz	5mA	3m
Radio	10kHz-30kHz	25µA	2m
Generator	33+131kHz	5µA	5m
AllScan	50Hz-33kHz	100µA	3m
Sonde	33kHz	–	7m
Rodding Oscillator	33kHz	–	4.5m
Traceable Rodder – Line	33kHz	–	3m
Traceable Rodder – Tip / Sonde	33kHz	–	4m

Depth Measurement Range

Measurement Type	Range or Accuracy
Line	0.2m – 3.0m
Sonde	0.25m – 9.9m
Depth Accuracy	+/- 5% of depth

GPS

GPS Parameter	Specification
Acquisition Time – Cold Start	30s
Acquisition Time – Hot Start	1s
No. of Channels	56
Accuracy	2m
Supported Systems	GPS, SBAS, QZSS, Galileo, GLONASS

Bluetooth™

Bluetooth Specification	Value
Version	v2.1 (for Android) and v4.0 (for Apple iOS)
Supported Systems	PC, Android and Apple iOS
Range	30m
Transfer Rate	350kbps

* No Periodic Calibration. The DXL4 Cable Avoidance Tools do not require periodic recalibration. A Product Validation Certificate can be printed using the PC Toolkit. C.Scope authorised Service Centres are also able to provide third-party Test and Calibration Certification should you require it to comply with client or internal regulations.

** Three Year warranty. Conditions apply.

*** Batteries. The DXL4 Cable Avoidance Tools use 8 x AA LR6 Alkaline or NiMH Rechargeable batteries sealed in a secure, fitted battery compartment. The battery pack will typically provide approximately 40 hours of service depending on use. The battery compartment also houses a spare battery holder

1 x C.Scope DXL4-DBLG Data Logging and Depth Model GPS and Bluetooth
