Radiodetection 640Hz Submersible DD Antenna | Underwater Utility Detection | 100m Depth Rated

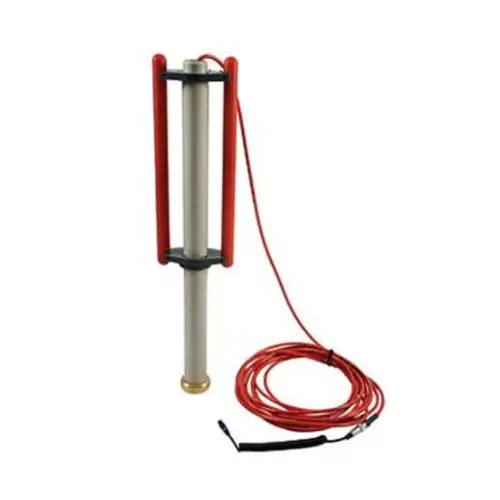

This remote, submersible double depth antenna is specifically engineered for the identification and tracing of submerged industrial infrastructure. By operating at a frequency of 640Hz, it significantly enhances detection accuracy and doubles the vertical depth range compared to standard utility locators. Built for extreme conditions, the unit is rated for safe operation at depths reaching 100m (328ft).

What are the primary underwater detection capabilities?

This antenna is designed for high-performance detection of underwater cables and pipes, effectively doubling the standard effective range of handheld locators. It provides a specialized solution for deep-water utility mapping in industrial environments up to 100m depth.

How is stability maintained during deep-water operation?

The antenna is constructed with natural buoyancy and features an integrated brass weight to ensure stability and proper orientation while submerged. An automatic liquid crystal display provides immediate depth calculations, ensuring data integrity during underwater surveying.

What are the cable configuration and power requirements?

Each unit is supplied with a 10m (33ft) submersible cable, though users can extend this up to 100m based on project requirements. Notably, the hardware operates efficiently without the need for batteries, reducing maintenance overhead in the field.
