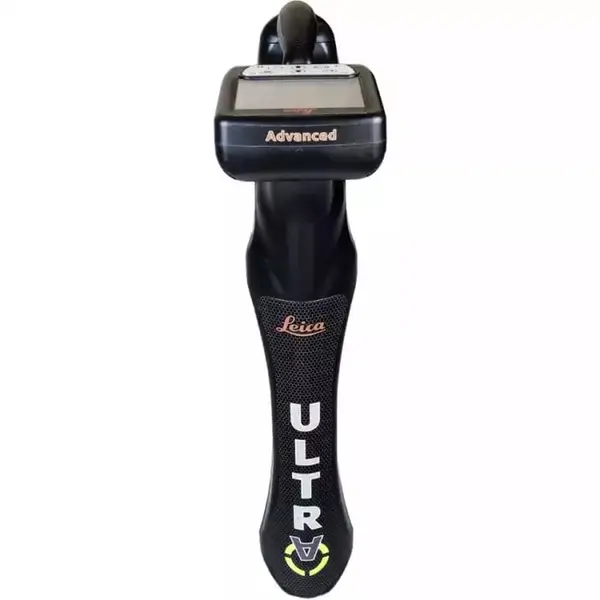

Leica ULTRA Locator - Standard
£2,118.00 £1,765.00
In stock
SKU
2901801
Leica ULTRA Locators Standard Key Features
- Intelligent Signal Processing: Offers over 100 selectable frequencies and Ambient Interference Measurement (AIM) for optimal performance in diverse environments.
- User-Friendly Design: Includes a compass for precise utility tracking and Offset Measuring for locating hard-to-access utilities.
| Package Contents |
|
|---|
The Leica ULTRA Locator - Standard stands out in the field of underground utility detection. It's specifically designed for accurate mapping and surveying of buried utilities, offering a sophisticated and reliable solution for professionals.
Key Features
Intelligent Signal Processing
With over 100 selectable frequencies, the Leica ULTRA Locator - Standard allows for fine-tuning to specific site requirements. This feature, combined with the Ambient Interference Measurement (AIM) system, ensures effective operation in various environments.
User-Friendly Design
The device includes a compass for directional guidance, aiding in the distinction of target utilities among multiple parallel utilities. Its Offset Measuring capability is crucial for locating utilities in challenging positions.
Enhanced Connectivity
A robust link between the receiver and transmitter enables remote control, enhancing efficiency. The device's resilience in diverse conditions is assured with IP65 protection against water, dust, and shocks.
Bluetooth® and Data Logging
For seamless data transfer, the Leica ULTRA Locator - Standard is equipped with Bluetooth® connectivity. It also features data logging for recording GPS coordinates, compatible with GIS systems and Google Maps.
Versatility and Efficiency
Designed for a range of applications, from simple tracing to complex surveys, the Leica ULTRA Locator - Standard is intuitive and features a clear LCD screen. It offers a choice between 5W and 12W transmitter power outputs, adaptable to various job sites.
Conclusion
The Leica ULTRA Locator - Standard sets a new standard in utility tracing technology. Its precision, adaptability, and user-centric design make it an indispensable tool for professionals in construction, surveying, and utility management.
| Feature/Specification | Standard | Advanced |
|---|---|---|
| Dimensions | 691 x 325 x 122 mm (27.2 x 12.8 x 4.75 in) | 691 x 325 x 122 mm (27.2 x 12.8 x 4.75 in) |
| Weight (including batteries) | 2.2 kg (4.8 lb) | 2.2 kg (4.8 lb) |
| Frequency Range | 50 Hz - 200 kHz | 50 Hz - 200 kHz |
| Sensitivity | 33 kHz (1 μA at 1 m) | 33 kHz (1 μA at 1 m) |
| Dynamic Range | 117 dB | 117 dB |
| Max Depth | 6 m (20 ft) | 6 m (20 ft) |
| Locate Accuracy | ±5% depth | ±5% depth |
| Dynamic Overload Protection | 30 dB (automatic) | 30 dB (automatic) |
| Depth Accuracy | In line - ±5% to 3 m (±5% to 10 ft) Sonde - ±5% to 3 m (±5% to 10 ft) Passive - ±5% to 3 m (±5% to 10 ft) | In line - ±5% to 3 m (±5% to 10 ft) Sonde - ±5% to 3 m (±5% to 10 ft) Passive - ±5% to 3 m (±5% to 10 ft) |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
| DE Direction Enabled | Any frequency from 256 Hz - 10 kHz | Any frequency from 256 Hz - 10 kHz |
| Fault-finding DE Based | 263 Hz | 263 Hz |
| Cathodic Protection Frequencies | 100 Hz, 120 Hz | 100 Hz, 120 Hz |
| Power Frequencies | 50 Hz, 60 Hz, 100 Hz, 120 Hz, 150 Hz, 180 Hz, 450 Hz, 540 Hz | 50 Hz, 60 Hz, 100 Hz, 120 Hz, 150 Hz, 180 Hz, 450 Hz, 540 Hz |
| Language Support | 17 user selectable | 17 user selectable |
| Selectable Auto Shutdown | 5, 10, 20, or 30 minutes | 5, 10, 20, or 30 minutes |
| PC Based Configuration | ✓ | ✓ |
| High Contrast Graphical LCD | ✓ | ✓ |
| Line Direction Compass | ✓ | ✓ |
| Offset Depth | ✓ | |
| AIM | ✓ | |
| Receiver / Transmitter Communications | ✓ | |
| Bluetooth® Connectivity | ✓ | |
| Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
| Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
| Environmental Protection | IP65 | IP65 |
| Batteries | 2 D-cell (LR20) | 2 D-cell (LR20) |
| Battery Life (max) | 30 hrs continuous, 70 hrs intermittent | 30 hrs continuous, 70 hrs intermittent |
Leica ULTRA Transmitters
| Feature/Specification | 5 Watt | 12 Watt | Advanced |
|---|---|---|---|
| Dimensions | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) |
| Weight (including batteries) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) |
| Frequency Range | 256 Hz - 200 kHz | 256 Hz - 200 kHz | 256 Hz - 200 kHz |
| Output Power | 5 Watt | 12 Watt | 12 Watt |
| Max Current | 500 mA | 500 mA | 500 mA |
| Max Voltage | 65V rms | 65V rms | 65V rms |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
| Language Support | 17 user selectable | 17 user selectable | 17 user selectable |
| Induction | 16 induction frequencies | 16 induction frequencies | 16 induction frequencies |
| PC Based Configuration | Software updates andconfiguration can be set by user | Software updates andconfiguration can be set by user | Software updates andconfiguration can be set by user |
| Fault-finding DE Based | 263 Hz | 263 Hz | 263 Hz |
| Multi-metre Functions | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts |
| High Contrast Graphical LCD | ✓ | ✓ | ✓ |
| External 12V Power Connection | ✓ | ||
| Dual Output | ✓ | ||
| Receiver / Transmitter Communications | ✓ | ||
| Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
| Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
| Environmental Protection | IP65 | IP65 | IP65 |
| Batteries | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) |
| Battery Life (max) | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack |
- ULTRA Locator - Standard by Leica
- 1 year warranty
- Alkaline batteries
- User manual
