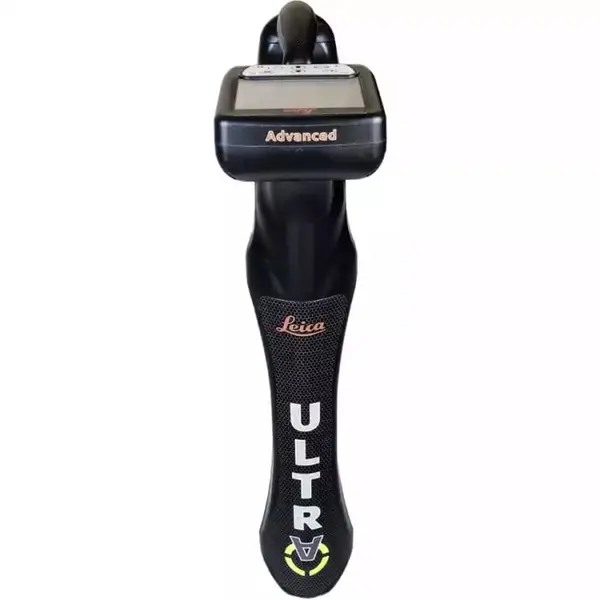

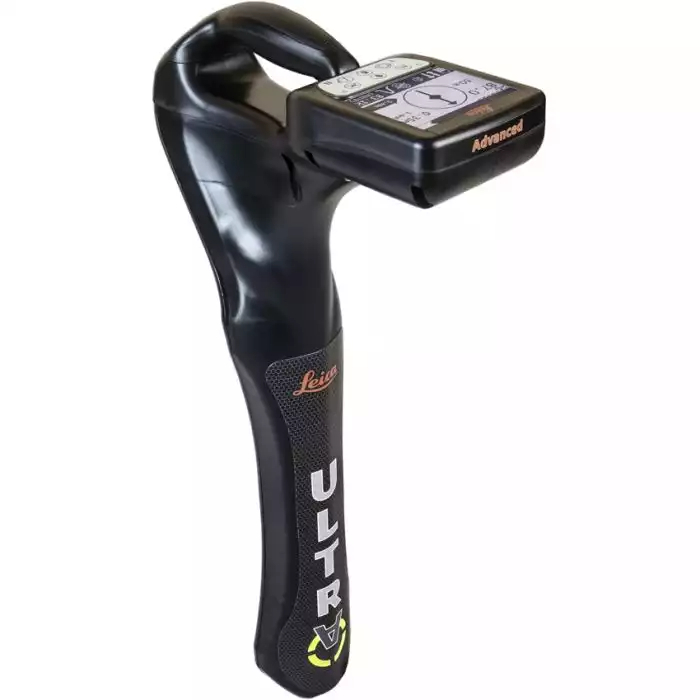

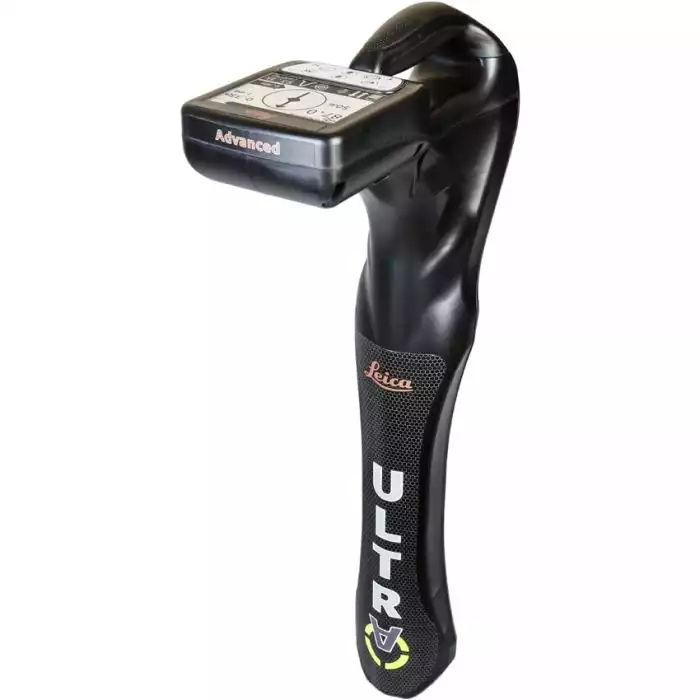

Leica ULTRA Locator - Advanced
£2,874.00 £2,395.00
In stock
SKU
2901800
Leica ULTRA Locators Advanced Key Features
- Superior Signal Processing: The Advanced model features over 100 selectable frequencies and Ambient Interference Measurement (AIM), tailored for complex, site-specific requirements and optimal performance in varied settings.
- Advanced User-Friendly Design: Includes a sophisticated compass for precise directional guidance and an Offset Measuring function for locating difficult-to-access utilities.
| Package Contents |
|
|---|
The Leica ULTRA Locator - Advanced is a top-tier tool for professionals in underground utility detection. It excels in providing detailed mapping and surveying of buried utilities, offering advanced features that cater to the nuanced needs of complex environments.
Key Features
Superior Signal Processing
The Advanced model of the Leica ULTRA Locator boasts an extensive range of over 100 selectable frequencies, tailored for intricate site-specific requirements. This is complemented by the Ambient Interference Measurement (AIM) system, which optimizes performance in diverse settings.
Advanced User-Friendly Design
Featuring a sophisticated compass for precise directional guidance, the Advanced model excels in identifying specific utilities among several. Its Offset Measuring function is invaluable for locating hard-to-access utilities.
Enhanced Transmitter and Receiver Communication
The Advanced model enhances field efficiency with its advanced transmitter-receiver link, allowing for remote operation and streamlined workflow. It also maintains the robust IP65 protection, safeguarding against harsh environmental elements.
Bluetooth® Connectivity and Comprehensive Data Logging
Equipped with Bluetooth® for efficient data communication and a comprehensive data logging system, this model facilitates easy integration with GIS systems and Google Maps, enhancing data management and usability.
Enhanced Versatility and Power

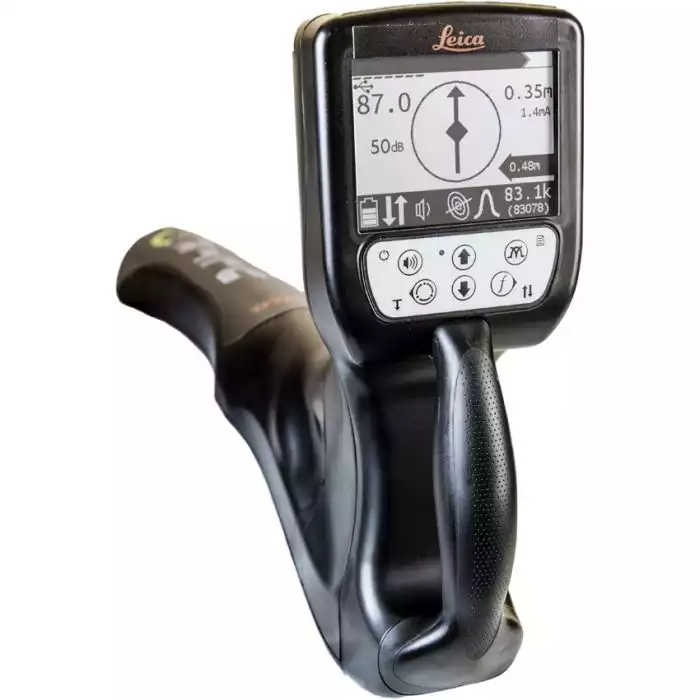

The Leica ULTRA Locator - Advanced is designed for diverse applications, from basic utility tracing to detailed surveys. It features an intuitive interface with a high-definition LCD screen. The device offers enhanced power options, including 5W and 12W transmitter outputs, ensuring optimal performance in various conditions.
Conclusion
The Leica ULTRA Locator - Advanced redefines utility tracing with its advanced technology and user-focused design. It's an essential tool for professionals requiring high precision in construction, surveying, and utility management, delivering unparalleled accuracy and efficiency.
| Feature/Specification | Standard | Advanced |
|---|---|---|
| Dimensions | 691 x 325 x 122 mm (27.2 x 12.8 x 4.75 in) | 691 x 325 x 122 mm (27.2 x 12.8 x 4.75 in) |
| Weight (including batteries) | 2.2 kg (4.8 lb) | 2.2 kg (4.8 lb) |
| Frequency Range | 50 Hz - 200 kHz | 50 Hz - 200 kHz |
| Sensitivity | 33 kHz (1 μA at 1 m) | 33 kHz (1 μA at 1 m) |
| Dynamic Range | 117 dB | 117 dB |
| Max Depth | 6 m (20 ft) | 6 m (20 ft) |
| Locate Accuracy | ±5% depth | ±5% depth |
| Dynamic Overload Protection | 30 dB (automatic) | 30 dB (automatic) |
| Depth Accuracy | In line - ±5% to 3 m (±5% to 10 ft) Sonde - ±5% to 3 m (±5% to 10 ft) Passive - ±5% to 3 m (±5% to 10 ft) | In line - ±5% to 3 m (±5% to 10 ft) Sonde - ±5% to 3 m (±5% to 10 ft) Passive - ±5% to 3 m (±5% to 10 ft) |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
| DE Direction Enabled | Any frequency from 256 Hz - 10 kHz | Any frequency from 256 Hz - 10 kHz |
| Fault-finding DE Based | 263 Hz | 263 Hz |
| Cathodic Protection Frequencies | 100 Hz, 120 Hz | 100 Hz, 120 Hz |
| Power Frequencies | 50 Hz, 60 Hz, 100 Hz, 120 Hz, 150 Hz, 180 Hz, 450 Hz, 540 Hz | 50 Hz, 60 Hz, 100 Hz, 120 Hz, 150 Hz, 180 Hz, 450 Hz, 540 Hz |
| Language Support | 17 user selectable | 17 user selectable |
| Selectable Auto Shutdown | 5, 10, 20, or 30 minutes | 5, 10, 20, or 30 minutes |
| PC Based Configuration | ✓ | ✓ |
| High Contrast Graphical LCD | ✓ | ✓ |
| Line Direction Compass | ✓ | ✓ |
| Offset Depth | ✓ | |
| AIM | ✓ | |
| Receiver / Transmitter Communications | ✓ | |
| Bluetooth® Connectivity | ✓ | |
| Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
| Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
| Environmental Protection | IP65 | IP65 |
| Batteries | 2 D-cell (LR20) | 2 D-cell (LR20) |
| Battery Life (max) | 30 hrs continuous, 70 hrs intermittent | 30 hrs continuous, 70 hrs intermittent |
Leica ULTRA Transmitters
| Feature/Specification | 5 Watt | 12 Watt | Advanced |
|---|---|---|---|
| Dimensions | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) |
| Weight (including batteries) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) |
| Frequency Range | 256 Hz - 200 kHz | 256 Hz - 200 kHz | 256 Hz - 200 kHz |
| Output Power | 5 Watt | 12 Watt | 12 Watt |
| Max Current | 500 mA | 500 mA | 500 mA |
| Max Voltage | 65V rms | 65V rms | 65V rms |
| Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
| Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
| Language Support | 17 user selectable | 17 user selectable | 17 user selectable |
| Induction | 16 induction frequencies | 16 induction frequencies | 16 induction frequencies |
| PC Based Configuration | Software updates andconfiguration can be set by user | Software updates andconfiguration can be set by user | Software updates andconfiguration can be set by user |
| Fault-finding DE Based | 263 Hz | 263 Hz | 263 Hz |
| Multi-metre Functions | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts |
| High Contrast Graphical LCD | ✓ | ✓ | ✓ |
| External 12V Power Connection | ✓ | ||
| Dual Output | ✓ | ||
| Receiver / Transmitter Communications | ✓ | ||
| Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
| Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
| Environmental Protection | IP65 | IP65 | IP65 |
| Batteries | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) |
| Battery Life (max) | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack |
- ULTRA Locator - Advanced by Leica
- 1 year warranty
- Alkaline batteries
- User manual
