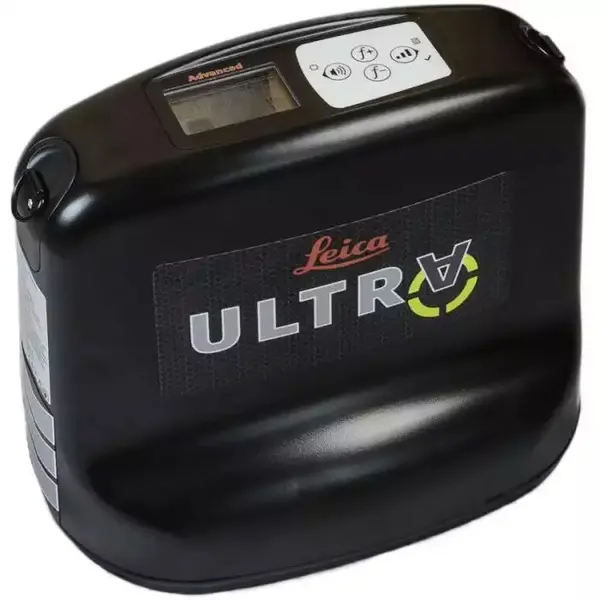

Leica ULTRA System Signal Transmitter
Leica ULTRA System Signal Transmitter Key Features
- Robust Design: IP65 protection for durability in harsh conditions and selectable antenna configurations for site-specific optimization.
- Powerful Tracing Options: Direction-enabled for precise utility identification and offers 5W and 12W transmitter power outputs for superior performance.
Package Contents | Depending on the Transmitter you choose in the options you will receieve either:
|
---|
The Leica ULTRA System Signal Transmitter represents the pinnacle of precision in utility tracing technology. Designed to cater to the ever-increasing complexity of underground utility networks, this advanced system ensures the highest accuracy in locating buried utilities. It's an essential tool for safeguarding underground assets during excavation and mapping projects.
Key Features and Benefits
Advanced Signal Processing and Customizable Frequencies
- Selectable Frequencies: Choose from over 100 preselected frequencies, or customize your own for highly specialized applications.
- Intelligent Signal Processing: Integrated technology for enhanced time efficiency and confidence in results.
- Ambient Interference Measurement (AIM): Analyzes surrounding noise, recommending the best frequencies for accurate tracing, especially in congested environments.
Enhanced User Experience
- Large, Clear Display: A backlit high-visibility LCD screen ensures clear and confident location and utility tracing.
- Compass Feature: Indicates the direction of the utility being located or traced.
- Bluetooth® Connectivity: Enables wireless communications with laptops, survey field PCs, or other GPS-enabled devices.
Robust Design and Environmental Protection
- IP65 Protection: Shock-resistant, and safeguarded against water and dust ingress, built for demanding environments.
- Selectable Antenna Configuration: Optimize the antenna for specific job sites, with options for range, response, noise cancellation, or easier sweeping.
Direction Enabled and Transmitter Power
- Direction Enabled: Assists in identifying the target utility among multiple parallel utilities.
- Increased Transmitter Power Output: Choose between 5W and 12W transmitter power outputs for superior tracing performance.
Technical Specifications
Dimensions and Weight
- Receiver Dimensions: 691 x 325 x 122 mm (27.2 x 12.8 x 4.75 in)
- Receiver Weight: 2.2 kg (4.8 lb)
- Transmitter Dimensions: 254 x 305 x 91 mm (10 x 12 x 7.75 in)
- Transmitter Weight: 3.4 kg (7.7 lb)
Performance and Environmental Tolerance
- Frequency Range: 50 Hz - 200 kHz
- Depth Accuracy: ±5% up to 3 m (10 ft)
- Operating Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
- Storage Temperature: -32 °C to 70 °C (-25 °F to 158 °F)
Battery and Power
- Battery Life: Up to 100 hrs with alkaline, 80 hrs with Li-Ion battery pack
- Output Power: 5 Watt and 12 Watt options
Applications and Use-Cases
The Leica ULTRA System is ideal for professionals in construction, surveying, and utility management. Its precision and reliability make it a go-to solution for:
- Mapping and surveying existing utilities.
- Protecting buried assets during excavation work.
- Customized tracing in site-specific applications.
Conclusion
The Leica ULTRA System Signal Transmitter is not just a tool but a comprehensive solution for precise utility tracing. Its combination of advanced technology, user-friendly features, and robust design makes it an indispensable asset for professionals dealing with underground utilities. With the Leica ULTRA, accuracy, efficiency, and safety in utility tracing are not just goals but guarantees.
Feature/Specification | 5 Watt | 12 Watt Standard | 12 Watt Advanced |
---|---|---|---|
Dimensions | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) |
Weight (including batteries) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) |
Frequency Range | 256 Hz - 200 kHz | 256 Hz - 200 kHz | 256 Hz - 200 kHz |
Output Power | 5 Watt | 12 Watt | 12 Watt |
Max Current | 500 mA | 500 mA | 500 mA |
Max Voltage | 65V rms | 65V rms | 65V rms |
Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
Language Support | 17 user selectable | 17 user selectable | 17 user selectable |
Induction | 16 induction frequencies | 16 induction frequencies | 16 induction frequencies |
PC Based Configuration | Software updates and configuration can be set by user | Software updates and configuration can be set by user | Software updates and configuration can be set by user |
Fault-finding DE Based | 263 Hz | 263 Hz | 263 Hz |
Multi-metre Functions | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts |
High Contrast Graphical LCD | ✓ | ✓ | ✓ |
External 12V Power Connection | ✓ | ||
Dual Output | ✓ | ||
Receiver / Transmitter Communications | ✓ | ||
Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
Environmental Protection | IP65 | IP65 | IP65 |
Batteries | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) |
Battery Life (max) | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack |
Depending on the Transmitter you choose in the options you will receieve either:
- 5 Watt ULTRA Transmitter by Leica
- 12 Watt ULTRA Standard Transmitter by Leica
- 12 Watt ULTRA Advanced Transmitter by Leica
