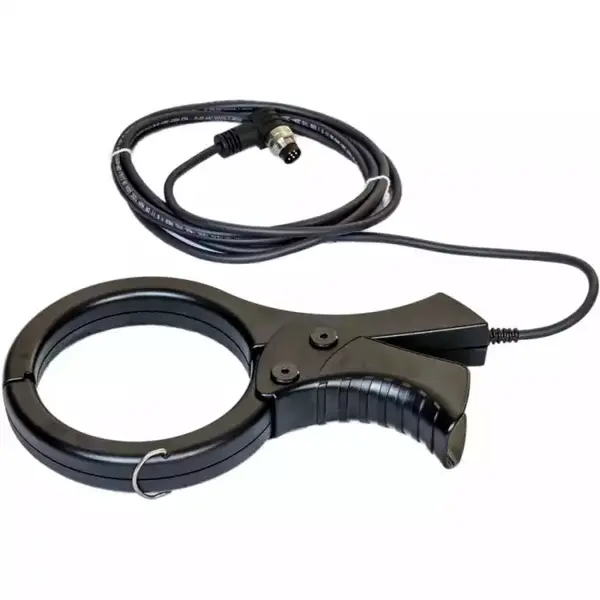

Leica ULTRA System Multi Clamp
Leica ULTRA System Multi Clamps Key Features
- Versatile Size Options: Includes 125mm (5”) for standard tracing, 178mm (7”) for larger cables, and 80mm (3.15”) Broadband Clamp for a wide frequency range, catering to diverse utility tracing needs.
- User-Friendly and Durable: Designed for ease of use and durability, ensuring a secure grip on cables for reliable and consistent signal application in various field conditions.
Package Contents | Depending on the Transmitter you choose in the options you will receieve either:
|
---|
The Leica ULTRA System Multi Clamps are expertly designed accessories for the Leica ULTRA system signal transmitter. These clamps are essential for professionals who require the application of a traceable signal to live cables with utmost precision and safety.
Key Variants and Sizes
- 125mm (5”) Multi Clamp: Ideal for standard utility tracing, offering a balance of size and functionality.
- 178mm (7”) Multi Clamp: Provides a larger grip for bigger cables, enhancing versatility in utility tracing.
- 80mm (3.15”) Broadband Clamp (512Hz – 33kHz): Specially designed for a broader range of frequencies, perfect for more specialized applications.
Application and Use
These Multi Clamps are specifically crafted to be used with the ULTRA system signal transmitter, ensuring seamless compatibility and performance. They are perfect for:
- Applying traceable signals to live cables in various utility tracing projects.
- Ensuring safety and accuracy in environments where direct connection to the cable is not possible or practical.
User-Friendly and Durable
Constructed with the user in mind, these clamps are not only easy to handle but also robust enough to withstand the rigors of fieldwork. Their design ensures a secure grip on cables, providing reliable and consistent signal application.
Conclusion
The Leica ULTRA System Multi Clamps are indispensable tools for professionals in utility management and surveying. They extend the capabilities of the Leica ULTRA system, ensuring that tracing live cables is done with the highest level of precision and safety. Whether it's for standard or specialized applications, these clamps are designed to meet the diverse needs of utility tracing experts.
Feature/Specification | 5 Watt | 12 Watt Standard | 12 Watt Advanced |
---|---|---|---|
Dimensions | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) | 254 x 305 x 91 mm (10 x 12 x 7.75 in) |
Weight (including batteries) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) | 3.4 kg (7.7 lb) |
Frequency Range | 256 Hz - 200 kHz | 256 Hz - 200 kHz | 256 Hz - 200 kHz |
Output Power | 5 Watt | 12 Watt | 12 Watt |
Max Current | 500 mA | 500 mA | 500 mA |
Max Voltage | 65V rms | 65V rms | 65V rms |
Enabled Frequencies | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz | 512 Hz, 3,140 Hz, 8,192 Hz, 32,768 Hz, 83,100 Hz, 200,000 Hz |
Custom Frequencies | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz | Up to 100 custom frequencies from 256 Hz - 83 kHz |
Language Support | 17 user selectable | 17 user selectable | 17 user selectable |
Induction | 16 induction frequencies | 16 induction frequencies | 16 induction frequencies |
PC Based Configuration | Software updates and configuration can be set by user | Software updates and configuration can be set by user | Software updates and configuration can be set by user |
Fault-finding DE Based | 263 Hz | 263 Hz | 263 Hz |
Multi-metre Functions | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts | Watts, currents, ohms, and volts |
High Contrast Graphical LCD | ✓ | ✓ | ✓ |
External 12V Power Connection | ✓ | ||
Dual Output | ✓ | ||
Receiver / Transmitter Communications | ✓ | ||
Operating Temperature | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) | -20 °C - 50 °C (-4 °F - 122 °F) |
Storage Temperature | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) | -32 °C - 70 °C (-25 °F - 158 °F) |
Environmental Protection | IP65 | IP65 | IP65 |
Batteries | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) | 10 D-Cell (LR20) or Li-Ion battery pack (optional) |
Battery Life (max) | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack | 100 hrs with alkaline, 80 hrs with Li-Ion battery pack |
Depending on the Transmitter you choose in the options you will receieve either:
- 125mm (5”) Multi Clamp by Leica
- 178mm (7”) Multi Clamp by Leica
- 80mm (3.15”) Broadband Clamp by Leica
