Leica Detect DD120 Depth Package
Leica Detect DD120 Depth Package: Comprehensive Utility Detection
- All-In-One Utility Kit: Package includes the DD120 Locator, DA220 1-watt signal transmitter, and a system carry bag for all-encompassing utility detection.
- Precise Depth Insights: Advanced depth estimation when paired with the DA220 1-watt signal transmitter, ensuring in-depth and accurate utility detection.
- Built for Simplicity & Safety: Leverages user-friendly features like Signal Strength Indication, Hazard Zone alerts, and integrated self-tests from the DD120 Locator.
Package Contents |
|
---|
Introducing the Leica Detect DD120 Depth Package, a specialized utility detection package that combines the power of the Leica DD120 Locator with additional accessories for enhanced functionality. This package is designed to offer a complete solution for professionals engaged in locating underground utilities. It includes the Leica DD120 Locator, a DA220 1-watt signal transmitter, and a system carry bag, providing you with all the tools you need for efficient and accurate utility detection.
Key Features
All-Inclusive Package
The Leica Detect DD120 Depth Package includes not just the DD120 Locator but also a DA220 1-watt signal transmitter and a system carry bag. This all-in-one package ensures that you have everything you need for your utility detection tasks.
Enhanced Depth Estimation
When used in conjunction with the included DA220 1-watt signal transmitter, the Leica DD120 Locator offers extended depth estimation capabilities, allowing for more accurate and reliable utility detection.
Simplified Use and Safety Features
The package inherits all the user-friendly and safety features of the Leica DD120 Locator, including Signal Strength Indication (SSI), Hazard Zone alert for shallow services, and in-built self-test functionalities.
Versatile Applications
The Leica Detect DD120 Depth Package is ideal for a variety of applications, including construction, utility management, and surveying, offering a versatile solution for different industry needs.
Business Use Cases
- Construction Companies
- Utility Management Firms
- Surveying Agencies
- Environmental Consultancies
- Municipal Engineering Departments
Conclusion
The Leica Detect DD120 Depth Package is a comprehensive utility detection solution that combines the advanced features of the Leica DD120 Locator with additional tools for enhanced functionality. With its all-inclusive package and extended depth estimation capabilities, it sets a new standard in underground utility detection.
Feature | DD120 | DD130 | DD175 |
---|---|---|---|
MODE | |||
Power | 50Hz / 60Hz model | 50Hz / 60Hz model | 50Hz / 60Hz model |
Radio | 15kHz - 60kHz | 15kHz - 60kHz | 15kHz - 60kHz |
Auto | Power, Radio, 33kHz | Power, Radio, 33kHz | Power, Radio, 33kHz |
Transmitter Modes | |||
32.768 (33) kHz | ✓ | ✓ | ✓ |
8.192 (8) kHz | ✓ | ✓ | ✓ |
512 Hz | ✓ | ✓ | ✓ |
640 Hz | ✓ | ✓ | ✓ |
Depth Range | |||
Line | 0.3m to 3m / 1ft to 10ft | 0.3m to 3m / 1ft to 10ft | 0.3m to 3m / 1ft to 10ft |
Sonde | 0.3m to 3m / 1ft to 10ft | 0.3m to 9.99m / 1ft to 32.77ft | 0.3m to 9.99m / 1ft to 32.77ft |
Depth Accuracy* | 10% | 10% | 10% |
Environmental Standard | IP54 | IP54 | IP54 |
Operating Temperature | -20° C to +50° C -4° F to +122° F | -20° C to +50° C -4° F to +122° F | -20° C to +50° C -4° F to +122° F |
Battery | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline | 6 x LR6 (AA) Alkaline |
Battery operating time | 15 h | 15 h | 15 h |
Dimensions (HxWxD) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) | 760 x 250 x 85mm (30 x 10 x 3.4 inches) |
Weight with batteries | 2.7Kg 5.95 lbs | 2.7Kg 5.95 lbs | 2.7Kg 5.95 lbs |
Internal Data Storage | X | X | ✓ |
Data Logging | X | X | ✓ |
GPS | X | X | ✓ |
Bluetooth | X | X | ✓ |
DA175 Features
Feature | DA175 |
---|---|
MODE | DA175 |
Induction Mode Frequencies | 32.768 (33) kHz / 8.192 (8) kHz |
Power Output | Up to 1 Watt max. when connected to a buried service with an impedance of 300 Ω |
Direct Connection Mode Frequencies | 32.768 (33) kHz / 8.192 (8) kHz / 512 Hz / 640 Hz |
Environmental Standard | Cover Closed: IP67 Cover Open: IP65 |
Operating Temperature | -20 °C to +50 °C / -4 °F to +122°F |
Storage Temperature | -40°C to +70°C, / -40°F to +158°F |
Battery | 4 x D alkaline (IEC LR20), supplied |
Battery Operating Time | 30 hrs intermittent use at 20 °C / 68 °F |
Dimensions (HxWxD) | 250 x 206 x 113 mm / 9.84 x 8.11 x 4.45 inches |
Weight with batteries | 2.5 kg / 5.5 lbs |

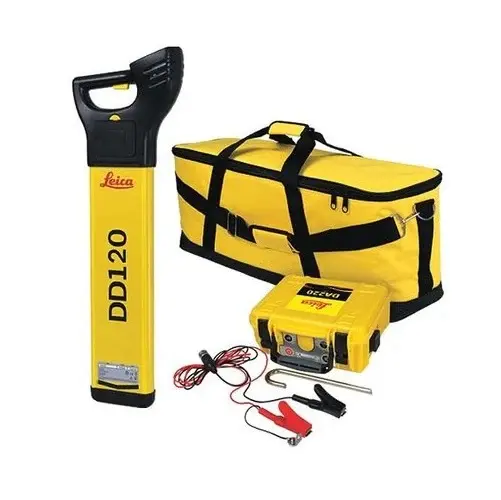

- 1 x DD120 utility locator
- 1 x DA175 1 Watt Signal Transmitter
- 1 x System carry bag
- Alkaline batteries
- Manuals.
