Leica DA220 1 Watt Signal Transmitter
SKU
2901037
£738.00 £615.00
Out of stock
The Leica 1-Watt DA220 is no longer available new,

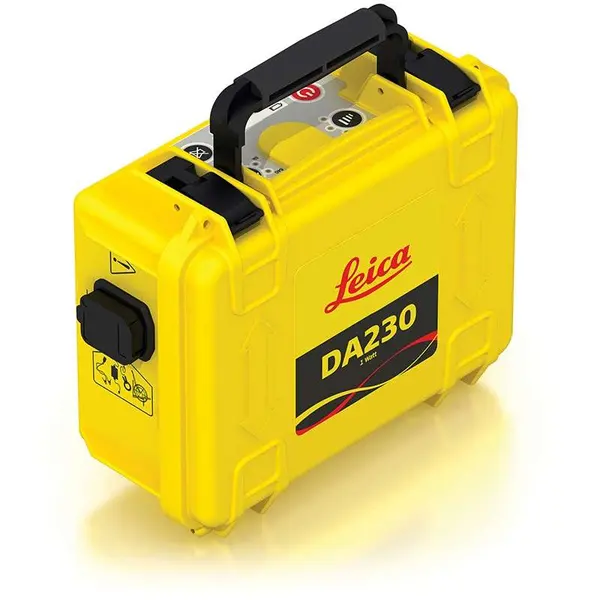

Please see the Leica 1 Watt DA230 Signal Transmitter
Looking to save money? Check out our refurbished stock as it is constantly updating
The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.
Connect and download data stored in the DD SMART utility locators internal memory, including GPS positioning and transfer it back to the DX Shield software for analysis. USB connectivity provides a convenient connection to DX Office Shield for product configuration, maintenance and data analysis.
Leica DD Smart Utility Locator Technical Specifications
| MODE | DD220 SMART | DD230 SMART |
| Power | 50 / 60 Hz mains electrical and harmonics | 50 / 60 Hz mains electrical and harmonics |
| Radio | 15kHz to 60kHz | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
| Transmitter Modes | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz |
131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Depth Range | Line 0.1m to 5m Line 4 inches to 16.4 feet Sonde 0.1m to 7m Sonde 4 inches to 23 feet |
Line 0.1m to 7m 4 inches to 23 feet Sonde 0.1 to 10m Sonde 4 inches to 32.8 feet |
| Depth Accuracy* | 5% | 5% |
| Bluetooth | Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) |
Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) |
| GPS** | Chipset (1): u-blox GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
Chipset (1): u-blox GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
| Memory Capacity | 8 GB internal memory | 8 GB internal memory |
| Environmental Standard | IP66 | IP66 |
| Operating Temperature | -20 °C to +50 °C -4 °F to +122°F |
-20 °C to +50 °C -4 °F to +122°F |
| Battery | 7.4V Rechargeable Li -Ion | 7.4V Rechargeable Li -Ion |
| Battery operating time *** | 15 h | 15 h |
| Dimensions (HxWxD) | 765x290 x93mm 30.12 x11.42x3.66 inches |
765x290 x93mm 30.12 x11.42x3.66 inches |
| *Depth to an undistorted signal ** (1) All data/information according to manufacturer u-blox®GPS; Leica Geosystems does not assume any liability whatsoever for such information. (2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites. *** Constant use at 20°C/68°F |
||
| Condition | new |
|---|---|
| Tx Frequency | 33 kHz |
| Certifications | Network Rail Approved |
| Depth Measurement | Without Depth Measurement |
| Data Logging | Without Data Logging |
| Bluetooth | With Bluetooth |
