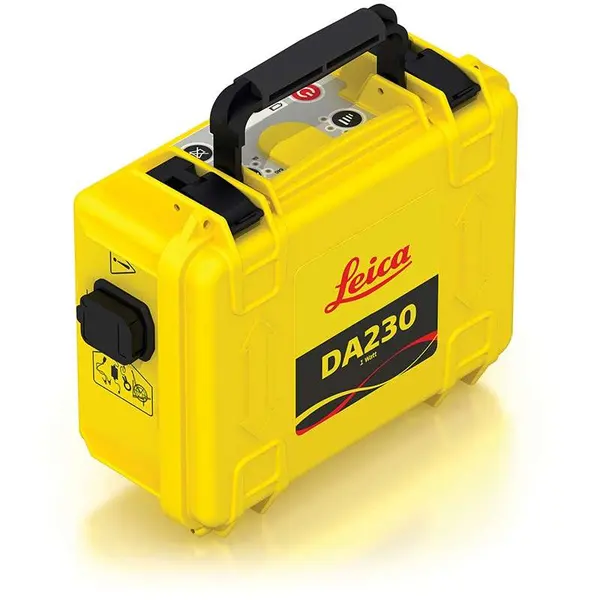

Leica DA230 1 Watt Signal Transmitter
Special Price
£774.00
£645.00
Regular Price
£858.00
In stock
SKU
2901723
Leica DA220 1 Watt Signal Transmitter
The Leica DA signal transmitters apply a signal onto underground cables or pipes that may not carry a detectable signal. The Leica DD SMART cable locators can then be used to locate the signal from the Leica DD signal transmitter. The DA signal transmitters are compact, robust and easy-to-use. They have been designed in conjunction with the DD SMART cable locators to easily and accurately avoid, trace or locate buried cables and pipes.
- To improve detection success.
- To trace the route of a utility.
- To enable a depth or current measurement.
The Leica DD SMART utility locators and DX Shield software open the door to a connected world, anywhere, anytime. Leica DD SMART utility locators detect underground assets deeper, faster and more accurately. Understand site activity and utility locator use in greater detail with DX Shield software. The DD230/220 SMART locators are scalable and designed with the latest Bluetooth technology, providing a wire-free connection to mobile devices.
Connect and download data stored in the DD SMART utility locators‚„ internal memory, including GPS positioning and transfer it back to the DX Shield software for analysis. USB connectivity provides a convenient connection to DX Office Shield for product configuration, maintenance and data analysis.
Leica DD Smart Utility Locator Technical Specifications
| MODE | DD220 SMART | DD230 SMART |
| Power | 50 / 60 Hz mains electrical and harmonics | 50 / 60 Hz mains electrical and harmonics |
| Radio | 15kHz to 60kHz | 15kHz to 60kHz |
| Auto | Power, Radio, 33kHz | Power, Radio, 33kHz |
| Transmitter Modes | 131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz |
131.072 (131) kHz 32.768 (33) kHz 8.192 (8) kHz 512 Hz 640 Hz |
| Depth Range | Line 0.1m to 5m Line 4 inches to 16.4 feet Sonde 0.1m to 7m Sonde 4 inches to 23 feet |
Line 0.1m to 7m 4 inches to 23 feet Sonde 0.1 to 10m Sonde 4 inches to 32.8 feet |
| Depth Accuracy* | 5% | 5% |
| Bluetooth | Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) |
Class 2 BLE dual mode module Bluetooth Classic 2.1 Bluetooth 4.0 (LE) |
| GPS** | Chipset (1): u-blox‚®GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
Chipset (1): u-blox‚®GPS Reciever Type: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, GLONASS L1OF, BeiDou B1 Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical |
| Memory Capacity | 8 GB internal memory | 8 GB internal memory |
| Environmental Standard | IP66 | IP66 |
| Operating Temperature | -20 ‚°C to +50 ‚°C -4 ‚°F to +122‚°F |
-20 ‚°C to +50 ‚°C -4 ‚°F to +122‚°F |
| Battery | 7.4V Rechargeable Li ‚œ Ion | 7.4V Rechargeable Li ‚œ Ion |
| Battery operating time *** | 15 h | 15 h |
| Dimensions (HxWxD) | 765x290 x93mm 30.12 x11.42x3.66 inches |
765x290 x93mm 30.12 x11.42x3.66 inches |
| *Depth to an undistorted signal ** (1) All data/information according to manufacturer u-blox‚®GPS; Leica Geosystems does not assume any liability whatsoever for such information. (2) Accuracy is dependent upon various factors including atmospheric conditions, multipath, obstructions, signal geometry and number of tracked satellites. *** Constant use at 20‚°C/68‚°F |
||
