Vivax vCamMX-2 D18-HD | Mini Drain Inspection System | High-Resolution Internal Survey

The Vivax vCamMX-2 D18-MX Mini Reel System is a specialized, knowledge-dense inspection solution designed for plumbing contractors and building maintenance professionals. Constructed with a rugged ABS injection-molded frame, this system is engineered to withstand the harsh conditions of indoor drain lines and rooftop vents while providing precise imaging through its high-definition D18-HD camera head.

What are the primary applications for the vCamMX-2 D18-MX?

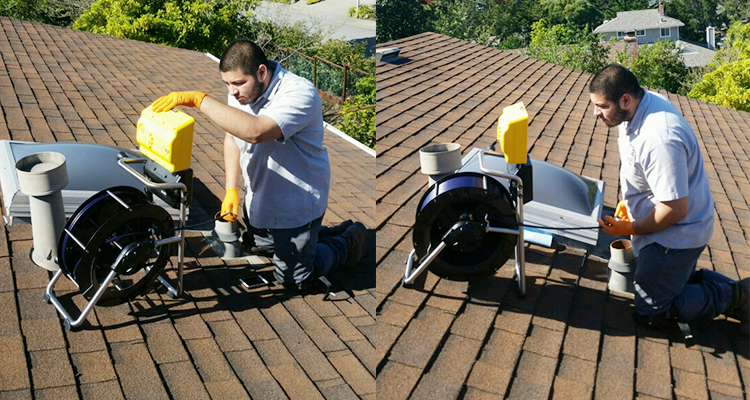

This system is optimized for residential plumbing, indoor commercial lines, and lateral pipes reaching up to 4 inches in diameter. It is designed for versatility, allowing users to perform specialized inspections in tight, confined spaces and from vertical entry points like rooftop vents.

How does the system facilitate utility tracing and organization?

The vCamMX-2 features a traceable pushrod and a built-in 5-watt Sonde capable of transmitting at 512Hz, 640Hz, and 33kHz for easy location. Operators can manage data effectively with on-screen distance, date, and time metrics, alongside a file renaming function for better organization of inspection assets.

What are the imaging and power capabilities of this system?

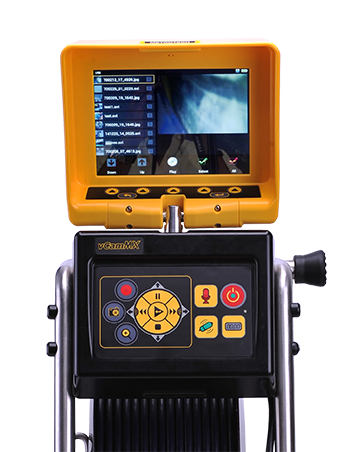

Visual clarity is provided by an 8-inch daylight-viewable LCD with a 2x digital zoom for detailed analysis of pipe defects. The system is powered by an internal rechargeable battery offering 7 hours of operation, with the flexibility of AC/DC operation for continuous use.

Compatible Accessories

• Vivax D18-HD Camera - High-definition 18mm replacement camera head for clear imaging.

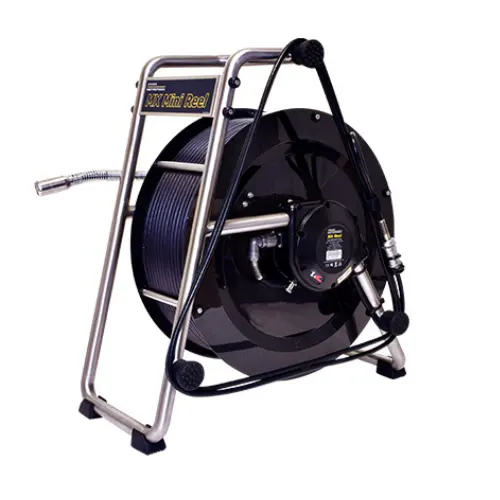

• Vivax Type-MX Reel - Durable reel assembly with 30m of 10mm traceable pushrod.
• Vivax D18 Sonde - Compact 33kHz frequency sonde for precision tracing within small diameter pipes.
