Vivax-Metrotech D18-HD | 18mm High-Definition Pipe Inspection Camera

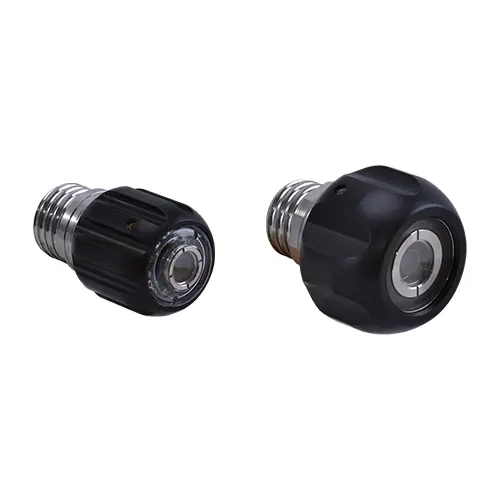

The Vivax D18-HD Camera is a professional-grade 18mm inspection head providing 720p high-definition imagery for detailed drain and pipe diagnostics. Designed for use in narrow pipelines from 1-1/2" to 3" (38mm to 75mm), this fixed-position camera features a durable stainless-steel housing and a scratch-resistant Sapphire lens for maximum longevity in industrial environments.

What are the technical capabilities of the D18-HD camera head?

The camera offers a 720p resolution with a 90° field of view and 69 Lumens of lighting measured at 1 meter in 4-inch cast iron pipe. Its fixed-position, non-leveling design is encased in stainless-steel housing, ensuring functionality in high-pressure environments up to 11 BAR.

Which pipe diameters are compatible with this 18mm camera?

This camera head is specifically optimized for inspecting pipes between 1-1/2" and 3" (38mm to 75mm). The ultra-compact 18mm (0.70") diameter allows the camera to navigate tight bends and small-diameter lines common in residential and commercial drainage systems.

What systems can the D18-HD camera head be used with?

It is fully compatible with the vCamMX-2+ Control Module and the vCamDrain System for high-definition output. It also offers backward compatibility with the vCam-6 Control Module, although it will produce standard definition video on that specific hardware.

• vCam-6 Control Module: Professional high-definition control unit for comprehensive site surveys.

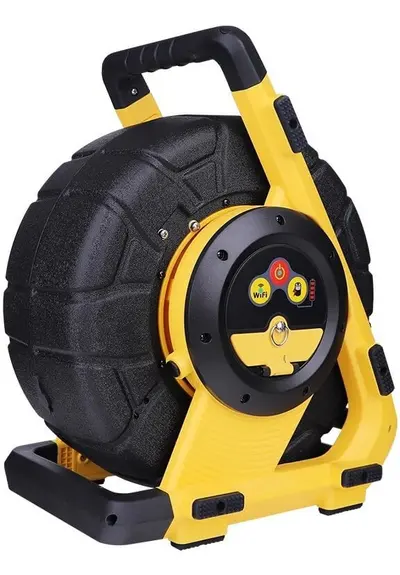

• vCamDrain System: Specialized wireless-ready reel for secondary lines and small drains.
• Vivax D18-HD Standard Skid: Protective centering accessory for the 18mm camera head.
• Vivax vCamDrain 35mm Spring Skid: Flexible guide to assist camera navigation through complex pipe bends.
