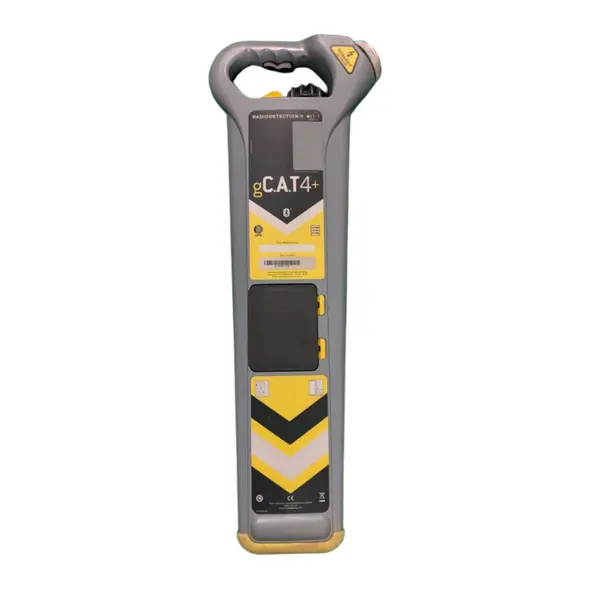

Ex Demo Radiodetection gCAT4+ | GPS & Data Logging Cable Avoidance Tool

The Ex Demo Radiodetection gCAT4+ is a high-performance utility locator that combines the proven reliability of the C.A.T4 series with advanced digital tracking. This unit features integrated GPS and internal Data Logging, allowing operators to document not just how a scan was performed, but exactly where the tool was used. This ex-demonstrator model comes fully serviced with 12 months of calibration and a comprehensive 12-month warranty.

How does the integrated GPS enhance utility surveying?

The built-in GPS provides automatic positional data without requiring external handheld devices or pairing. If a satellite lock is not immediate, the gC.A.T4 remains active for a Seek Time of up to 30 minutes (15-minute default) to ensure every scan is geographically logged for quality and compliance reporting.

What safety features are included in the gCAT4+ model?

This model is equipped with StrikeAlert, which warns of shallow buried cables, and CALSafe, which prevents the tool from being used if the 12-month calibration has expired. Additionally, the SWING feature monitors the operator's technique and warns of excessive swinging to maintain detection accuracy.

What data reporting capabilities does this locator offer?

The internal data logging system records every second of use, which can be exported via the C.A.T Manager software. Reports are available in CSV, XLS, or KML formats, allowing for easy integration with GIS software or visualization in Google Earthâ„¢.

Accessories Section

• To perform depth estimation and active frequency tracking, use with the Radiodetection GENNY4 Signal Generator.
• Safeguard your equipment on-site with the Radiodetection CAT4 & Genny4 SuperCAT Carry Bag.
• For a complete solution, consider the Radiodetection Genny4 and Bag Accessory Pack.
