Vivax Direct Connection Lead | Standard Clips | Loc3 Series Utility Connection

The Vivax Direct Connection Lead with Standard Clips provides a high-integrity signal path for professional utility locating. By utilizing a dual-cable configuration, these leads allow for direct signal injection onto target conductors, ensuring maximum accuracy for depth and position readings in complex industrial environments.

How does the Vivax Direct Connection Lead improve utility locating?

This system uses a red clip to attach directly to the targeted conductor and a black clip for connecting to a ground point. This creates a secure, closed-circuit signal, which is essential for differentiating specific utility lines from adjacent services.

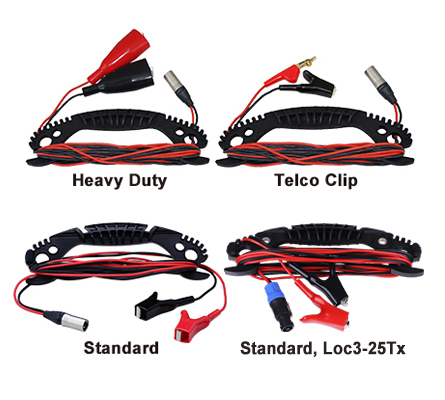

What are the differences between the standard and Loc3-25Tx versions?

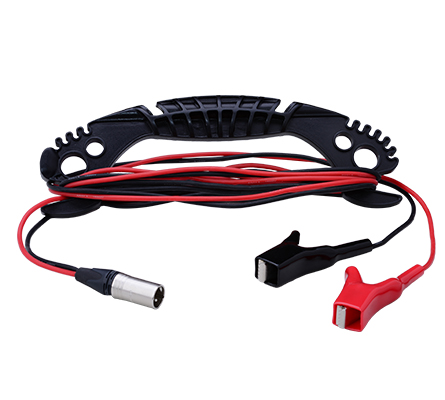

The standard connection option is fitted with a 3-pin silver plug for universal use with 5W and 10W transmitters. The Loc3-25Tx variant is specifically engineered with a Blue plug to handle the high-output requirements of the 25-Watt transmitter while maintaining standard clip versatility.

What specific connections are required for proper operation?

For successful signal application, the black clip must be connected to a suitable ground, typically facilitated by an external ground stake. This configuration supports tracing across a variety of line sizes and common utility services encountered in daily operations.

Compatible Accessories

• Loc3-25Tx 25-watt Transmitter: Loc3-25Tx 25-watt Transmitter
• Loc3 Series 10-Watt Transmitter: Loc3 Series 10-Watt Transmitter
• Connection Lead Set: Vivax Direct Connection Lead Set c/w Ground Stake & Magnets
