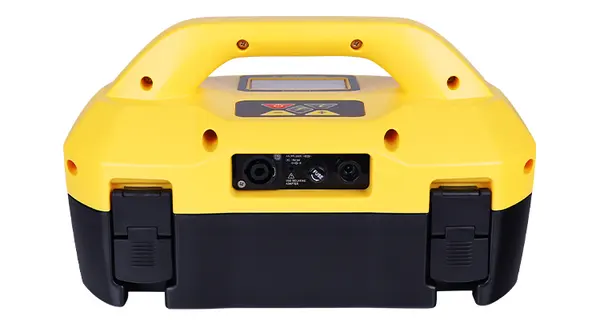

Loc3-25Tx 25-watt Transmitter
Special Price £3,427.20 £2,856.00 Regular Price £4,326.00
In stock
SKU
1.222.02.00002
Key Features of the Loc3-25Tx Transmitter
- High Output Capabilities: Delivers 4 Amp peak current and 130 Volts peak output for comprehensive locating tasks.
- Wide Frequency Selection: Selectable frequencies from 32Hz to 9.82kHz for direct connections and signal clamp applications.
- Lightweight and Ergonomic: Designed for easy portability and everyday use, housed in an IP54 rugged casing.
- Advanced Display: Dot matrix display with LED backlight for detailed feedback on operations.
- Signal Clamp Compatibility: Enhances utility locating efficiency with easy clamp-on capabilities.
| Package Contents | Loc3-25Tx 25-Watt Transmitter includes:
|
|---|
The Loc3-25Tx Transmitter by Vivax is a cornerstone in the field of utility and pipeline location and integrity assessment. Its 25-watt power output makes it an indispensable tool for a variety of challenging locating tasks, including cable fault detection, holiday detection on coated pipes, deep-buried line tracing, and long-distance pipe and cable location. Specifically designed to meet the demands of cathodic protected longline pipelines and gas distribution in urban settings, the Loc3-25Tx excels in environments requiring a low-frequency, high-output transmitter.
Key Features of the Loc3-25Tx Transmitter
- Versatile Frequency Range: Offers selectable direct connection frequencies from 32Hz to 9.82kHz and signal clamp frequencies from 8kHz to 9.82kHz, accommodating a wide range of locating needs.
- High-Performance Output: Capable of delivering up to 4 Amps peak current output and 130 Volts peak output, ensuring reliable signal transmission even in the most demanding conditions.
- Portable and Durable Design: Housed in a rugged, ergonomic IP54 casing, the Loc3-25Tx is lightweight at only 7.05lbs (3.19kg), designed for portability and durability in the field.
- User-Friendly Interface: Features a two-inch by one-inch dot matrix display with LED backlight for clear visibility of output current, volts, frequency, and user feedback warnings.
- Compatibility with Signal Clamps: Enhances versatility in application with compatibility for signal clamps, facilitating easy and efficient use across various scenarios.
The Loc3-25Tx is not just powerful; it's designed with the user in mind. Its light and portable form factor, combined with a soft carry bag that includes a storage pocket for accessories, allows for operation directly from the bag, maximizing convenience and efficiency during field operations. Whether it's for pinpointing cable faults, locating deep-buried utilities, or conducting long-distance locates, the Loc3-25Tx stands out as a reliable, high-output solution.
Loc3 25 Watt Transmitter Features Overview
| Specification Category | Details |
|---|---|
| Construction | High impact ABS injection molded housing |
| Weight and Dimensions | 9.9 lbs, 13.1in(L) x 7.2in(W) x 7.3in(H) |
| Display | 2.4in x 1.3in (60mm x 32mm) Monochrome-dot-matrix graphic LCD display with LED backlight |
| Environmental Protection | IP54 and NEMA 4 |
| Battery Options | Supplied with 12 x D cell alkaline batteries; Optional Li-ion rechargeable battery tray with charger |
| Battery Life | Alkaline: 1 watt - 25 hours, 5 watt - 6 hours, 10 watt - 4 hours; Li-ion (Rechargeable): 1 watt - 50 hours, 5 watt - 10 hours, 10 watt - 6 hours |
| Operating Modes | Induction mode, Direct connection mode, Clamp mode |
| Output Protection | Protected against accidental momentary connection to up to 240V AC |
| Operating Frequencies | Induction - Available frequencies between 98Hz and 200kHz; Direct Connection - Available frequencies between 98Hz and 200kHz; Clamp - Frequencies between 8kHz to 131kHz |
Loc3-25Tx 25-Watt Transmitter includes:
- Padded Transmitter Bag
- Ground stake
- Direct connection lead
- Li-ion Battery tray
- Charger
- Mini-USB cable
Vivax-Metrotech
