Loc3 Series 10-Watt Broadband Transmitter: Precision Meets Durability
- Versatile Frequency Range: Catering to varied utility locating tasks, the transmitter supports frequencies from 98Hz to 200kHz, ensuring accuracy in multiple scenarios.
- Crystal-Clear Display and Remote Operation: The LED-backlit display offers a comprehensive view of critical metrics. Further enhancing its user-friendliness, an optional Tx-Link supports remote operation up to 300m.
- Robust Construction and Safety: Ensconced in an IP54 housing, the device stands strong against harsh environments and protects against high voltages up to 240V.
Package Contents |
|
---|
The Loc3 Series 10-Watt broadband transmitter is a state-of-the-art device engineered for a wide array of utility locating tasks. With selectable induction and direct connection frequencies that range from 98Hz to 200kHz, this transmitter is designed for versatility and precision.
Key Features
Signal Direction (SD) Mode
This unique feature aids in the identification of the target line amidst multiple signals in congested areas, ensuring that you're tracking the right utility.
High-Quality Display
The 2-inch by 1-inch dot matrix display with LED backlighting offers a clear view of essential metrics such as output current, connection type, volts, resistance, frequency, volume, battery condition, and high voltage warnings.
Remote Operation
An optional Transmitter Link (Tx-Link) enables the remote operation of the transmitter from the receiver, with an impressive range of up to 300m or 985 feet.
Safety Measures
The device is housed in a rugged, ergonomic IP54 housing and is designed to protect against accidental connections to high voltages up to 240V.
Technical Specifications
Construction
High-impact ABS injection-molded housing ensures durability.
Weight and Dimensions
The device weighs 9.9 lbs and has dimensions of 13.1in(L) x 7.2in(W) x 7.3in(H).
Battery Options
It comes with 12 x D cell alkaline batteries, with an optional Li-ion rechargeable battery available.
Operating Modes
The transmitter supports Induction mode, Direct connection mode, and Clamp mode, offering flexibility for various locating tasks.
Output Protection
The device is protected against accidental momentary connections to voltages up to 240V AC.
Accessories and Compatibility
Transmitter Link
Optional for remote operation.
Rechargeable Battery
Optional Li-ion rechargeable battery for extended use.
DC Power Lead
For alternative external power sources.
Compatible Receivers
The transmitter is compatible with vLoc2 receiver series, vLoc3-Pro, vLoc3-ML, and vLoc3-9800.
With its advanced features and robust construction, the Loc3 Series 10-Watt broadband transmitter is the ultimate tool for all your utility locating needs.
Specification Category | Details |
---|---|
Construction | High impact ABS injection molded housing |
Weight and Dimensions | 9.9 lbs, 13.1in(L) x 7.2in(W) x 7.3in(H) |
Display | 2.4in x 1.3in (60mm x 32mm) Monochrome-dot-matrix graphic LCD display with LED backlight |
Environmental Protection | IP54 and NEMA 4 |
Battery Options | Supplied with 12 x D cell alkaline batteries; Optional Li-ion rechargeable battery tray with charger |
Battery Life | Alkaline: 1 watt - 25 hours, 5 watt - 6 hours, 10 watt - 4 hours; Li-ion (Rechargeable): 1 watt - 50 hours, 5 watt - 10 hours, 10 watt - 6 hours |
Operating Modes | Induction mode, Direct connection mode, Clamp mode |
Output Protection | Protected against accidental momentary connection to up to 240V AC |
Operating Frequencies | Induction - Available frequencies between 98Hz and 200kHz; Direct Connection - Available frequencies between 98Hz and 200kHz; Clamp - Frequencies between 8kHz to 131kHz |

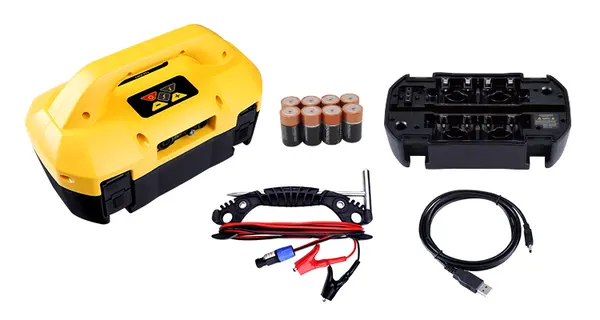

- Loc3-10Tx 10-Watt Transmitter
- Alkaline battery tray
- Ground stake
- Direct connection lead
- Mini-USB cable
