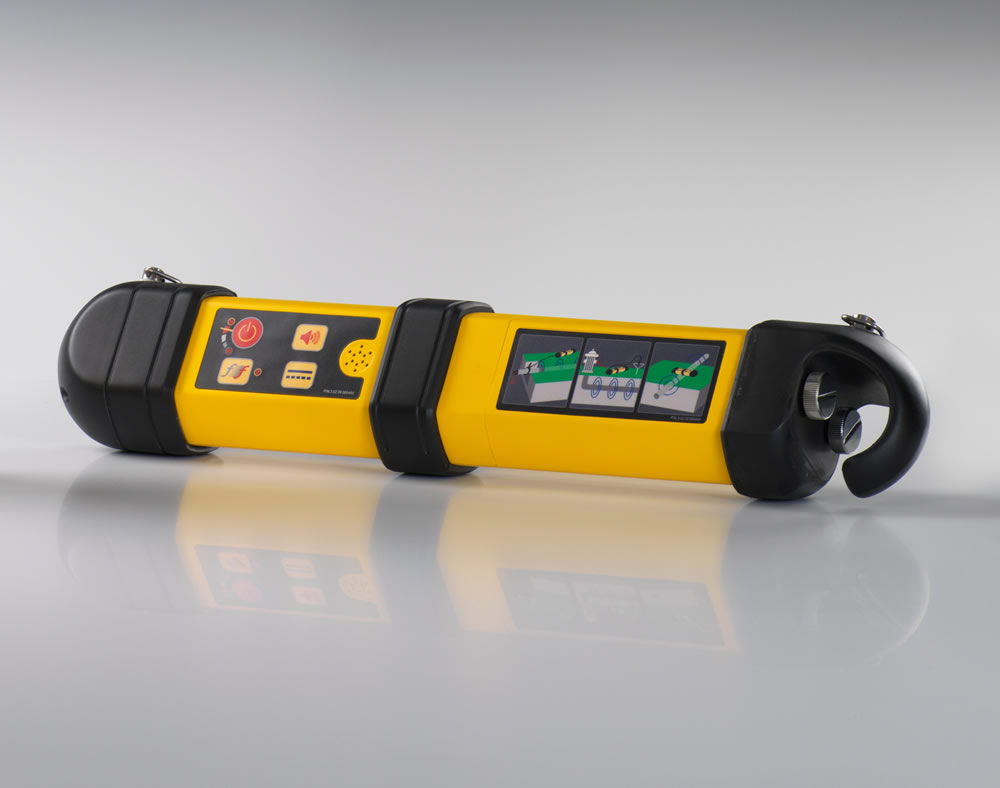

Vivax vScan 1 Watt Transmitter | 33kHz & 131kHz Dual-Frequency Signal Generator

The Vivax vScan 1 Watt Transmitter is an essential signal generator engineered for seamless integration with the Vivax vScan Receiver. Designed to tackle challenging locating scenarios, such as damaged cables or high-impedance environments, this unit ensures technical professionals maintain a clear, detectable signal. It offers a robust 1 Watt output power through direct connection and the capability to transmit dual frequencies simultaneously for enhanced accuracy.

How does the vScan Transmitter handle low-signal cables?

When buried utilities emit insufficient natural signals, the vScan Transmitter generates its own robust tracing signal to enable detection. It transmits 33kHz and 131kHz simultaneously, allowing precision tools like the vLoc3-Pro Receiver to identify utility positions effortlessly.

What are the available signal application modes?

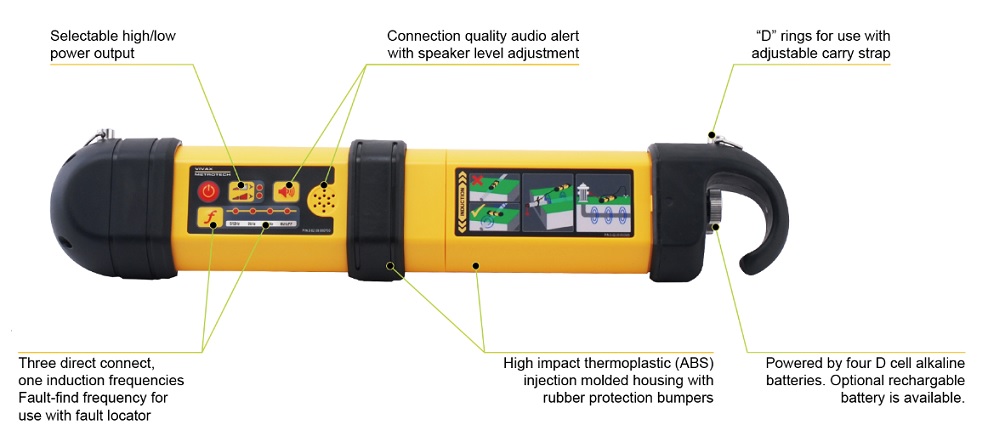

Users can apply signals through Direct Connection for maximum power, 33kHz Induction for non-contact application, or via an optional inductive clamp. These multiple connection options ensure compatibility with various cable dimensions and surface access restrictions.

What frequencies are supported by this 1W transmitter?

The unit is engineered to produce a 33kHz signal, highly effective for pipe and cable locating, alongside a 131kHz signal. This dual-frequency capability improves utility penetration and provides the flexibility required for complex infrastructure surveys.

Compatible Accessories

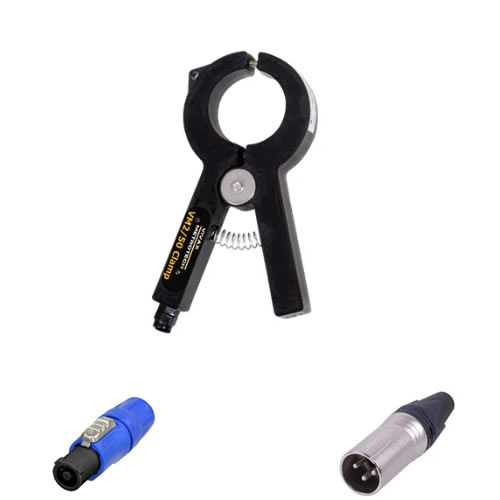

• For small utilities, utilize the Vivax 50mm Clamp.

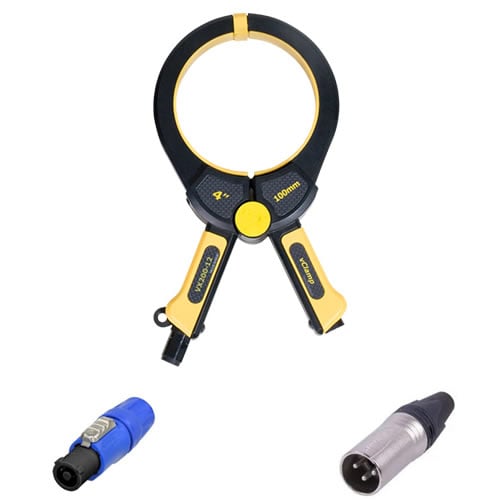

• Standard utility tracing is supported by the Vivax 100mm Clamp.

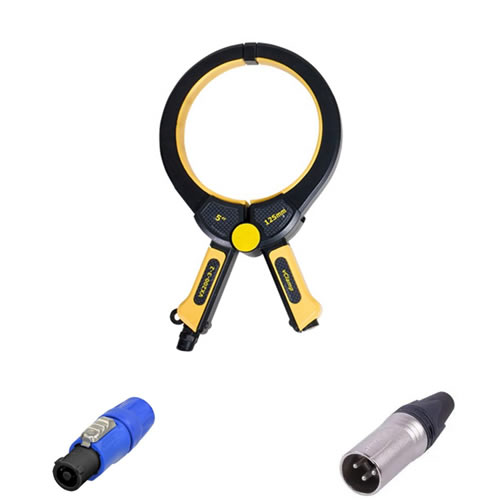

• Large diameter pipes require the Vivax 125mm Clamp.
• Ensure safe transport with the Vivax vScan Bag.
