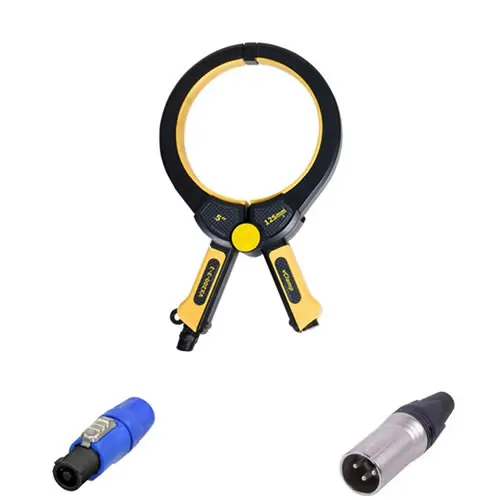

Vivax vLoc 5" Transmitter Clamp | 125mm Utility Signal Induction | ABS Housing
You save £32.00 (11%)
The Vivax vLoc 5" Transmitter Clamp is a precision-engineered tool designed for professional utility detection and signal transmission. Encased in a robust, high-impact ABS injection-molded housing, this clamp is built to withstand rigorous fieldwork while maintaining signal integrity. It is specifically designed to accommodate utilities up to 5 inches (125mm) in diameter, providing a versatile solution for a variety of subsurface mapping tasks.
What are the primary applications of the Vivax 5" Transmitter Clamp?
This clamp is used to safely apply a locating signal to a specific cable or pipe by wrapping around the utility, making it ideal for signal induction on larger lines. It is rated for utilities up to 125mm in diameter, ensuring compatibility with a wide array of industrial pipes and cables.
What is the build quality and durability of this vLoc accessory?
Constructed from high-impact ABS, the housing is designed for maximum endurance in challenging field environments. It features a total weight of 1.76lbs (0.80kg) and includes a 4m lead for convenient connection to the transmitter.
How does the clamp design facilitate field operations?
The clamp balances portability with capability, featuring dimensions of 10.6in L x 6.7in W x 1.6in H. This ergonomic profile allows for easy transport while providing enough internal clearance for 5-inch utilities, ensuring precision and reliability for utility professionals.
| SKU | 1.200.03.00005 |
| Manufacturer | Vivax-Metrotech |
| Maximum Utility Diameter | 5 inches (125mm) |
| Housing Material | High-impact ABS injection-molded |
| Lead Length | 4m (13.12 feet) |
| Weight | 1.76lbs (0.80kg) |
| Dimensions | 10.6in L x 6.7in W x 1.6in H (270mm x 170mm x 40mm) |
Compatible Accessories
- For larger or irregular utilities, consider the Vivax vLoc 18" Flexible Transmitter Clamp.
- For smaller utility lines, the Vivax vLoc 4" Transmitter Clamp or the Vivax vLoc 2" Transmitter Clamp are available.
- This clamp integrates seamlessly with the Loc3 Series 10-Watt Transmitter for professional-grade signal output.
- Compatible with precision receivers such as the vLoc3-Pro Receiver.
