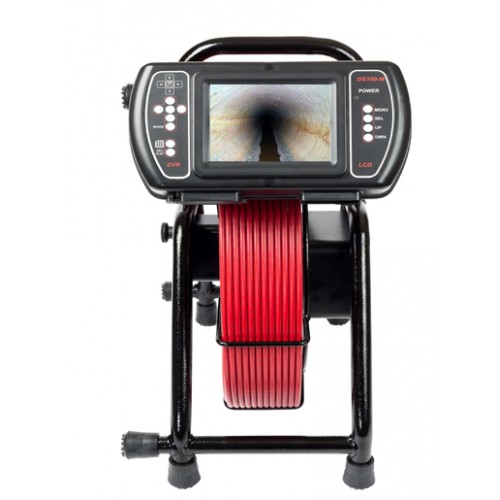

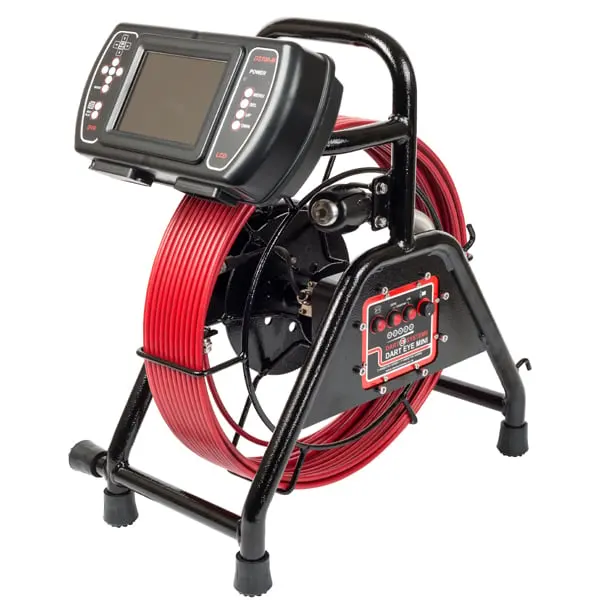

Dart Systems Mini DartEye S/L | 26mm Self-Leveling Drain Camera | 30m Range

The Mini DartEye S/L represents a significant advancement in compact drain inspection technology, specifically engineered for pipes ranging from 38mm (1 1/2") to 100mm (4"). This portable diagnostic system combines a 26mm stainless steel camera head with high-impact Sapphire Lens technology to ensure durability in harsh underground environments. The integrated DS100 Monitor provides a dedicated 5" TFT LCD display protected by a 5mm polycarbonate cover for maximum field resilience.

What pipe sizes are compatible with the Mini DartEye system?

This system is optimized for precision inspection in pipe diameters between 1.5 inches and 4 inches. Its flexible 30m cable allows for thorough residential and light commercial diagnostics, with 45m lengths available upon request.

How does the self-leveling camera head function?

The 26mm self-leveling head automatically adjusts its internal orientation as the rod moves through the pipe, ensuring that on-screen visuals remain upright and clear. This technology eliminates image rotation confusion and provides 6 adjustable ultra-bright LEDs for optimal illumination.

What are the primary power and storage specifications?

The system is powered by a high-capacity Lithium-Ion battery providing 7 hours of runtime, or via a mains power option for continuous use. Data is recorded directly to a 32GB SD Card, and an AV Out socket allows for external monitor connections.

• For temporary projects, consider the Hire Mini DartEye 30m System.
• For advanced full-size inspections, view the Dart DX Self-Levelling System.
• To track the path of the pushrod from above ground, use the Dart Flexitrace 4.5mm.
• Standard maintenance is supported by the Dart DS100 Monitor control interface.
