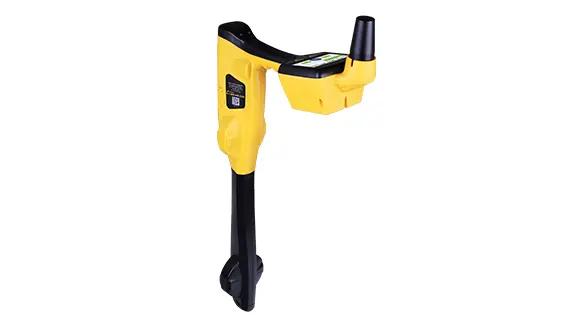

Vivax Metrotech vLoc3 RTK-Pro | Precision Utility Receiver | RTK GNSS Mapping

The Vivax vLoc3 RTK-Pro Receiver is a pioneering utility locating tool that integrates high-precision RTK GNSS accuracy with advanced mapping capabilities. Equipped with an internal 4G LTE cellular module, it connects to NTRIP RTK casters to provide RTCM 3 corrections, ensuring survey-grade utility location data for professionals requiring precise geographical alignment.

How does the vLoc3 RTK-Pro achieve survey-grade accuracy?

The receiver utilizes a fully-integrated RTK GNSS system and an internal cellular module with 4G LTE to connect to NTRIP RTK casters. This configuration delivers RTCM 3 corrections for high-precision mapping and superior utility data confirmation in the field.

What locating modes are supported by the vLoc3 RTK-Pro?

This system features eight passive modes, a specialized fault find mode, and Signal Direction (SD) for identifying outgoing current. It supports a broad frequency range from 98Hz to 200 kHz, allowing the operator to adapt to diverse utility types and complex underground environments.

How does this receiver improve field efficiency and data management?

Designed for one-hand locating and mapping, the unit features an electronic spirit level to ensure consistent data storage accuracy. All field data is automatically sent to cloud-based storage for immediate review and can be exported to external mapping programs or retained in the onboard storage.

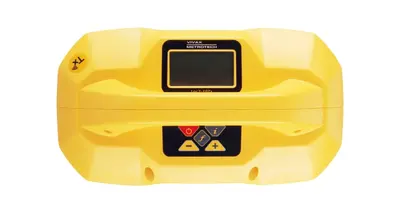

• Extend your signal reach by pairing with the Loc3 Series 10-Watt Transmitter.

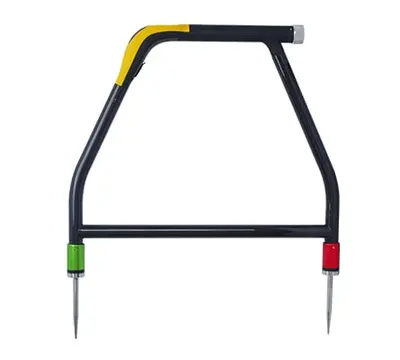

• Detect ground faults and cable defects using the Vivax A-frame (vLoc3 series).
• Ensure continuous field operations with the vLoc3 Series Rechargeable Battery.
• Apply signals to large diameter pipes using the vLoc 5" Transmitter Clamp.
