- Warranty
- 12-month warranty
- Calibration
- 12-month calibration
- Condition
- Ex-Demo

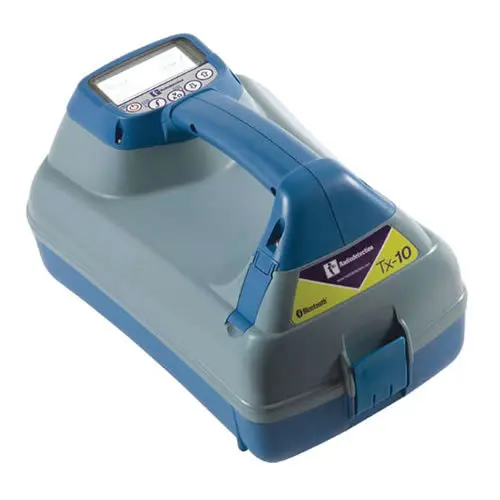

Ex-Demo Radiodetection Tx10B signal transmitter
Ex-Demo Radiodetection Tx10B signal transmitter with 10 W maximum output. Apply a locating signal by direct connection, compatible clamp or induction; receiver and accessory compatibility still apply. Supports iLOC remote control with a compatible paired locator. Includes a 12-month warranty and 12-month calibration.
What's in the Box
- Tx10B signal transmitter.
Put a usable signal onto the target utility
The Tx10B applies a traceable signal to a suitable buried cable or conductive pipe. Direct connection, clamp application and induction provide different ways to establish the signal for a compatible receiver.
Select the frequency and output for the connection and service. More transmitter power does not guarantee a locating distance or remove the need to investigate signal distortion.
Match the receiver and locating task
Use RD7200 for general precision locating or RD8200 when its broader frequency and Current Direction functions suit the task. Current Direction requires a CD-capable receiver and the matching CD signal.
Direct connection, clamp and fault finding
The transmitter connection kit brings together a direct lead, earth reel, earth stake and magnet. A 100 mm transmitter clamp provides clamp signal application. The A-Frame requires both receiver and transmitter to support Fault Find.
iLOC with a compatible receiver
The Tx10B supports iLOC remote control from a compatible paired locator, such as the RD8200 or RD8100. The receiver must support iLOC; the RD7200 does not provide this remote-control function.
Included warranty and calibration
A 12-month warranty and 12-month calibration are included as standard.
Questions about this offer
Is this a receiver?
No. This is a signal transmitter. A compatible receiver detects the signal along the utility; it is a separate instrument.
Does higher output guarantee a deeper locate?
No. Results depend on the utility, connection, frequency, ground conditions, interference and receiver. Use an appropriate output and compare the response.
Can it support A-Frame fault finding?
Yes, with the appropriate fault-find signal, a compatible fault-find receiver and the A-Frame. Current Direction also requires a CD-capable receiver.
What warranty and calibration are included?
A 12-month warranty and 12-month calibration are included as standard.
Tx10 transmitter connection guide
Radiodetection demonstrates fitting and removing Tx10 connection leads. Available controls and features vary by transmitter version; supplied accessories are listed above.
Watch on YouTube · Radiodetection
