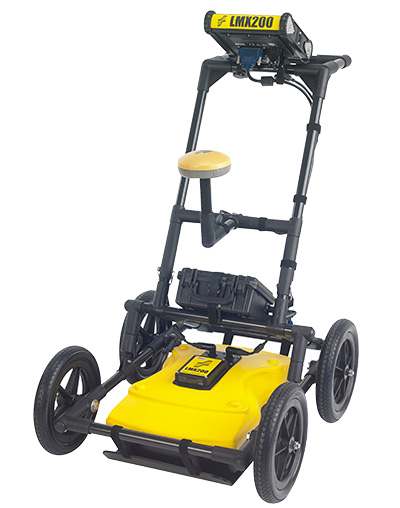

Radiodetection LMX200SG | Survey-Grade GPR with Integrated Geode GNSS

The Radiodetection LMX200SG elevates utility locating with an advanced GPR platform, integrating a single-frequency Geode GNSS receiver for 30cm RMS geo-referencing. This system is engineered to map metallic and non-metallic targets across diverse terrains, providing detailed insights into subsurface infrastructure at depths of up to 8m.

How accurate is the LMX200SG GNSS system?

The integrated Geode GNSS receiver provides 30cm RMS accuracy for precise geo-referencing of subsurface targets. For applications requiring extreme precision, an optional multi-frequency RTK upgrade is available to boost accuracy to 1cm RMS.

Can this system detect non-conductive utilities?

Yes, the LMX200SG is specifically designed to locate non-metallic pipes, concrete storm and sewer systems, and underground storage tanks. It utilizes a patented DynaTâ„¢ 250MHz ultra-wideband sensor for dynamic target enhancement of both metallic and non-conductive materials.

Is the LMX200SG suitable for harsh field environments?

The system is IP65-rated for durability and features a lightweight, metal-free fiberglass cart to prevent signal interference. It is built to operate reliably in temperatures ranging from -40°C to +50°C.

• Analyze and visualize data with the EKKO_Project V6 Core Software Bundle.
• Generate depth slices and GIS reports using the EKKO_Project V6 Reveal Software Bundle.
• Protect your equipment during transport with the ATA Shipping Case.
• Navigate rough terrain using the Large Wheel Set.
• Maintain field readiness with a comprehensive LMX Spare Parts Kit.
