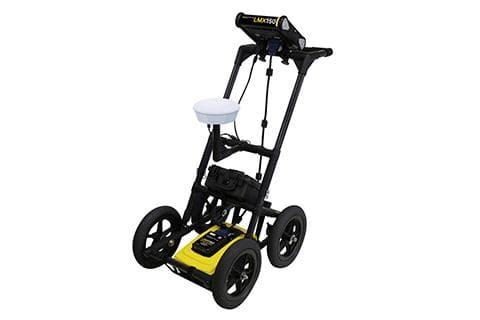

Radiodetection LMX150SG with RTK System | Survey-Grade GPR | 1cm RMS Precision

The Radiodetection LMX150SG with RTK System is a survey-grade Ground Penetrating Radar (GPR) solution that combines high-resolution FINDAR imaging with centimeter-level positioning accuracy. Utilizing a 500MHz high-resolution antenna, this system enables precision mapping of subsurface targets up to 3 meters (10ft) deep while ensuring 1cm RMS horizontal and vertical accuracy through integrated multi-frequency Geode GNSS receiver and RTK corrections.

How does the RTK system improve utility mapping accuracy?

The integrated multi-frequency (L1/L2/L5) Geode GNSS receiver utilizes RTK corrections to achieve 1cm RMS accuracy across diverse terrains. This allows for unmatched precision in geo-referencing critical infrastructure, supported by NTRIP and ATLAS satellite corrections for superior reliability in obstructed areas.

What types of underground targets can the LMX150SG detect?

The 500MHz antenna uses ultra-wideband technology to detect both metallic and non-metallic targets, including plastic pipes, fiber optics, and buried evidence. It is capable of scanning up to 3 meters deep and storing up to 230 km of high-resolution data for detailed analysis.

Can the LMX150SG GPR data be integrated into GIS or CAD software?

Yes, the LMX150SG is fully compatible with EKKO_Project software for creating 3D visualizations and geo-referenced GeoTIFF exports. This ensures seamless integration into GIS and CAD platforms for comprehensive reporting and data interpretation.

• Analyze and visualize your surveys with the EKKO_Project V6 Core Software Bundle.
• Protect your investment during transit with the Radiodetection LMX150 FINDAR ATA Shipping Case.
• Maintain antenna longevity using the Skid Plate Replacement for LMX150 FINDAR.
• Navigate and view real-time scans on the LMX150 FINDAR Display Unit.
