Leica EZiTEX T300XF | 3-Watt Signal Transmitter | Long-Range Utility Detection

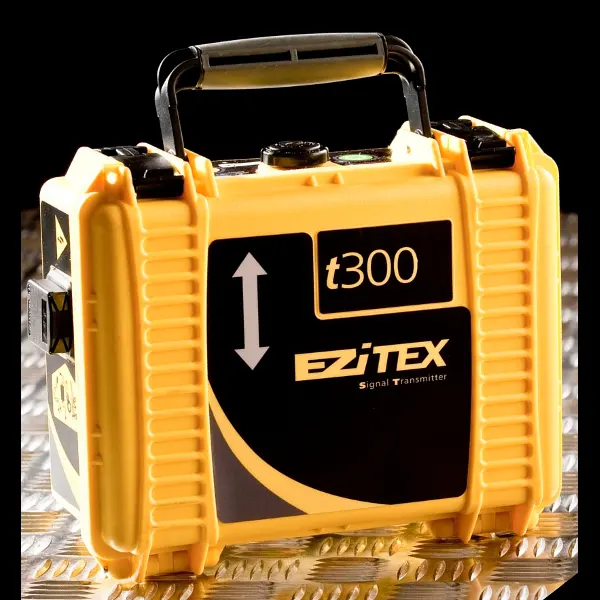

The refurbished Leica EZiTEX T300XF is a technically advanced signal transmitter designed to optimize the performance of the Leica xf-series cable avoidance tools. By delivering a maximum output of 3 watts, this unit provides significantly higher signal power than previous models, enabling operators to trace metallic services across much greater distances and in environments prone to high signal interference.

How does the 'xf' technology improve utility locating?

The 'xf' designation refers to two additional low frequencies that allow the operator to trace signals over longer distances with higher precision. This technology is critical for improving depth estimation when using a compatible locator and ensuring reliable detection of metallic services like gas pipes and water mains.

What are the key frequency and power specifications?

This transmitter features four adjustable output levels with a maximum capacity of 3 watts and a choice of three tracing signals. It supports a versatile range of frequencies including 33 kHz (default), 8 kHz, 640 Hz, and 512 Hz for comprehensive site utility mapping.

Is the EZiTEX T300XF built for harsh site conditions?

Engineered for durability, the unit features a robust weatherproof design with an environmental protection rating of IP65 with the lid open and IP67 with the lid closed. It remains portable at only 2.4kg and includes externally located audio-visual controls to maintain its waterproof integrity.

Accessories Section

• To maximize precision in varied utility depths, use the Leica Midi Sonde for non-metallic pipe tracing.
• For tracing in conduits, the Leica EZiROD 50 Flexible Tracing Rod provides a reliable signal along the entire length of the rod.
• Apply signal directly to metallic pipes with the Leica 4" Transmitter Clamp for safe, induction-based tracing.
• Ensure safe transport on-site with the dedicated Leica System Carry Bag.
