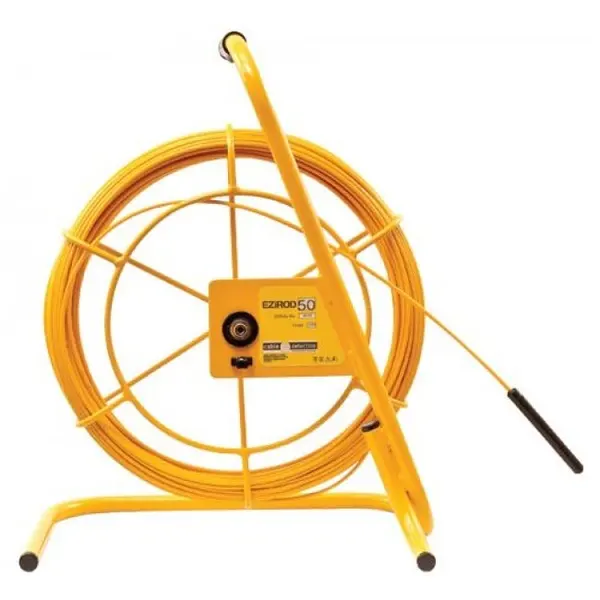

Leica EZiROD 50 | Flexible Tracing Rod | Path & Blockage Detection

The Leica EZiROD 50 is a specialized 50m flexible tracing rod designed to integrate with high-performance utility detection systems. By connecting to compatible signal transmitters, this rod allows operators to trace the path of plastic pipes, ducts, and non-metallic drains that do not naturally emit a signal, providing a robust solution for mapping sub-surface infrastructure.

How does the Leica EZiROD 50 locate non-metallic pipes?

The rod is inserted and pushed along the utility while receiving a signal from a connected transmitter, creating a detectable path. This enables the tracing of non-metallic utilities, such as plastic pipes, that otherwise could not be detected by standard locator sweeps.

What are the rod and sonde tip dimensions?

The EZiROD 50 is engineered with a slim 4.5mm rod diameter to maintain flexibility during navigation through tight bends. The integrated Sonde Tip has a diameter of 8mm to provide high-precision signal emission for pinpointing the exact location of sub-surface utilities.

Which operating modes does the EZiROD 50 support?

Operators can utilize Line Mode for tracing the continuous route of a duct or switch to Sonde Mode for pinpointing specific blockages. This dual functionality ensures comprehensive coverage for both infrastructure mapping and maintenance investigations.

• For signal generation, use the Leica DA220 or the Leica DA230.
• Pair with advanced locators like the Leica DD220 SMART or Leica DD230 SMART.
• If extended length is required, view the Leica EZiROD 80.
