Leica EZiCAT i750 | GPS & Data Logging Cable Locator | Integrated Depth Estimation
You save £875.00 (56%)

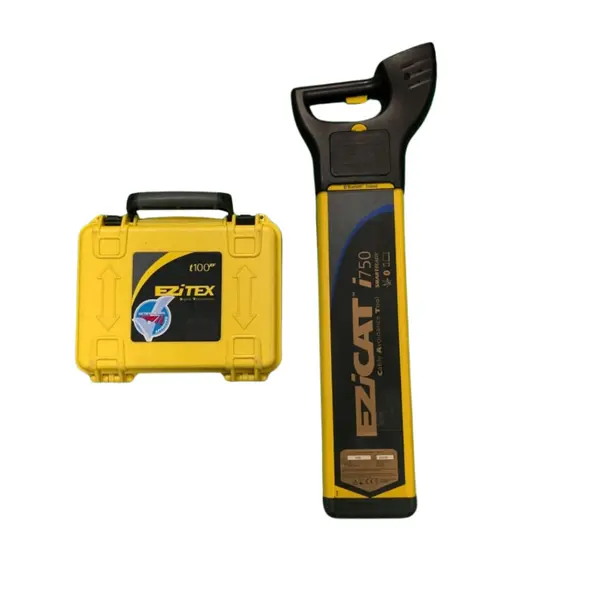

The Refurbished Leica EZiCAT i750 is a high-specification cable locator designed for professional utility detection and site safety management. Equipped with an integrated u-blox GPS chipset and 64MB internal memory, it provides traceability for where, when, and how excavation surveys are conducted. This unit features Automatic Pinpointing, which eliminates the need for manual sensitivity adjustments, ensuring the operator always uses the optimum detection settings for the specific environment.
How does the GPS and data logging improve site safety?
The integrated GPS technology records the geographical position of the survey, while the data logging capability stores usage patterns that can be analyzed via LOGiCAT software. This facilitates the identification of training needs and provides critical traceability documentation following a near miss or utility strike incident.
What utilities can the EZiCAT i750 detect and measure?
This locator is capable of detecting electricity cables, telecomms, and conductive pipes, as well as non-conductive utilities when paired with Leica accessories. When used with a signal transmitter, it provides depth estimation with a range of 0.3m to 3m and an accuracy of 10% in line or sonde mode.
What are the technical accuracy and environment specifications?
The EZiCAT i750 is built to an IP54 protection rating and offers a battery life of up to 40 hours of intermittent use. It supports detection in Power (50/60Hz), Radio (15kHz to 60kHz), and Transmitter (8kHz and 33kHz) modes, with a GPS positioning accuracy of 2.5m CEP.
| Detection Frequency Modes | Power 50/60 Hz, Radio 15 kHz to 60 kHz, Transmitter 8 kHz/33 kHz |
| Depth Estimation Range | 0.3m to 3m (accuracy 10%) |
| GPS Chipset | u-blox L1 frequency, C/A code |
| GPS Accuracy | Position 2.5m CEP, SBAS 2.0m CEP |
| Memory Size | 64 MB |
| Battery Type | 6 x AA alkaline (IEC LR6) |
| Battery Life | 40 hours intermittent use at 20°C |
| Protection Rating | Conforms to IP54 |
| Weight | 2.7kg including batteries |
| Dimensions | 760mm (H) x 85mm (D) x 250mm (W) |
Compatible Accessories
- For tracing non-conductive pipes, use the Leica EZiROD 50 Flexible Tracing Rod.
- To enhance detection capabilities in specific utility types, integrate the Leica Midi Sonde 8kHz and 33kHz.
- Ensure secure transport with the Leica System Carry Bag.
- For high-power signal applications, consider the Refurbished EZiTEX T300 Signal Transmitter.
